Product Description

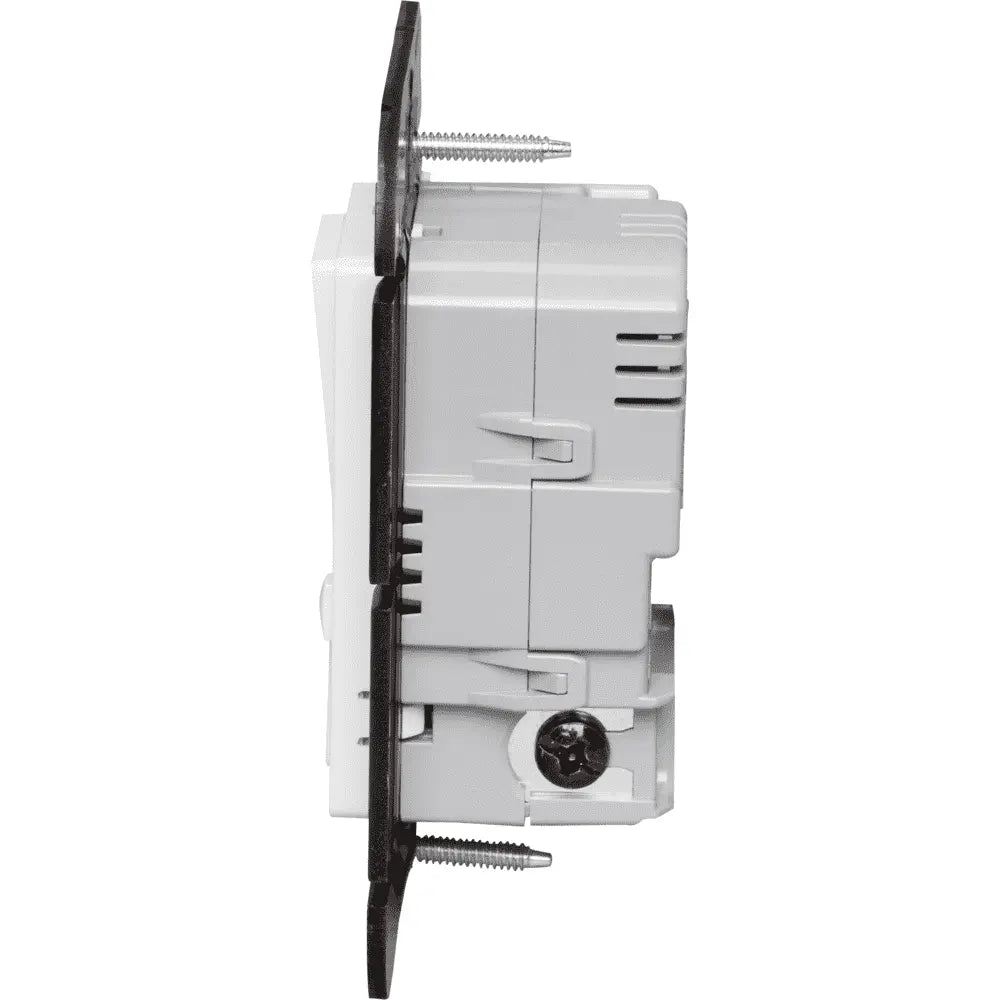

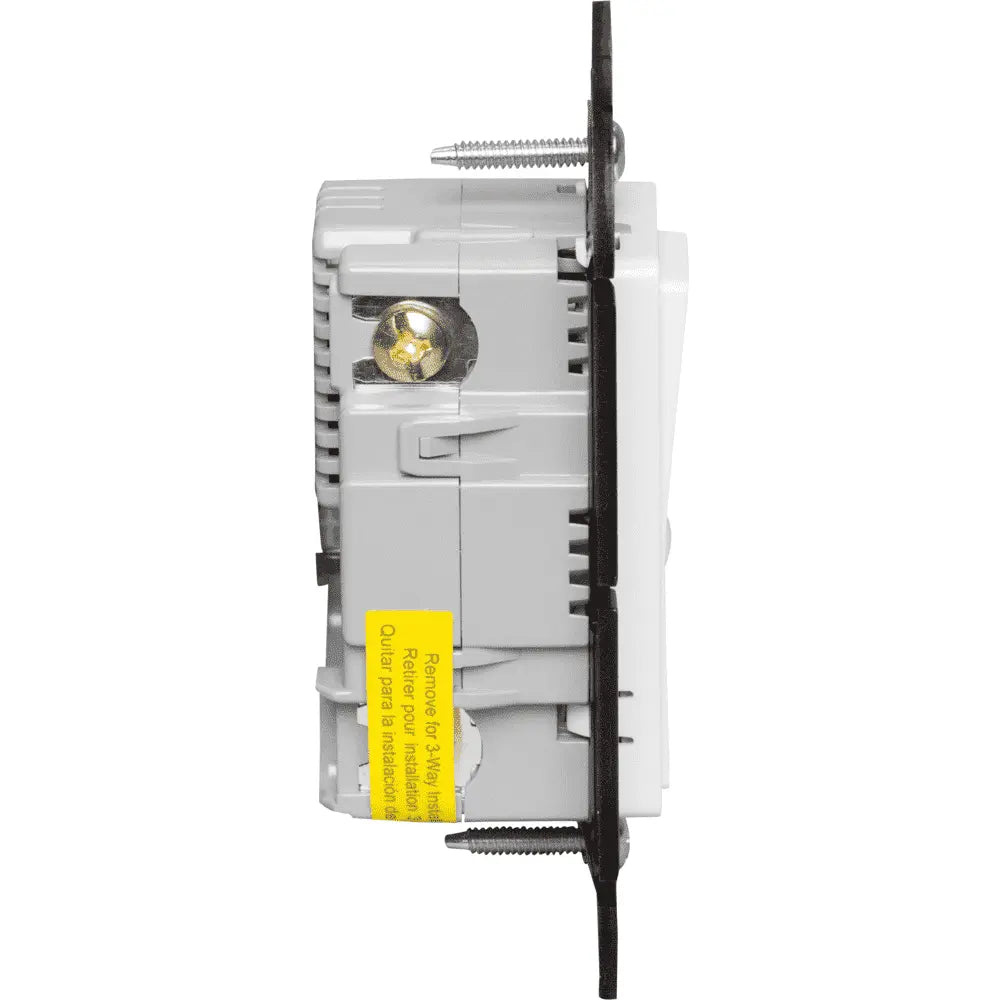

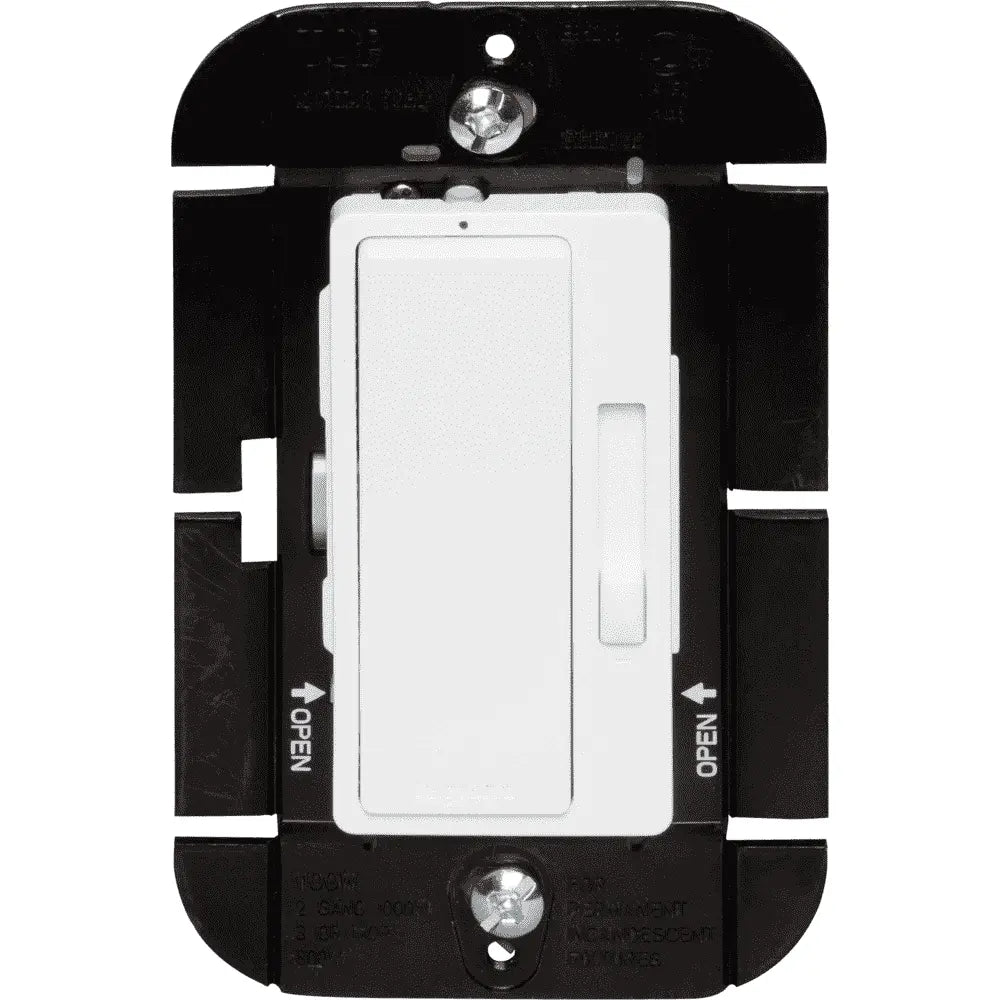

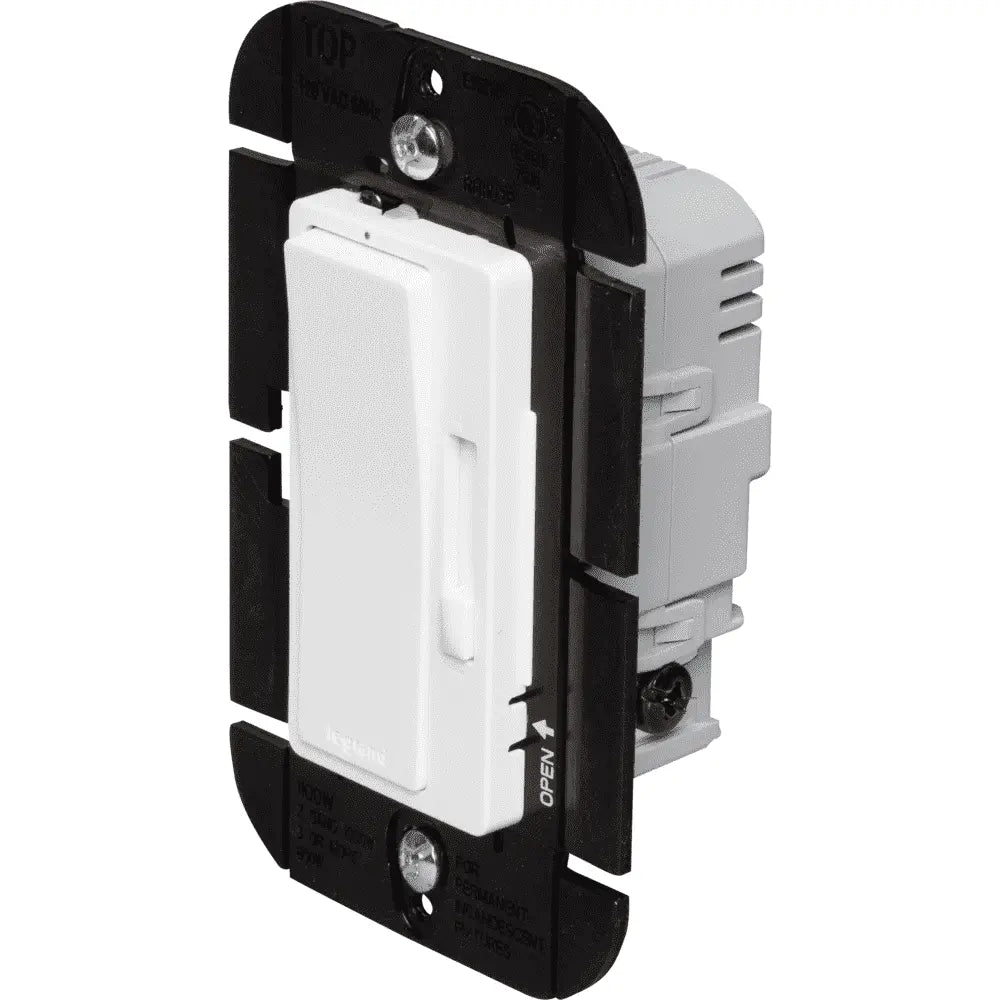

The PASS & SEYMOUR RH1103PTC radiant dimmer provides precise dimming control and exceptional style. Optimized for incandescent bulbs and fixtures, this dimmer is suitable for residential and light commercial wiring. It combines an on/off paddle switch with a separate slider for dimming control.
- Usable in both single-pole and 3-way applications.
- Features a low-profile paddle switch and separate ergonomic slider.
- Durable, high-impact resistant thermoplastic construction.
Product Highlights
This incandescent dimmer features a paddle switch with slider, suitable for single-pole and 3-way applications. It has a thermoplastic construction.
Product Information
Standard Information
-
Brand: PASS & SEYMOUR
-
Manufacturer Part Number: RH1103PTC
-
Country of Origin: China
Technical Specifications
-
Type: Incandescent Dimmer
-
Depth: 1.25 Inches
-
Width: 1.75 Inches
-
Height: 4.25 Inches
-
Wattage: 1100 Watts
-
Dimmable: Dimmable
-
Standard: CSA Listed, cULus, UL Listed
-
Connection: Screw terminal
-
Voltage Rating: 120 VAC
-
Amperage Rating: 15 Amperes
-
Number Of Poles: Single-Pole
-
Frequency Rating: 60 Hertz
-
Brand: Pass & Seymour
-
Style: Rocker
-
Action: Paddle/Slide
-
Actuator: Paddle switch with Slider
-
Material: Thermoplastic
-
Enclosure: Thermoplastic
-
Sub Brand: The Radiant®
-
Product UPC: 78500705327
-
Switch Type: Paddle
-
12-Digit UPC: 785007053272
-
Applications: For Residential Use
-
Power Rating: 1100 W
-
Mounting Type: Box
-
TC Connection: Screw Terminals
-
Certifications: CULUS
-
Connection Type: Screw Terminal
-
Number of Gangs: 1 Gang
-
Warranty Length: Limited Lifetime
-
Bulb Compatibility: Incandescent
-
Number of Switches: 1
-
Operating Temperature: 0 - 40 degrees C
-
Environmental Conditions: 0 - 95% Humidity
-
Finish: Matte
-
Indoor Outdoor: Indoor
-
Load Rating: 120V 1100W (Halogen), 120V 1100W (Incandescent)
-
Load Type: Incandescent, Halogen
-
Wire Size: 14-12 AWG
-
GTiN: 00785007053272
-
Size: 1.75"W x 4.25"H
-
Dimmer: Standard 120V
-
Total Wattage: 1100 watts
-
UL: UL
-
Listing Agencies / 3rd Party Agencies: cULus Listed
-
cULus Listed: Yes
