Product Description

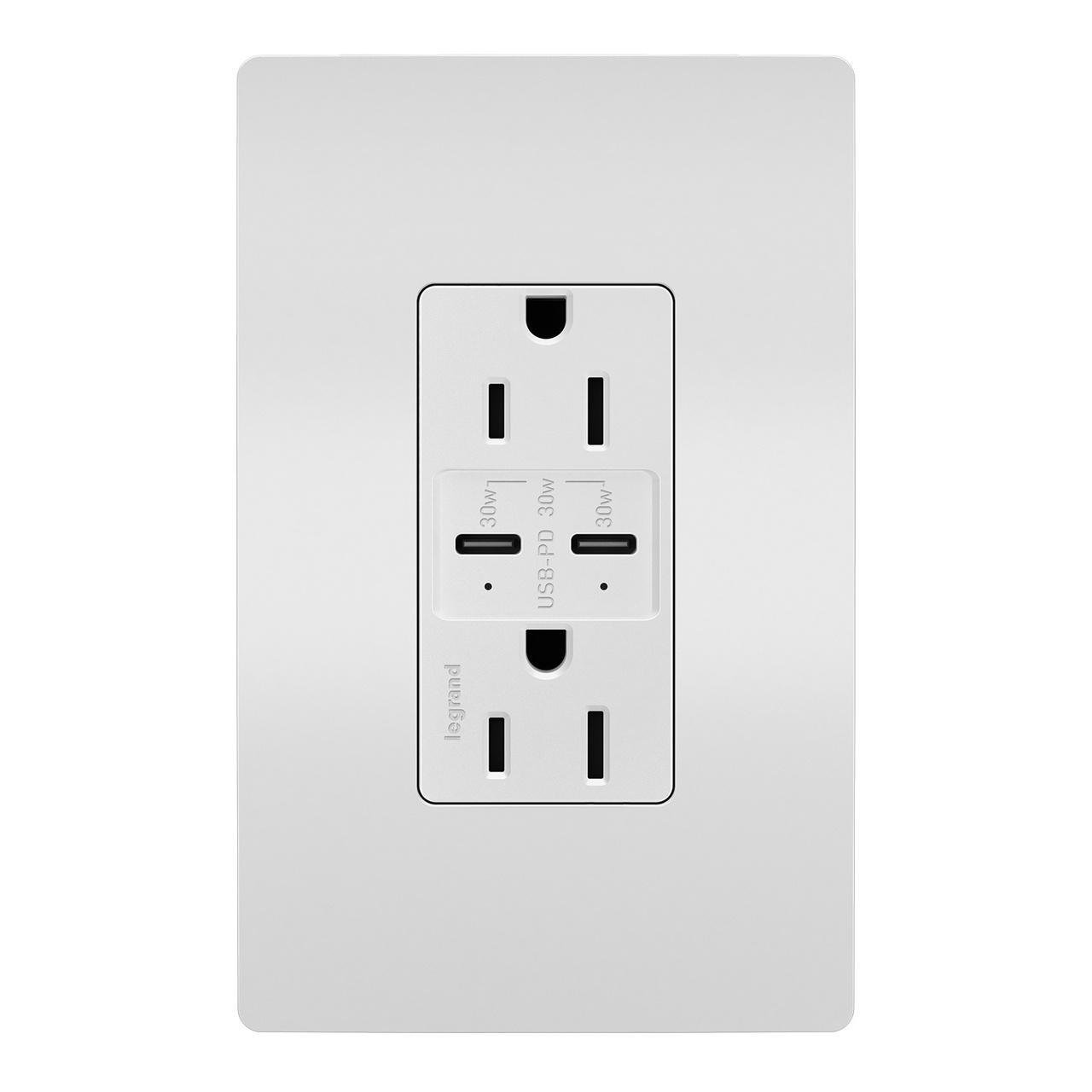

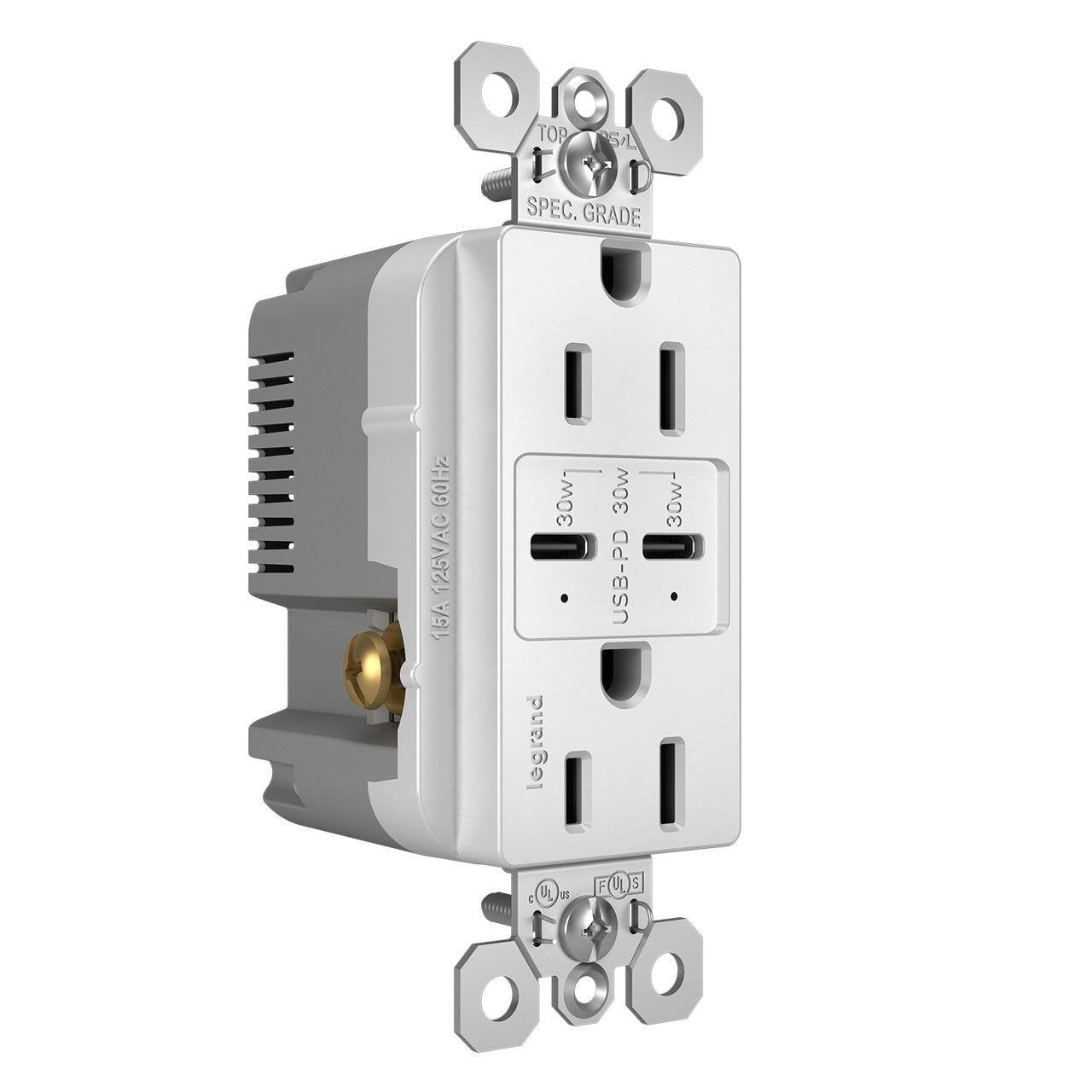

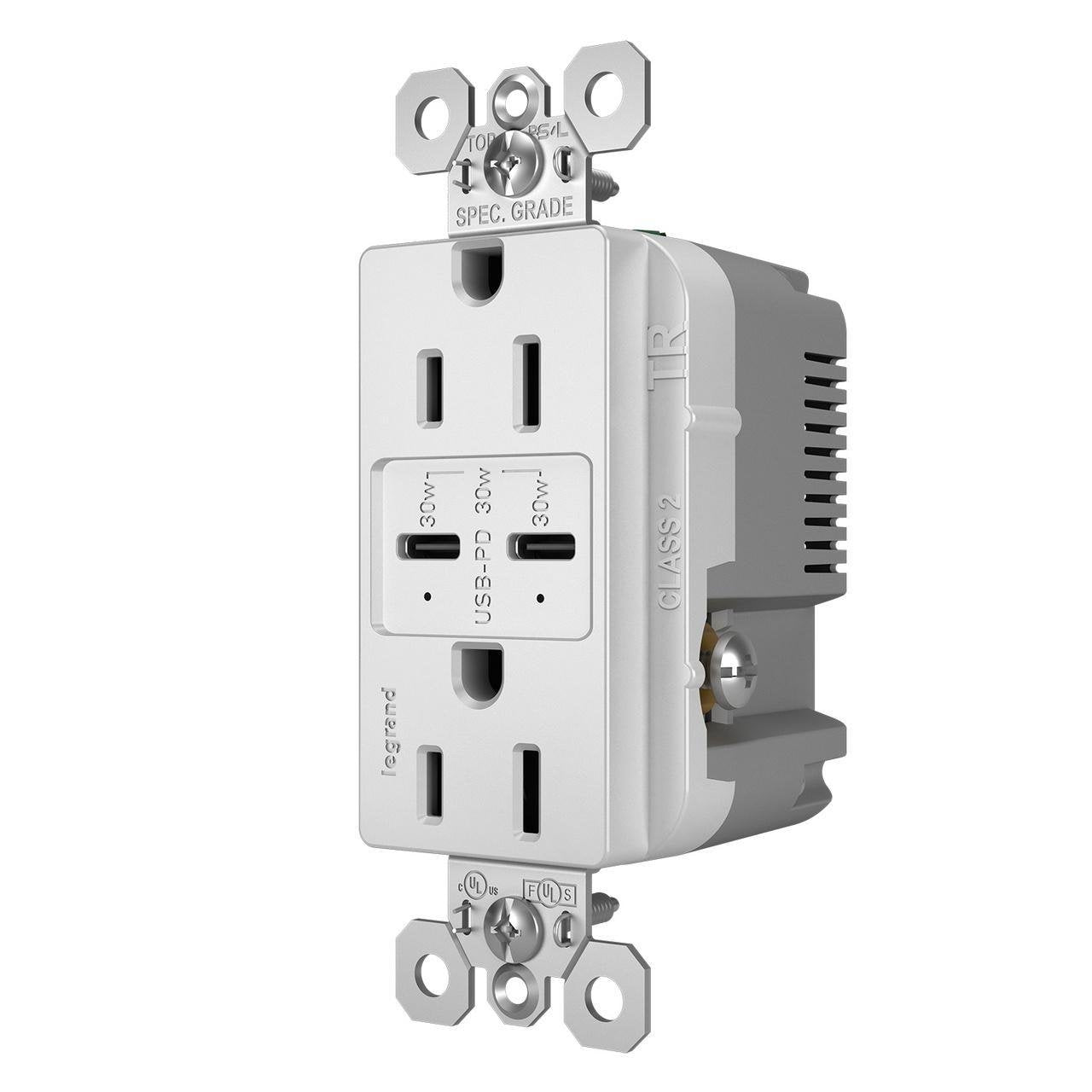

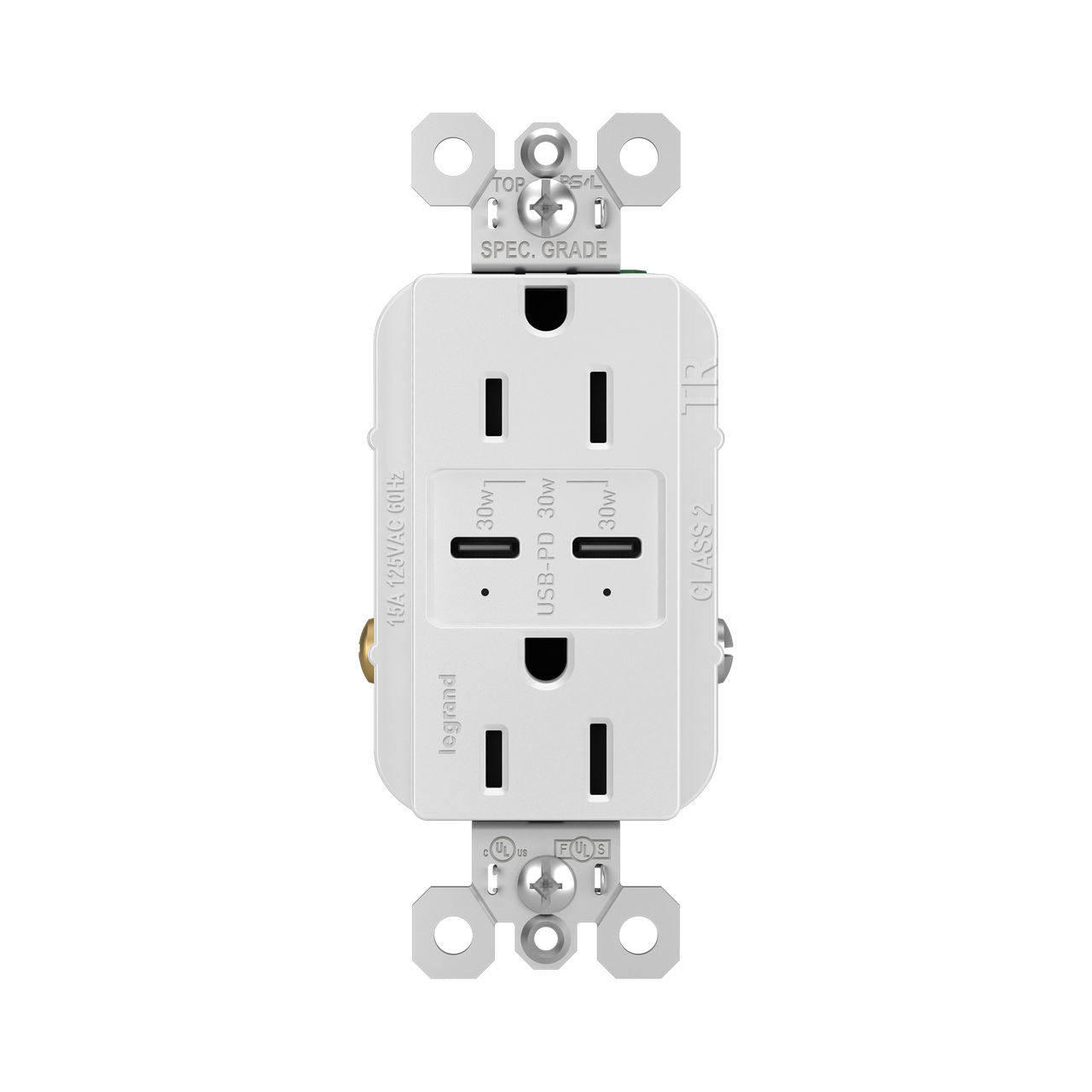

The Pass & Seymour R26USBPDW radiant 30W USB Outlet delivers 30 Watts of power through two built-in Type-C USB connections. This tamper-resistant outlet provides fast, future-proof in-wall charging, optimizing performance for Power Delivery-enabled devices. It easily replaces traditional outlets, offering intelligent charging with multi-layered overcurrent protection.
- Charges devices up to 2X faster with 6.0 amps and 30W of power courtesy of advanced Power Delivery.
- Outlet detects and delivers the precise amount of power needed to maximize charging speeds.
- Provides fast and convenient built-in charging through two future-proof USB Type-C ports.
Product Highlights
This outlet features intelligent charging, overcurrent protection, and a helpful indicator light for charging status.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Manufacturer Part Number: R26USBPDW
-
Country of Origin: China
Technical Specifications
-
Color: White
-
Finish: Satin
-
Application Sector: Hospitality, Multi-Dwelling Unit, Residential
-
Product Line: Pass & Seymour
-
Country Of Origin: China
-
Features: Indicator Lights, Power Delivery, USB-C Charging
-
Number of Receptacles: 2
-
Outlet Type: Tamper-Resistant, USB-Charging
-
UPC Number: 785007290073
-
Product Depth US: 1.35 in
-
Product Height US: 4.18 in
-
Product Width US: 1.693 in
-
cULus ListingNumber: E140596
-
cULus Listed: Yes
-
RoHS Compliant: Yes
-
Amperage: 15 A
-

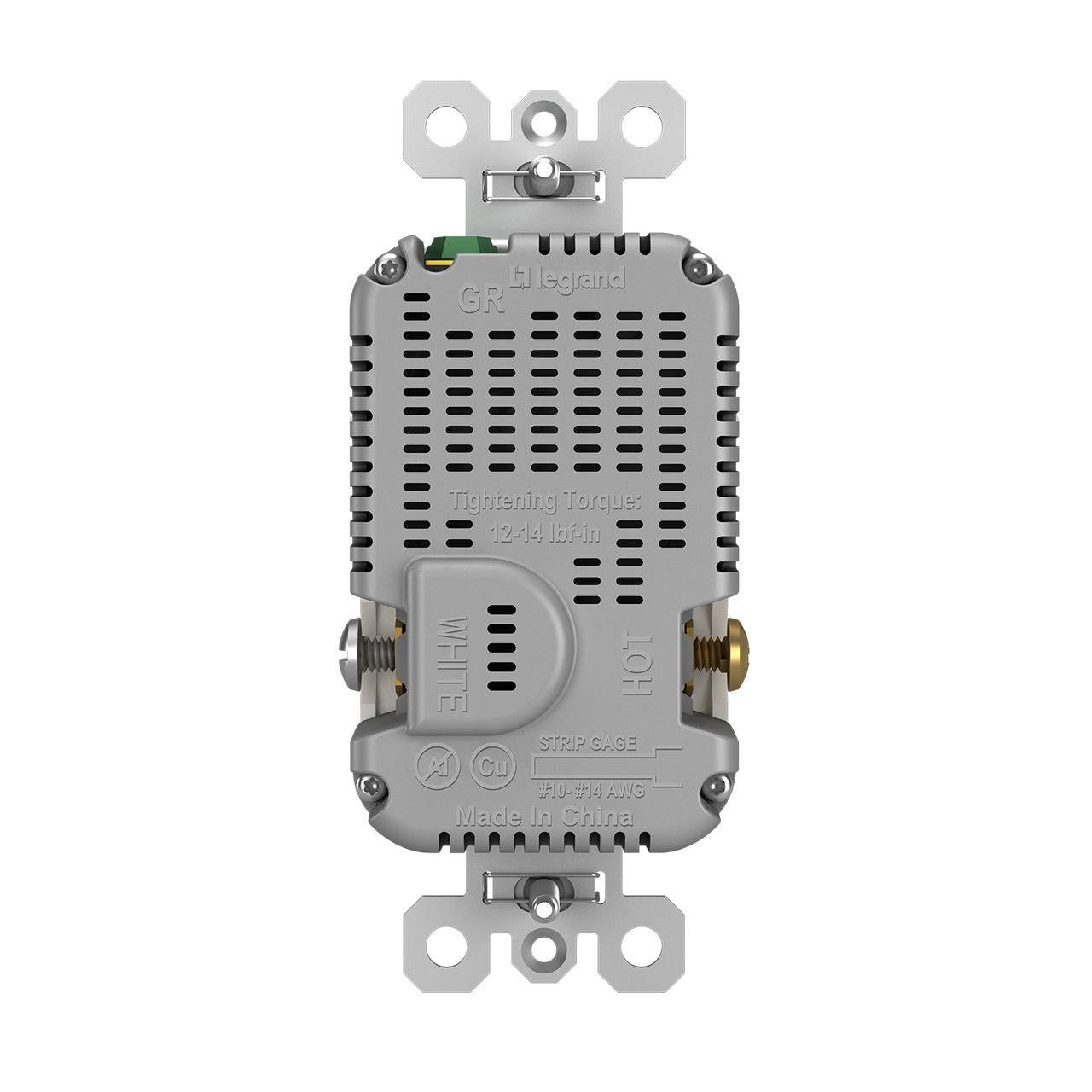

Connection Location: Back and Side
-
Wire Connection Type: Internal Pressure Plates, Screw Terminals
-
Environmental Conditions: 95% (relative humidity, non-condensing)
-
USB Amperage: 6 A
-
Indoor/Outdoor: Indoor
-
USB Wattage: 30 W
-
Mounting Type: Box
-
Number of Poles: Double Pole
-
Number of USBs: 2
-
Number of Wires: 3
-
Voltage: 15.0 V, 5.0 V, 9.0 V
-
AD Application: For Residential/Commercial
-
AD Brand (Description): Pass & Seymour
-
AD Country: USA
-
AD Invoice Description: RCPT & USB P 15A 125V WHITE TYPE-C 2 6A
-
AD Manufacturer (Description): Legrand
-
USB Type: Type-C
-
Electrical Ratings: 15 A, 125 V
-
Insulation: NEMA 5-15R
-
Series: radiant
-
Size: 4.18 in H x 1.693 in W x 1.35 in D
-
Type: Tamper-Resistant, Ultra Fast Plus
-
USB Quantity: 2
-
USB Rating: 6
-
Applications: For Residential, Commercial
-
Connection Type: USB Type C/C
-
Current: 15 Amp
-
Material: Polycarbonate
-
NEMA: 5-15R
-
Output Current: 6 A
-
Wattage: 30 Watt
-
Sub Brand: The Radiant
-
12-Digit UPC: 785007297683
-
Product UPC: 78500729768
-
Depth: 1.35 Inch
-
Certifications: RoHS Compliant, UL Listed, cULus Listed
-
Compatible Devices: All
-
Power Plug Type: No Plug
-
Connector Type: Plug-In
-
Total Power Outlets: 4
-
Material Type: Thermoplastic
-
Brand / Manufacturer: PASS & SEYMOUR
-
Amperage Rating: 15
-
Catalog Number: R26USBPDWCC6
-
Catalog / Class: USB Outlet
-
SKU: R26USBPDW
