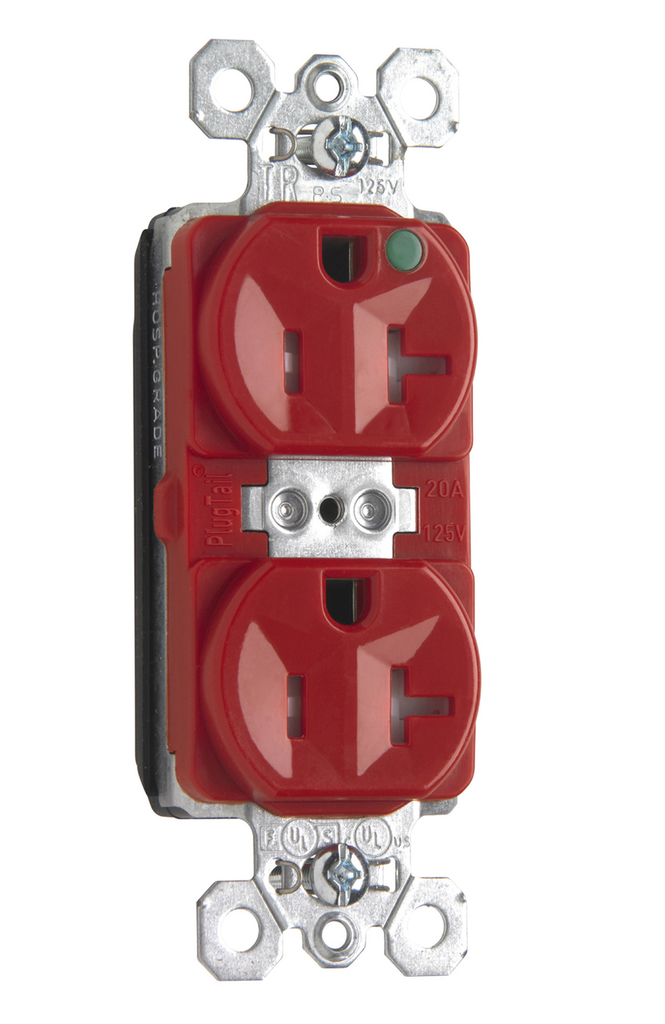

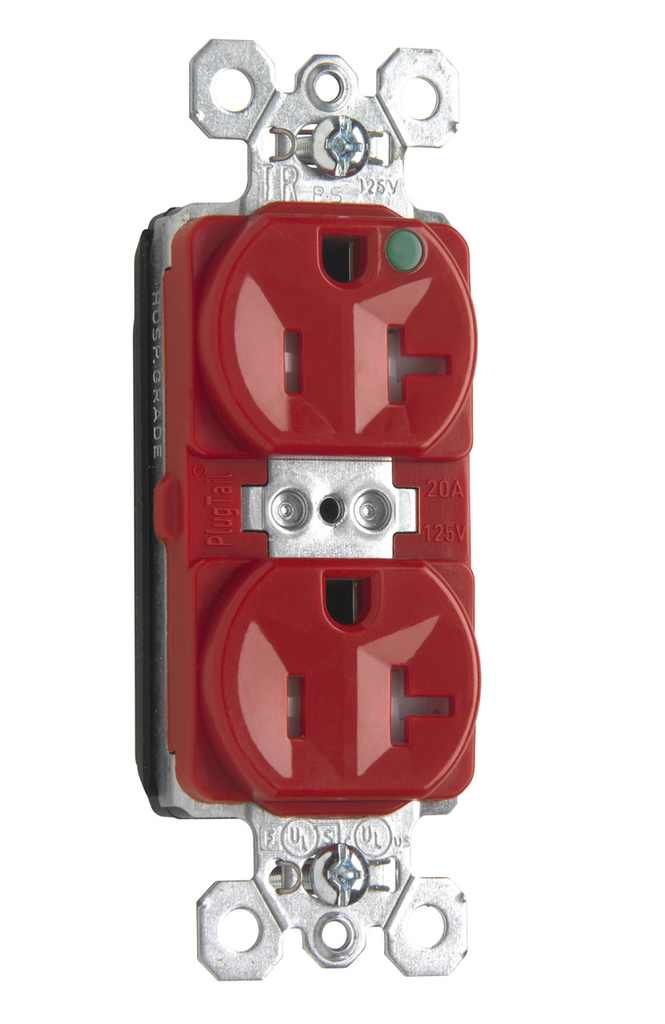

Pass & Seymour PTTR8300RED RECEPTACLE BL STR 125VAC 20A 2 3 R

Product Description

Pass & Seymour PTTR8300RED is a duplex tamper-resistant straight blade receptacle designed for reliable use in commercial and hospital settings. This receptacle operates at 125 VAC and supports a maximum current of 20 A. Made of durable nylon and designed for tough environments, it features back and side wire terminals for easy installation. The NEMA 5-20R rating makes it suitable for a variety of applications.

• Duplex tamper-resistant design
• Operates at 125 VAC and 20 A
• Durable nylon construction

Product Highlights

This product offers a dual mechanical shutter system, which helps prevent the insertion of foreign objects, enhancing safety and functionality.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• Type: Duplex Tamper-Resistant
• Grade: Commercial/Hospital
• NEMA Rating: NEMA 5-20R
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Material: Nylon
• Temperature Rating: -40 to 60 degrees C
• Dimensions: 1.5 in L x 0.625 in W x 3.281 in H
