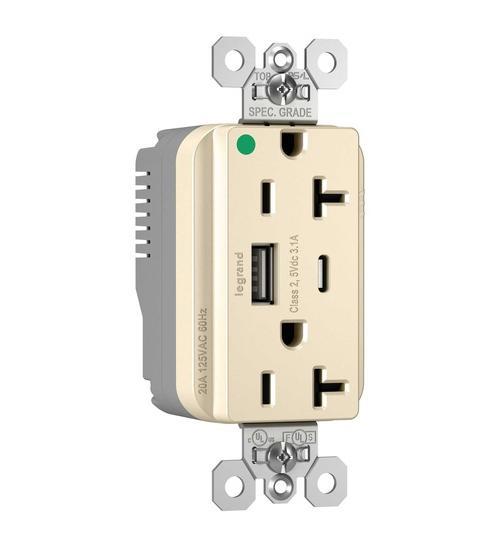

Pass & Seymour PTTR20HACUSBLA Plugtail 20A HG Hybrid AC USB Duplex LA

Product Description

The Pass & Seymour PTTR20HACUSBLA Plugtail 20A HG Hybrid AC USB Duplex LA provides mobile charging without needing a bulky AC adapter. Ideal for commercial applications, it features two UL Fed Spec AC receptacles and two USB charging ports—one Type-A and one Type-C. A 15.5W power supply efficiently charges mobile phones and tablets.

• AC receptacles are tamper resistant as standard : patented shutter system prevents improper insertion of foreign objects
• Extra heavy-duty 0.050'' thick brass mounting strap for superior performance and durability.
• Triple-wipe, brass line contacts for 20A commercial applications

Product Highlights

This hospital-grade USB charging receptacle is perfect for commercial and healthcare environments. It offers convenient mobile charging with added safety features like tamper-resistant AC receptacles.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PTTR20HACUSBLA
• Country of Origin: China

Technical Specifications

• UNSPSC Code: 39120000
• Brand: Pass & Seymour
• Manufacturer Part Number: PTTR20HACUSBLA
• Amperage: 20 Amp
• Applications: Commercial,Healthcare
• Grade: Hospital
• Indoor Outdoor: Indoor
• Material: Thermoplastic
• NEMA: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Outlet Type: USB-Charging
• Type: Duplex
• Voltage: 125 Volt
• Sub Brand: adorne
• Product UPC: 78500711342
• Depth: 1.45 Inch
• Height: 2.677 Inch
• Width: 1.693 in
• Certifications: CULUS,FEDSPEC
• Item Name: USB Charger Receptacle
• Amperage Rating: 20 A
• NEMA Configuration: 5-20R
• Standards: cULus Federal Specification Listed
• USB Type: Type-A USB 2.0/C USB
• USB Quantity: 2
• USB: 3.1 A at 5 VDC
• Operating Temperature: -40 to 60 deg C
• Series: PlugTail
