Pass & Seymour pttr20hacusbi plugtail hospital grade usb outlet 20a

Product Description

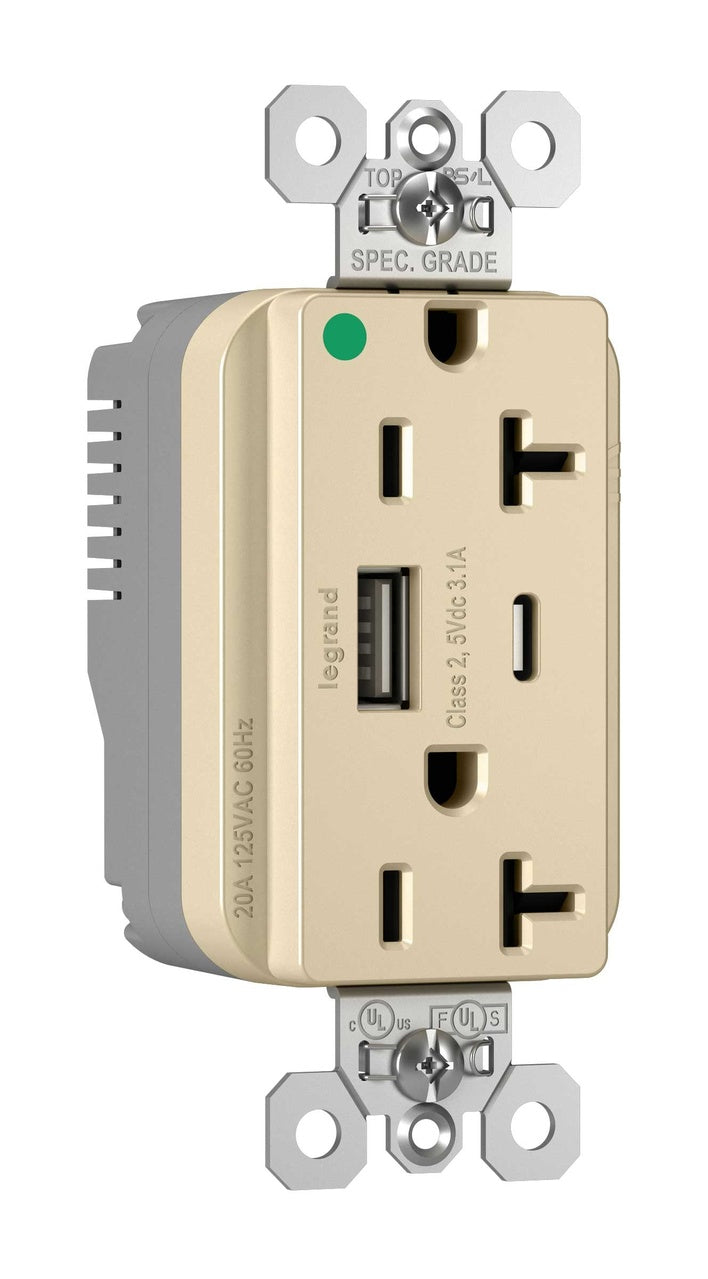

The Pass & Seymour PTTR20HACUSBI is a PlugTail® hospital grade USB charging receptacle that provides mobile charging without needing a bulky AC adapter. Equipped with two UL Fed Spec AC receptacles and two USB charging ports, one Type-A and one Type-C, it delivers 15.5W for charging mobile devices. The PlugTail® termination ensures secure installation.

• AC receptacles are tamper resistant with a patented shutter system.
• Features an extra heavy-duty 0.050'' thick brass mounting strap for superior performance and durability.
• Includes a 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices.

Product Highlights

This hospital-grade USB outlet is ideal for commercial and healthcare settings, offering convenient and safe mobile device charging.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PTTR20HACUSBI
• Country of Origin: China

Technical Specifications

• Color: Ivory
• Finish: Matte
• Application Sector: Commercial, Healthcare
• Product Line: Pass & Seymour
• Country Of Origin: China
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: USB-Charging
• Standard: FEDSPEC
• UPC Number: 785007113419
• Product Depth US: 1.45 in
• Product Height US: 2.677 in
• Product Width US: 1.693 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back Only
• Wire Connection Type: PlugTail
• USB Amperage: 3.1 A
• Indoor/Outdoor: Indoor
• USB Wattage: 15 W
• Is Tamper-Resistant: Yes
• Number of Poles: Double Pole
• Number of USBs: 2
• Number of Wires: 3
• Voltage: 125.0 V
• Product Range: PlugTail Series
• Current Rating: 20A
• Voltage Rating VAC: 125V
• USB Connector Type: USB Type A, USB Type C
• No. of Outlets: 2 Outlet
• USB Type: Type-A USB 2.0/C USB
• USB Quantity: 2
• USB: 3.1 A at 5 VDC
• Grade: Hospital Grade
• Material: Thermoplastic
• Operating Temperature: -40 to 60 deg C
• Series: PlugTail
• Depth: 1.45 in
• Height: 2.677 in
• Width: 1.693 in
