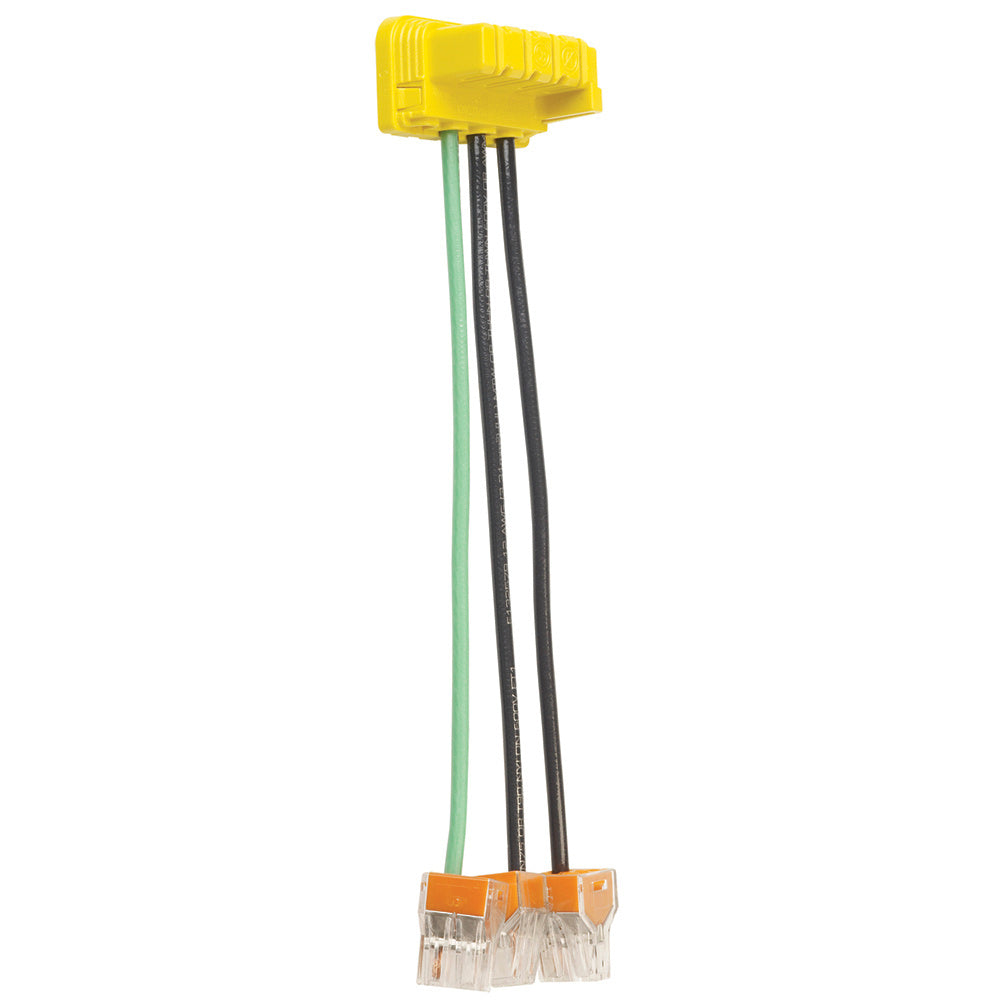

Pass & Seymour PTS6S-TR3BP PlugTail Switch, Right Angle with IDEAL Connector, 6-inch

Product Description

The Pass & Seymour PTS6S-TR3BP PlugTail switch features a right-angle design with an IDEAL connector and 6-inch stranded THHN12. The ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger-safe housing. Pre-stripped connector leads fasten to conductors, easier than standard pigtails.

• Available in any wire length up to 25 inches
• Large crimped and welded brass contacts
• Audible snapping latch assures connection, allows release

Product Highlights

This Pass & Seymour PlugTail switch is suitable for commercial and industrial applications. It features stranded conductors and a snap-in mounting type.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: PTS6S-TR3BP
• Country of Origin: Mexico

Technical Specifications

• Type: Plug Tail Connector
• Material: Thermoplastic
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Features: IDEAL Connector, Stranded Conductors
• Wall Plate Included: No
• UPC Number: 785007001167
• cULus Listed: Yes
• Connection Location: Back Only
• Requires Neutral Wire: No
• Wire Connection Type: Push
• Indoor/Outdoor: Indoor
• Mounting Type: Snap-in
• Number of Gangs: 1
• Number of Poles: Single Pole
• Terminal Accommodation: #14 AWG - #12 AWG
• Voltage: 120.0 V
• Size: 6 in L
• Suitable For Use With: Single Pole Switch
• Voltage Rating: 120/277 VAC
