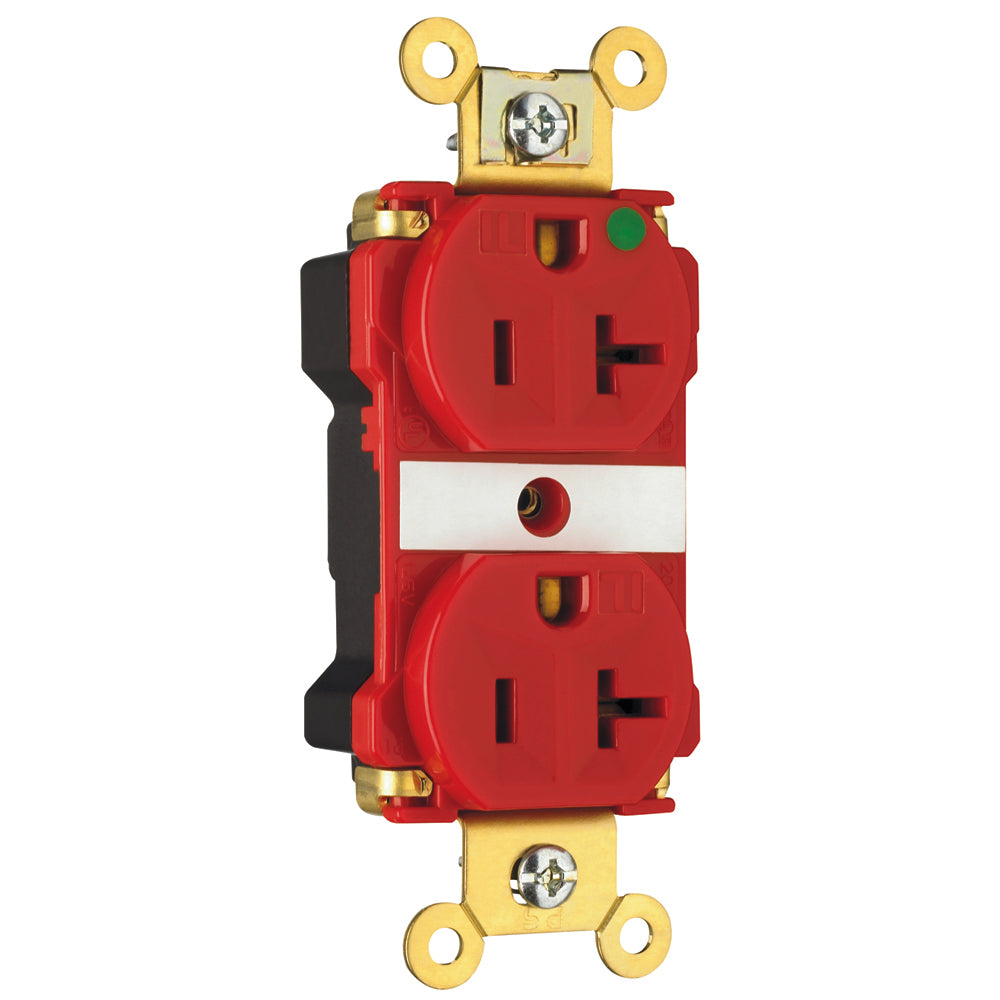

Pass & Seymour PT8300-ILRED PlugTail Duplex Extra Heavy Duty LED Illuminated Receptacle

Product Description

Pass & Seymour PT8300-ILRED is a PlugTail Duplex Extra Heavy Duty LED Illuminated Receptacle designed for reliable electrical connections. This receptacle operates at 125 VAC with a maximum current of 20 A, making it suitable for various applications including commercial and industrial use. Installation is easy and requires minimal skill, as the connectors snap into place without the need for stripping wires or tightening screws. The illuminated LED feature helps users easily identify the receptacle in dark environments.

• Factory terminated devices for easy installation
• Finger safe design prevents exposure to terminals
• Built-in LED for visibility in low light

Product Highlights

Suitable for commercial, hospital, and industrial applications, the receptacle is rated for harsh environments, ranging from -40 to 60 degrees Celsius. Its durable construction includes a nylon/polycarbonate housing and a NEMA 5-20R rating.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: NEMA 5-20R
• Temperature Rating: -40 to 60 degrees Celsius
• Dimensions: 1.625 inches L x 0.866 inches W x 3.281 inches H
• Material: Nylon/Polycarbonate
