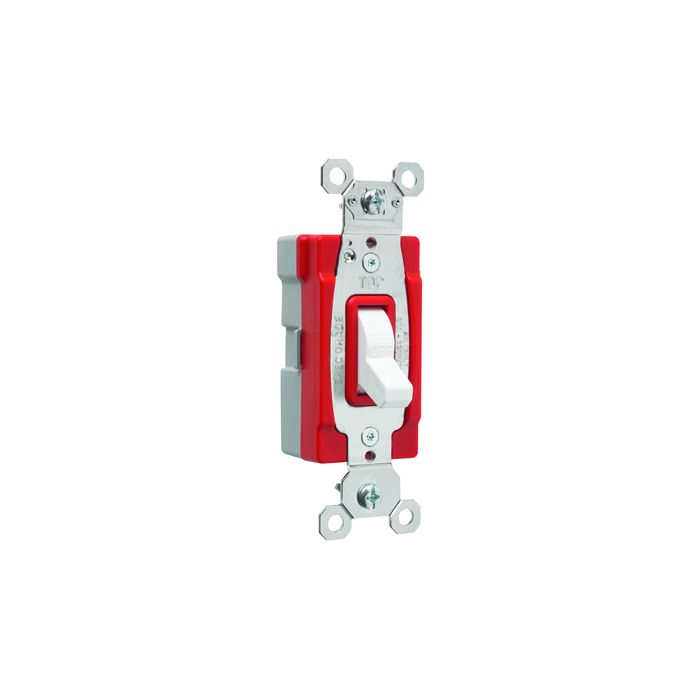

Pass & Seymour PT20AC3-W 3-Way Extra Heavy Duty Plug Tail Toggle Switch, 120/277 VAC, 20 A

Product Description

Pass & Seymour PT20AC3-W is a 3-way extra heavy duty plug tail toggle switch designed for reliable operation at 120/277 VAC with a power rating of twenty amperes. Made from high-quality thermoplastic, this switch features a toggle actuator and is suitable for wall mounting.

• Rated for 20 A at 120/277 VAC
• Durable thermoplastic construction
• Designed for demanding applications

Product Highlights

This plug tail toggle switch is designed for simplicity and reliability. It features a finger-safe design to prevent exposure to terminals, ensuring safety during installation.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• MPN: PT20AC3-W
• Type: 3-Way Extra Heavy Duty Plug Tail
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 3 W
• Operating Cycles: 50000 Cycles
• Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
• Environmental Conditions: -40 to 60 deg C Temperature
• Contact Configuration: DPDT
• Material: Thermoplastic
• Mounting: Wall
• Terminal Type: Blade
• Weight: 0.18 lb
