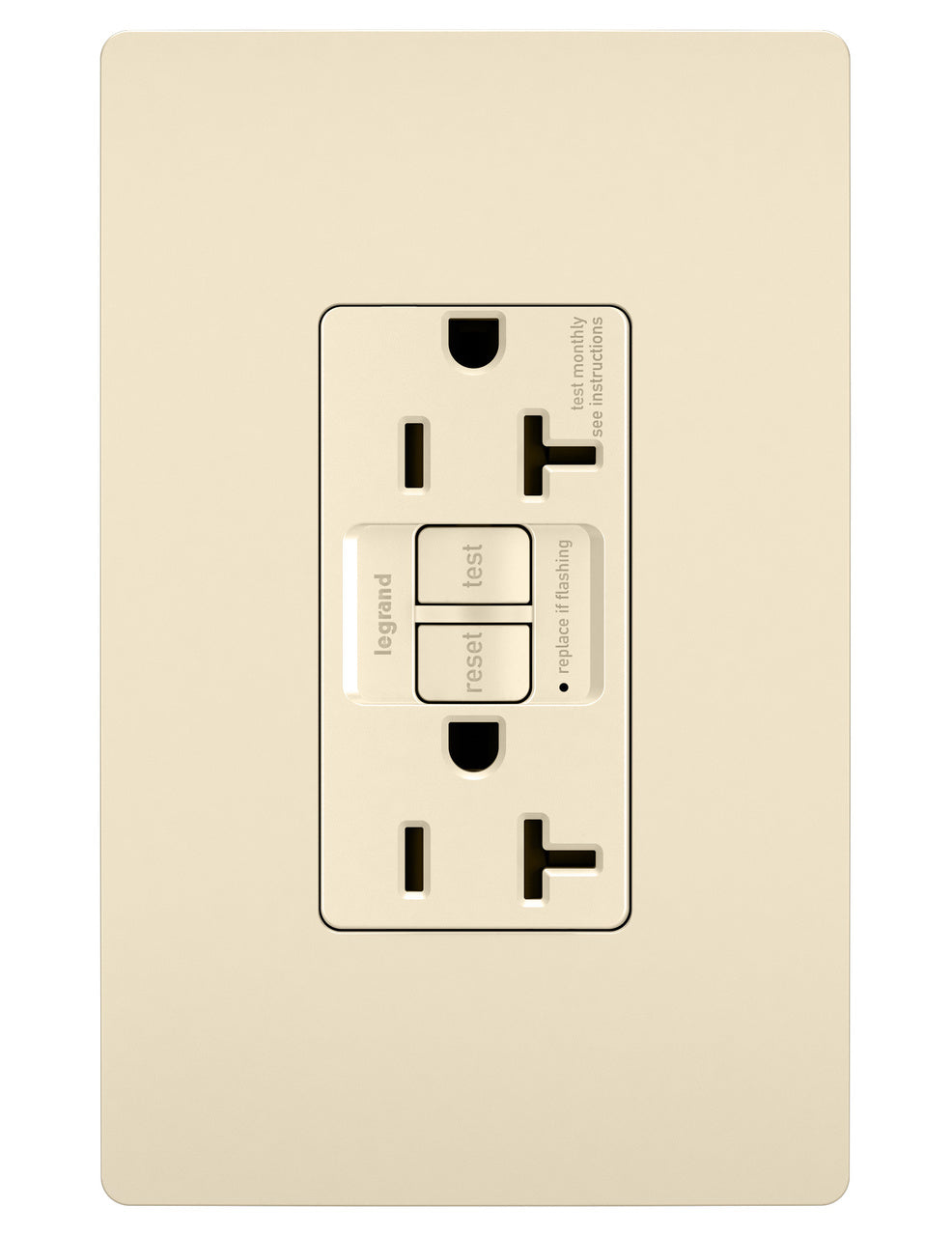

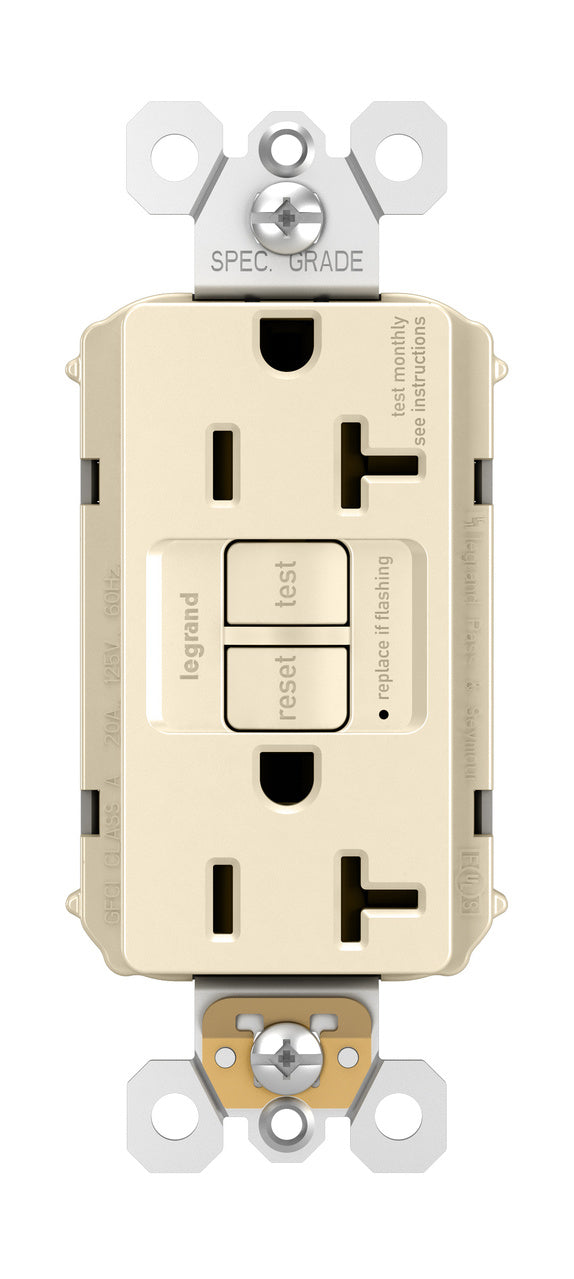

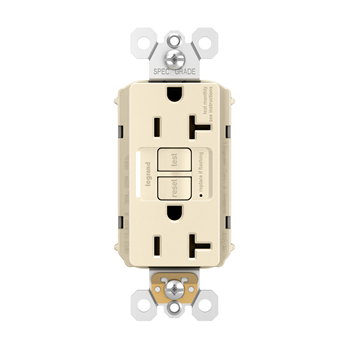

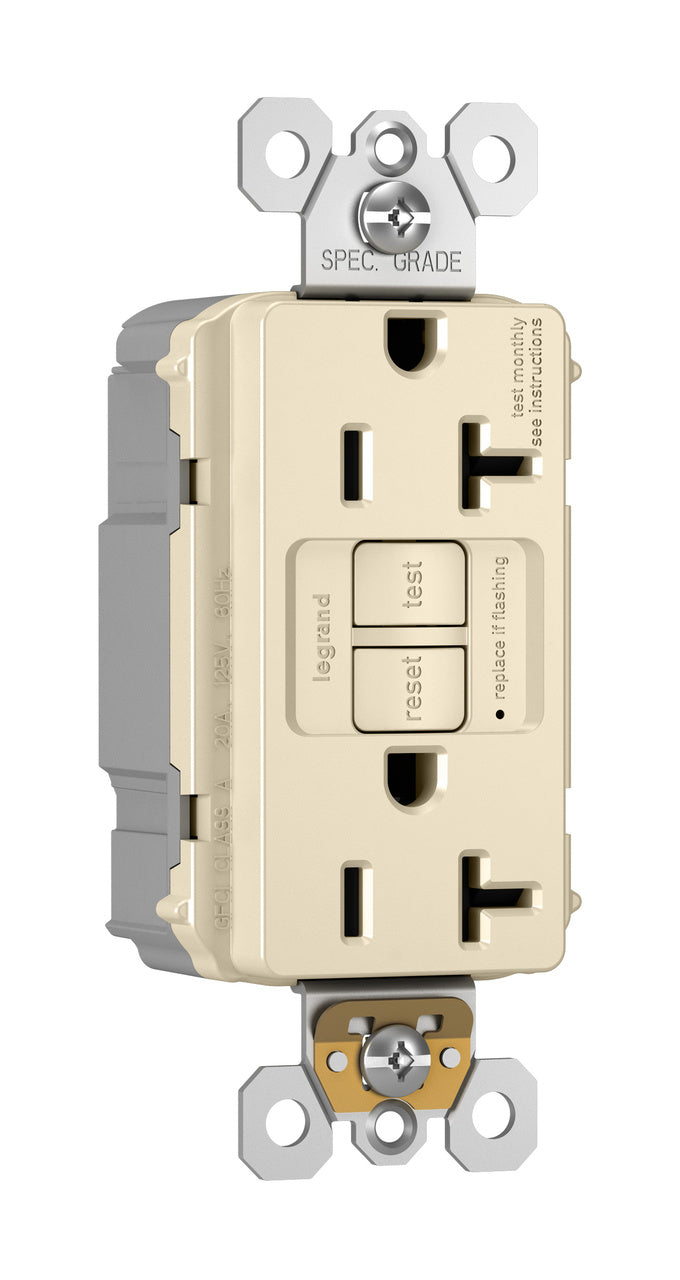

Pass & Seymour PT2097-LA PlugTail Specification Grade 20A Duplex Self-Test GFCI Receptacles with SafeLock Protection

Product Description

The Pass & Seymour PT2097-LA is a 20A GFCI that works with existing three-wire PlugTail connectors, creating a non-feed-through application. Install the same right-angle connector for GFCI and receptacle openings. PlugTail devices and connectors ensure consistent device installation, regardless of installer skill level. UL-Listed connectors are keyed for proper wiring installation.

• Automatic test every three seconds with indicator light.
• SafeLock Protection disconnects power if critical components are damaged.
• Built-in connector features large brass terminal blades.

Product Highlights

The Pass & Seymour GFCI receptacle provides reliable ground fault protection with easy PlugTail installation. Ideal for commercial and residential applications.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PT2097-LA
• Country of Origin: China

Technical Specifications

• Color: Light Almond
• Finish: Matte
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: China
• Self-Test: Yes
• Wall Plate Included: Yes
• Number of Receptacles: 2
• Outlet Type: GFCI
• Standard: cULus, UL Listed, FSUL
• UPC Number: 785007048100
• Product Depth US: 1.2 in
• Product Height US: 4.2 in
• Product Width US: 1.72 in
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back Only
• Wire Connection Type: PlugTail
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 125.0 V
• Brand: Pass and Seymour
• Model: LEGRAND PT2097LA
• MPN: PT2097LA
• ECCN: EAR99
• UNSPSC: 39121633
• Application: For Commercial, Residential Applications
• Amperage Rating: 20A
• Color Family: Tan
• Height: 4.2 in.
• Depth: 1.2 in.
• Width: 1.72 in.
• Product Name: Pass And Seymour Self-Test PlugTail GFCI Receptacle 20A Light Almond (PT2097LA)
• SKU: PT2097LA
• Mfr. Part Number: PT2097LA
• Housing Color: Light Almond
• UPC Code: #785007048100
• Type: Duplex Self-Test
• Voltage Rating: 125 VAC
• Grade: Specification
• NEMA Rating: NEMA 5-20R
• Terminal Type: PlugTail
• Material: Thermoplastic
• Temperature Rating: -35 to 66 deg C
• Sub Brand: PlugTail
• Item Name: GFCI Duplex Receptacle
• Connection Type: Built-In
• Trip Level: 4 - 6 mA
• Trip Time: 0.025 sec
• Grounding: Grounding
• Environmental Conditions: 95% Relative Humidity
