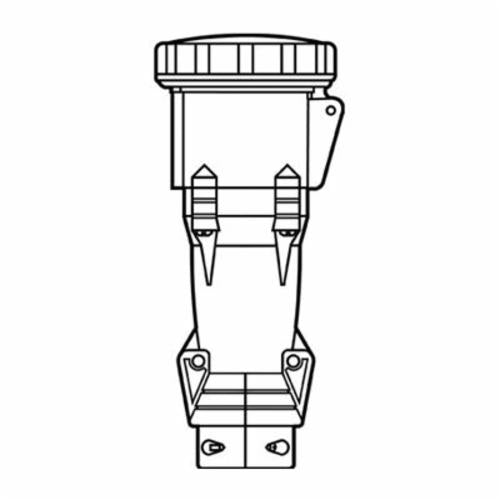

Pass & Seymour PS560C9W 3-Phase Watertight Connector 120/208 VAC

Product Description

The Pass & Seymour PS560C9-W is a 3-Phase watertight pin and sleeve connector designed for reliable electrical connections. It operates at 120/208 VAC and has a current rating of 60 A. This connector features four poles and five wires for robust functionality.

• Waterproof design (IP67)
• Constructed from chemical-resistant thermoplastic
• Temperature range from -50 to 80 degrees Celsius

Product Highlights

This connector is ideal for both commercial and industrial applications where durability and safety are essential.

Product Information

Standard Information

• Manufacturer: Legrand
• Brand: Pass & Seymour

Technical Specifications

• Voltage Rating: 120/208 VAC
• Amperage Rating: 60 A
• Frequency Rating: 60 to 400 Hz
• Enclosure Rating: IP67
• Temperature Rating: -50 to 80 degrees Celsius
• Material: Thermoplastic
• Dimensions: 6-3/4 inches
• Terminal Type: Screw
• Number of Poles: 4
• Number of Wires: 5
• Color: Black
