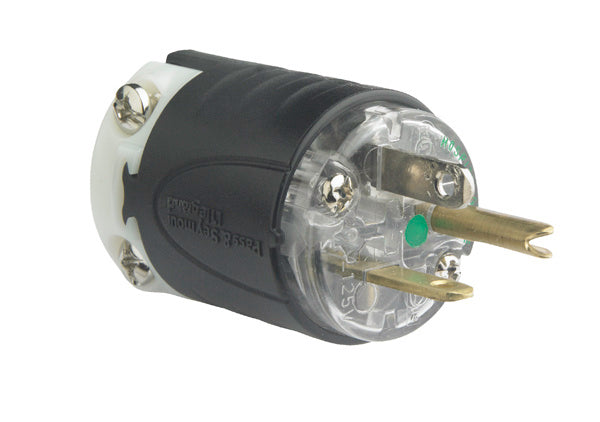

Pass & Seymour PS5366-XHG Straight Blade Plug 20A 125V

Product Description

The Pass & Seymour PS5366-XHG is a hospital-grade straight blade plug. This 20A 125V plug features a nylon housing for impact and chemical resistance. It is suitable for commercial and healthcare applications.

• Arrives completely ready-to-wire, cutting installation time.
• Nylon housing provides impact and chemical resistance.
• Heavy-duty brass alloy blades and contacts resist heat rise and provide excellent conductivity.

Product Highlights

This straight blade plug is ideal for commercial and healthcare settings, offering durability and efficient wiring.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS5366-XHG
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Type: Plug
• Application Sector: Commercial, Healthcare
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Features: Chemical Resistant, Durable
• Standard: UL 498, FEDSPEC
• UPC Number: 785007236798
• Product Length US: 1.752 in
• Product Width US: 1.358 in
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A
• Flanged: No
• Connector Style: Straight Blade
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 5-20P
• Number of Poles: Double Pole
• Number of Wires: 3
• Terminal Accommodation: #18 AWG - #10 AWG
• Voltage: 125.0 V
• Brand: Pass & Seymour
• Recommended Environment: Indoor/Outdoor
• MPN: PS5366-XHG
• Input Voltage: 125 V
• Maximum Input Current: 20 A
• Output Voltage: 125 V
• UPC: 785007236798
• Grade: Commercial
• Material: Nylon
• NEMA Rating: NEMA 5-20P
• Temperature Rating: -40 to 75 deg C
• Voltage Rating: 125 VAC
• Standard & Approvals: cULus Listed, RoHS Compliant
• Cord Diameter: 0.23 - 0.72 in
• Catalog ID: P-SPS5366-XHG
• ECCN: EAR99
• Application: Commercial
• Amperage Rating: 20A
• AWG Range: 18 - 10 AWG
• Rated Voltage: 125V
• Length: 1.752 in.
• Width: 1.358 in.
• Depth: 1.752 Inch
• Height: 1.516 Inch
• Wire Size: 10 AWG
• Certifications: CULUS,FEDSPEC
• Size: 3\"
