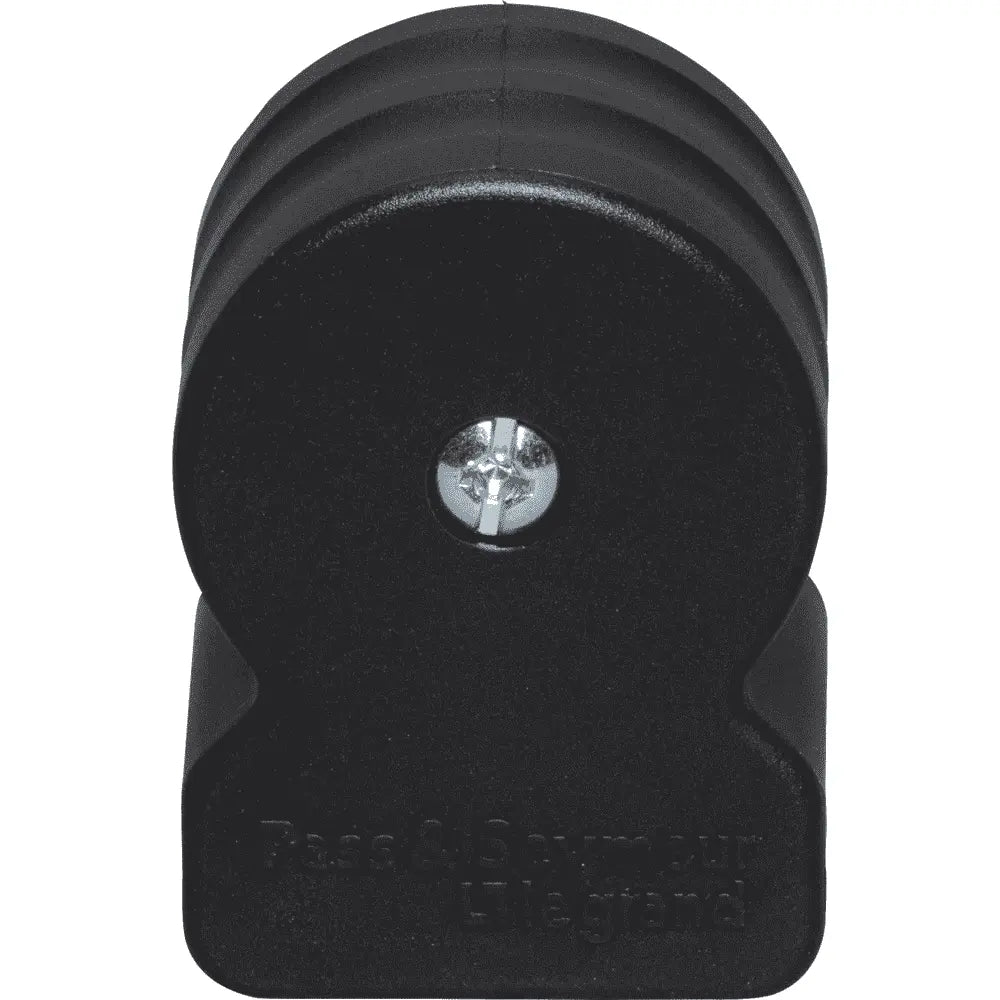

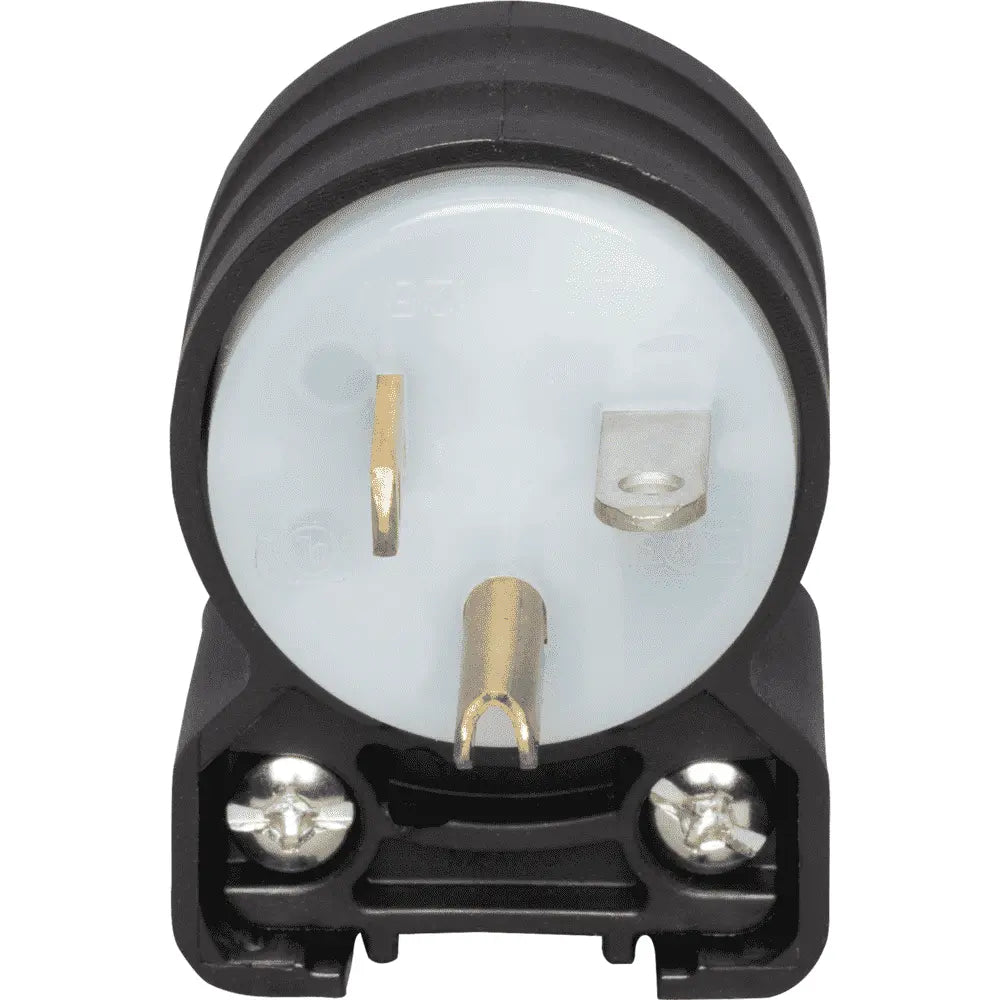

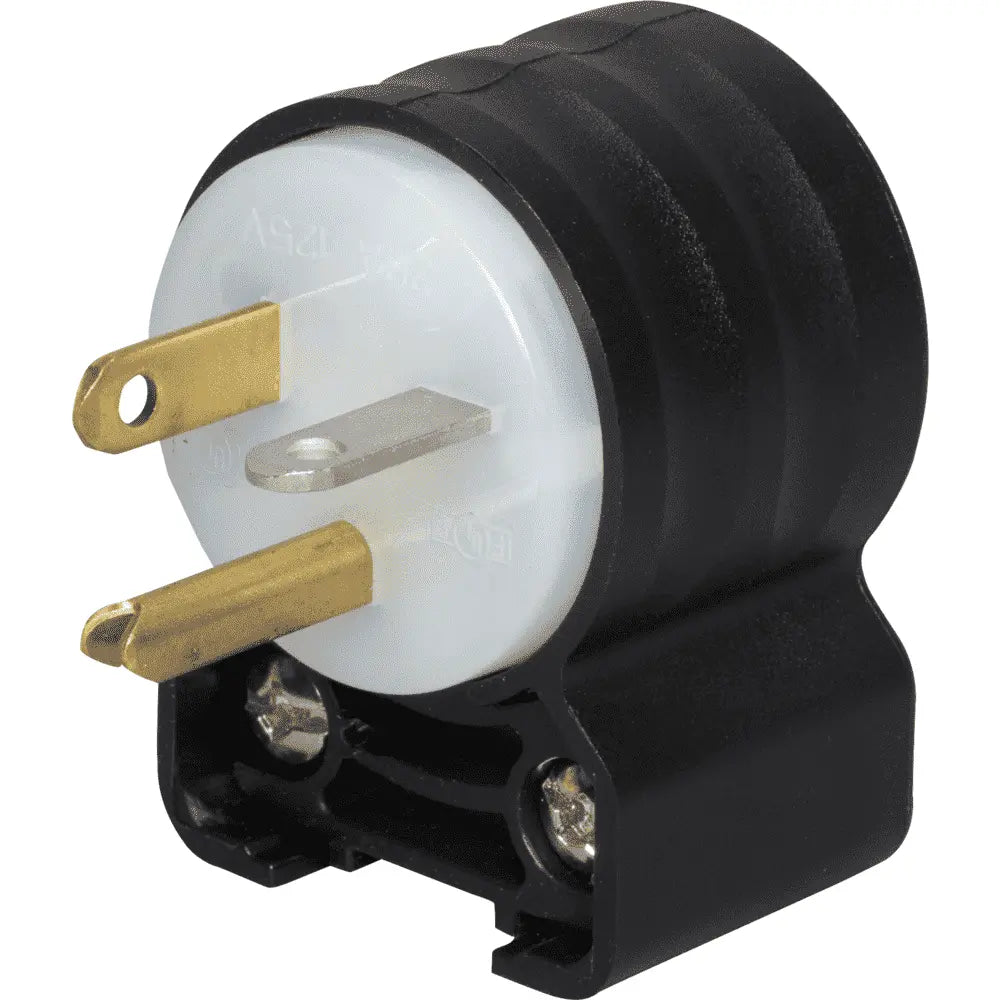

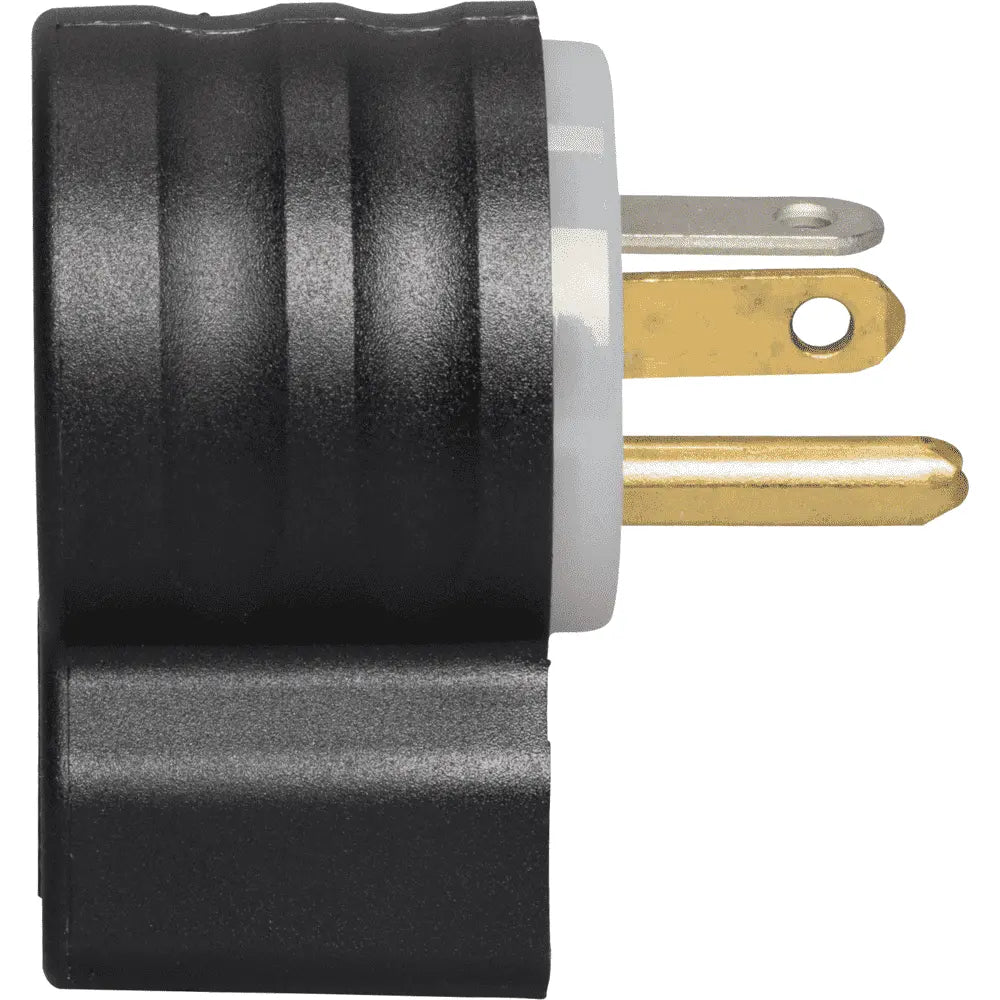

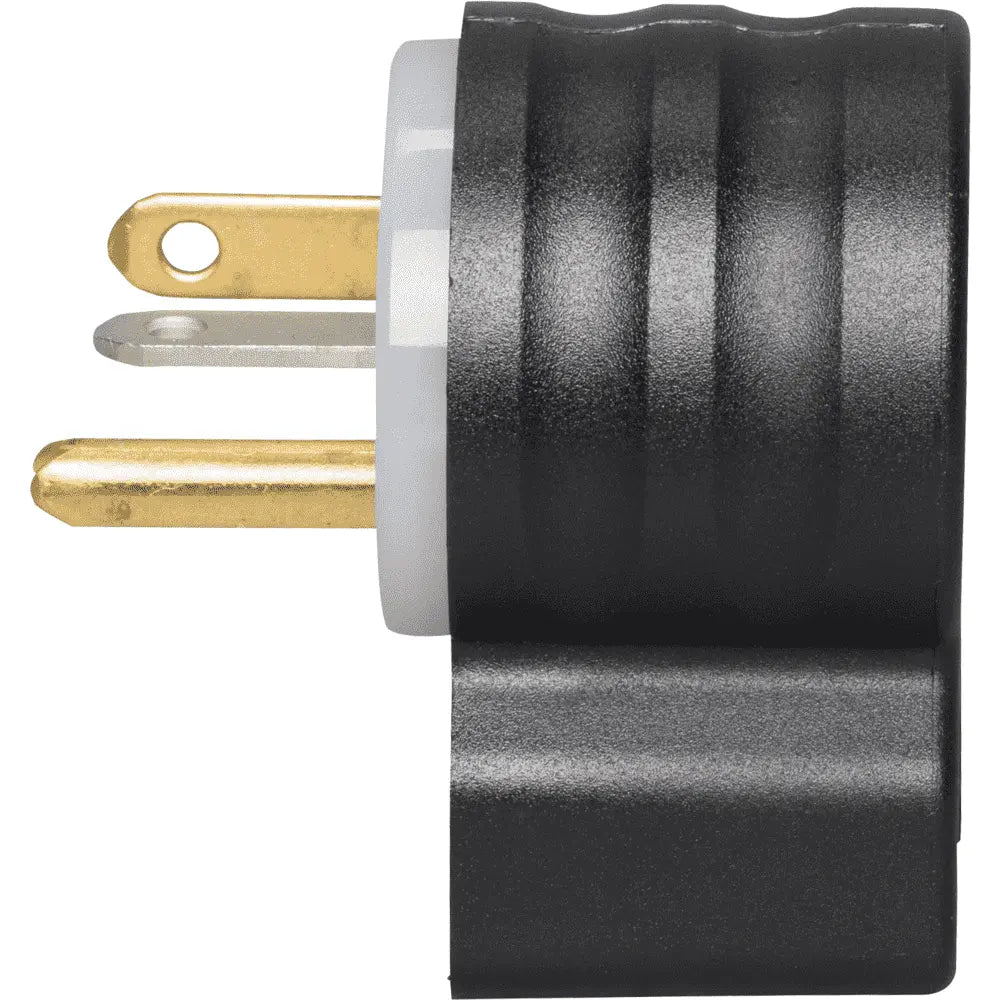

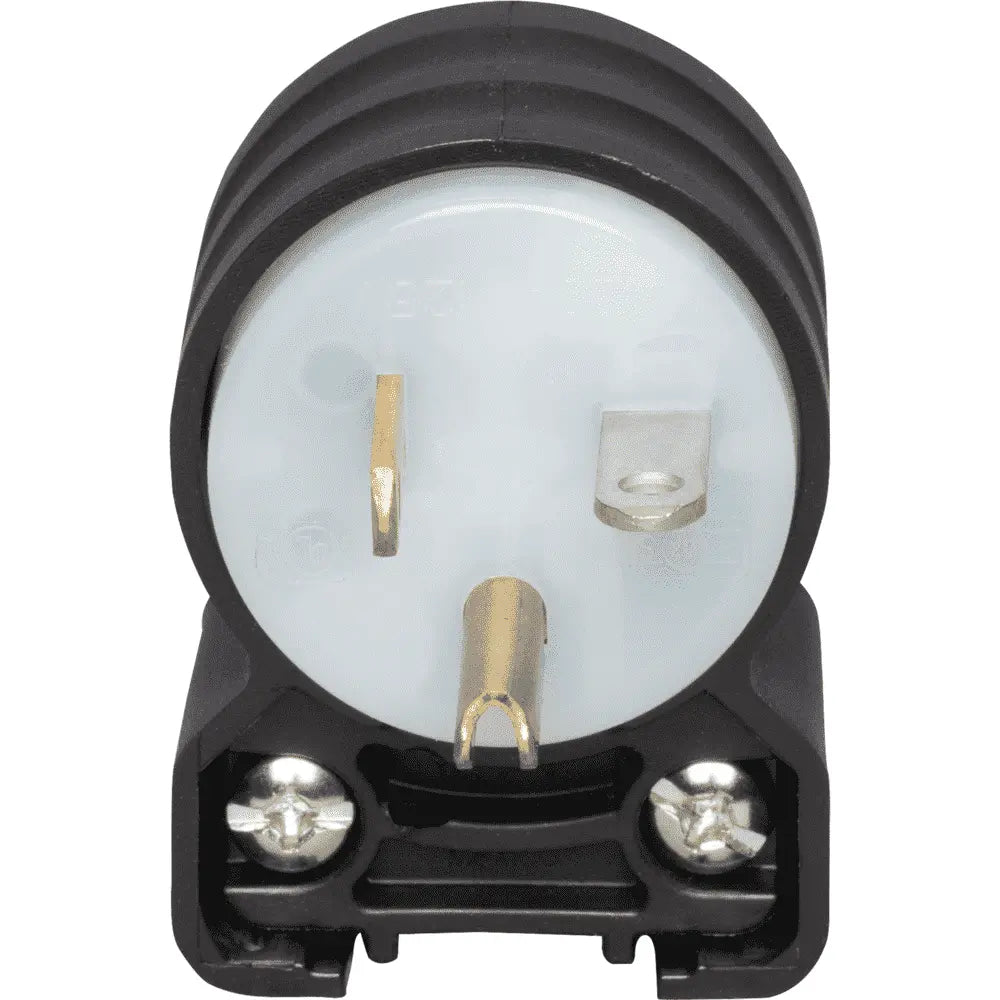

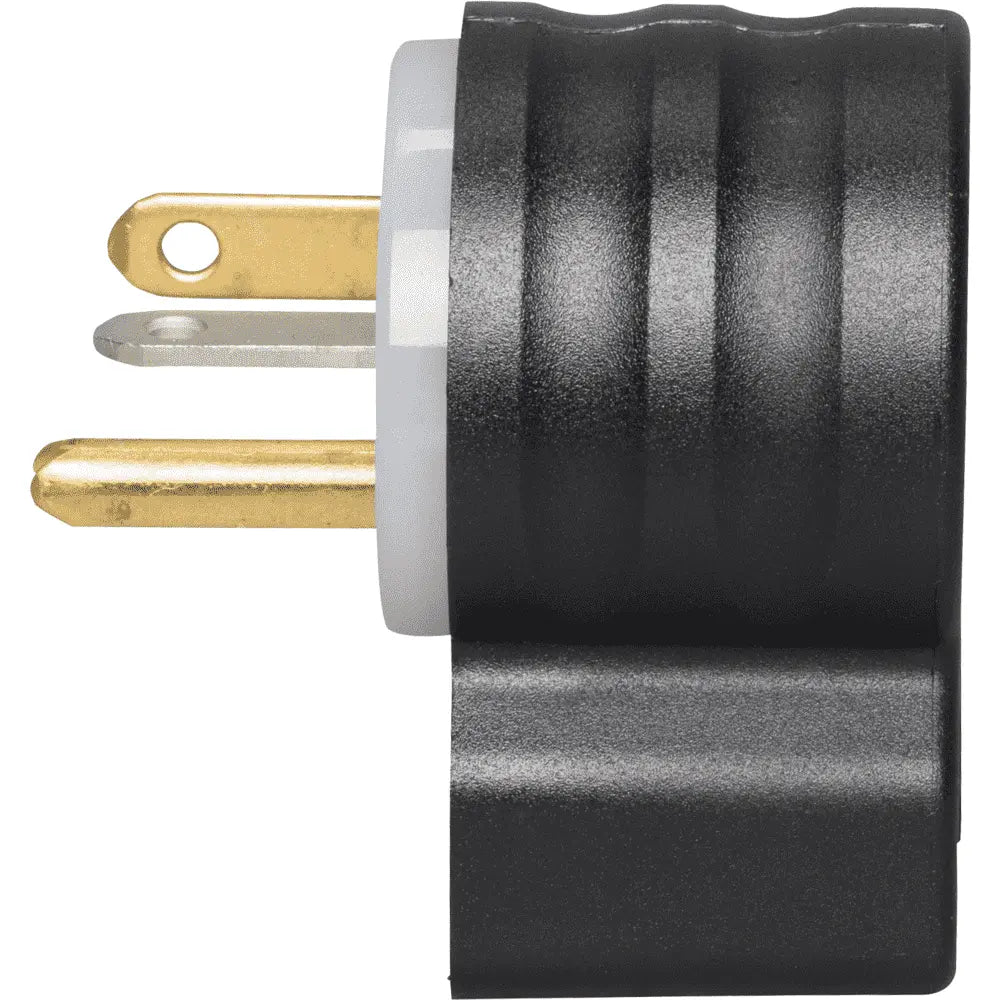

Pass & Seymour PS5366-SSAN Extra-Hard Use Angled Plug, 20A, 125 VAC

Product Description

The Pass & Seymour PS5366-SSAN is an extra-hard use angled plug designed for durability and versatility. This device operates at 20 Amperes and 125 VAC. It allows for a four-position face rotation, enhancing accessibility and adaptability in various applications.

• Features tri-drive assembly for quick and secure installation.
• Compatible with all Pass & Seymour EHU-style straight blade plugs.
• Constructed from nylon for robustness and reliability.

Product Highlights

The angled design of this plug allows for easy connection in tight spaces. It is ideal for demanding environments where durability is a key requirement.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour

Technical Specifications

• UPC: 785007236972
• Type: Straight Blade Plugs
• Color: Black, White
• Depth: 1.35 inches
• Width: 1.53 inches
• Height: 2.13 inches
• Weight: 0.17 pounds
• Material: Nylon
• Standard: UL498, RoHS, CSA
• Wire Size: 14 to 0 AWG
• Connection: Screw terminal
• Voltage Rating: 125 VAC
• Amperage Rating: 20 Amperes
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Country of Origin: MX
• Environmental Conditions: Dry Location
