Pass & Seymour PS5362 Heavy Duty Spec-Grade Duplex Receptacle 20A 125V

LEGRAND
Brand: LEGRAND
SKU: PS5362
Availability: Out Of Stock
$54.14
$54.14
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

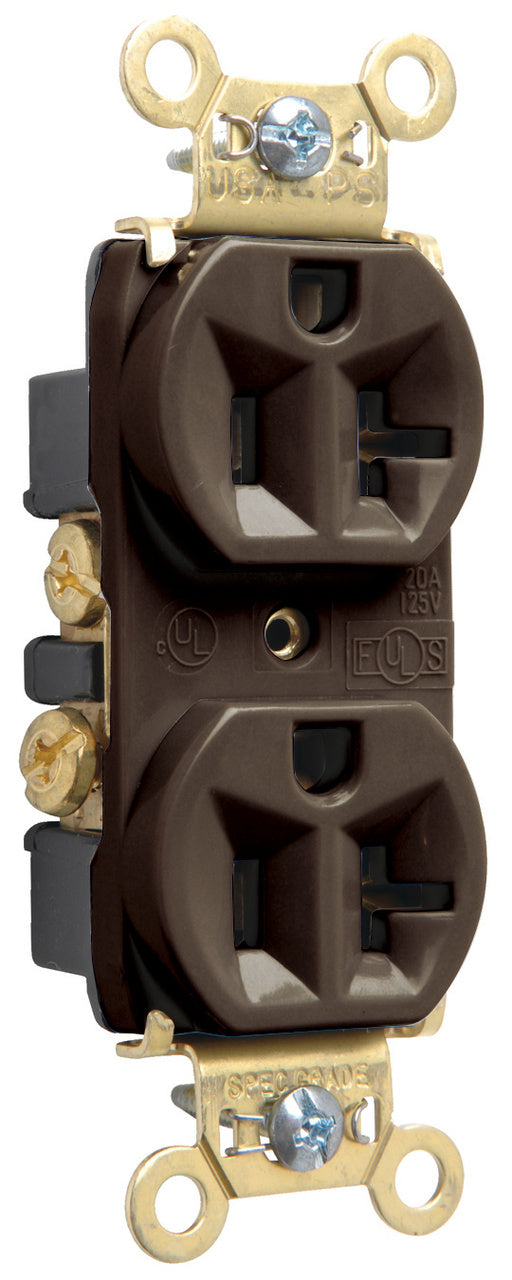

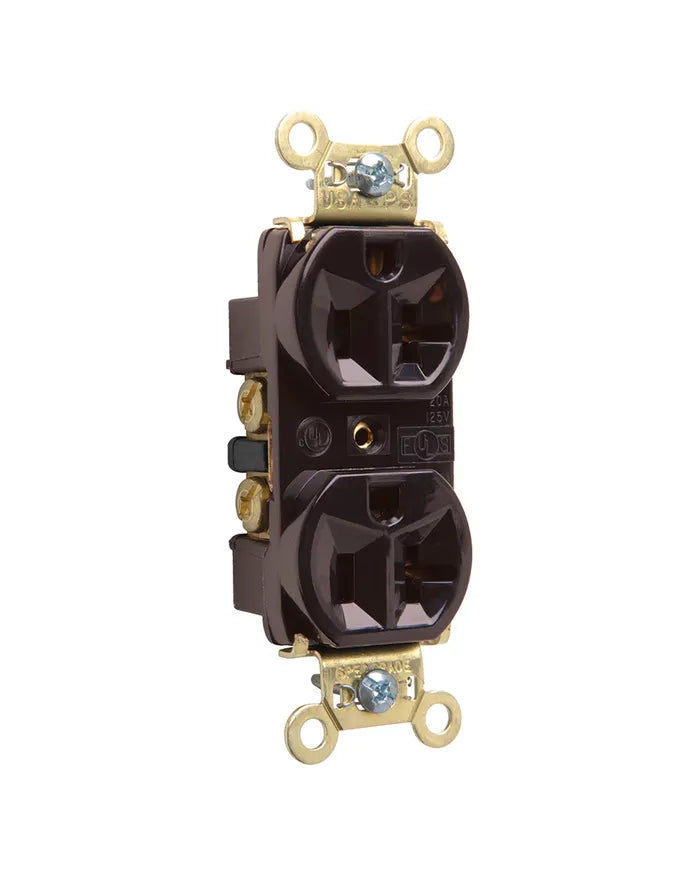

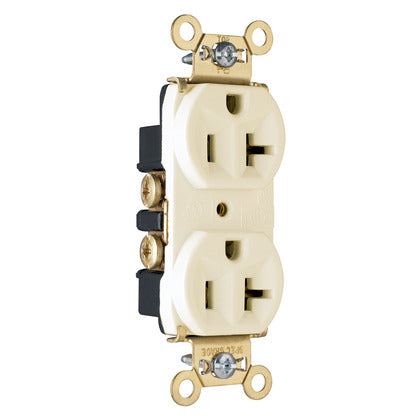

The Pass & Seymour PS5362 is a heavy-duty, specification-grade duplex receptacle. Rated for 20A and 125V, this receptacle features back and side wiring. It is suitable for commercial applications. The receptacle is built to withstand demanding environments.

  • Heavy-duty, brass strap for added strength and ground conductivity
  • Strap tabs wrap around face to prevent strap from separating from face and back body
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors

Product Highlights

Durable duplex receptacle with robust construction for commercial use. Features back and side wiring.

Product Information

Standard Information

  • Brand: Pass & Seymour
  • Manufacturer Part Number: PS5362
  • Country of Origin: Mexico
Technical Specifications
Application Sector
Commercial
Product Line
Pass & Seymour
Country Of Origin
Mexico
Brass Mounting Strap
Yes
Wall Plate Included
No
Number of Receptacles
2
Outlet Type
Straight Blade
Warranty Type
1-Year Limited Warranty
Standard
cULus UL498, CSA C22.2 No. 42, FEDSPEC
UPC Number
785007859959
Product Depth US
0.78 in
Product Height US
2.635 in
Product Width US
1.322 in
cULus ListingNumber
E140596
cULus Listed
Yes
Amperage
20 A
Connection Location
Back and Side
Wire Connection Type
Internal Pressure Plates, Screw Terminals
Dielectric Strength
Withstands 2000V minimum
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Indoor/Outdoor
Indoor
NEMA Configuration Code
5-20R
Number of Poles
Double Pole
Number of Wires
3
Operating Temperature
-40 00b0-60 00b0C
Operating Temperature Max
60 °C
Operating Temperature Min
-40 °C
Voltage
125.0 V
Wire Size
14 - 10 AWG
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
NEMA
5-20R
Size
1.322 L x .780 W x 3.281 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Receptacles
Brand
Legrand
Sub Brand
Pass & Seymour
12-Digit UPC
785007859980
GTiN
00785007859980
Product UPC
78500785998
UNSPSC
39121406
Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in
Certifications
CULUS,FEDSPEC
Amps
20
Mounting
Wall
ECCN
EAR99
Mounting Type
Surface
Amperage Rating
20A
AWG Range
14 - 10 AWG
Rated Voltage
125V
Color Family
Brown
Finish
Matte
MDM Pkg GTiN
00785007859942
Warranty Length
1 yr
