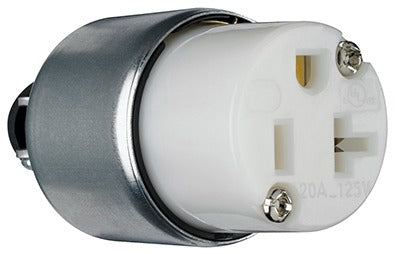

Pass Seymour PS520CACC20 Armored Connector 20A Nema 5-20R

Product Description

The PASS SEYMOUR PS520CACC20 is a 20-amp, 125-volt armored connector rated NEMA 5-20R for commercial and industrial electrical applications. The armored housing is designed to automatically ground on contact, reducing installation steps and improving safety in demanding environments. Rated at 20A and 125V, this connector is built for branch-circuit terminations where physical durability and reliable grounding are required. Electricians select this connector for use in facilities where standard nylon or thermoplastic bodies are not sufficient for the installation conditions.

This connector is suited for use in commercial, light industrial, and institutional wiring projects where a ruggedized NEMA 5-20R female connector is specified. The automatic grounding feature of the armored housing makes it appropriate for installations subject to physical stress, frequent disconnection cycles, or code requirements calling for metal-bodied devices. It is sold in bulk packaging of 20 units per package, making it practical for contractors outfitting multiple circuits or completing larger wiring projects.

Key Features

• 20A, 125V rating meets NEMA 5-20R configuration requirements
• Armored housing automatically grounds on mating, reducing wiring steps
• White finish for standard device identification
• Bulk pack of 20 units per package for contractor-quantity purchasing
• Compatible matching plug available as True Value 550-697

Compatibility

Designed for use with NEMA 5-20R branch circuits rated at 20A, 125V. Compatible matching plug is True Value 550-697. Suitable as an OEM-style replacement or new-installation connector for 20-amp single-phase circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker and verify absence of voltage with a meter before making any terminations. The armored housing requires proper contact with a grounded surface or grounding conductor to achieve automatic grounding — confirm grounding continuity after installation. Do not exceed the 20A, 125V rating of the device.
