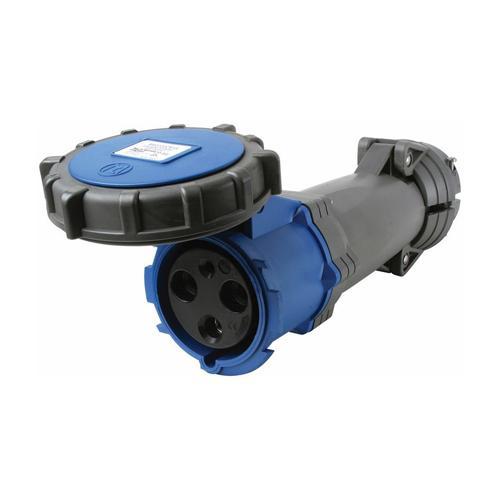

Pass & Seymour PS460C9-W Pin & Sleeve Connector 60A 3/250V

Product Description

The Pass & Seymour PS460C9-W is a three pole, four wire pin and sleeve connector designed for reliable connections in commercial applications. With a rating of sixty amps at 250 volts, this connector is ideal for various electrical setups.

• Durable thermoplastic construction ensures longevity and performance.
• Features ready-to-wire design for quick installation.
• Integrated cord grip prevents loose parts and enhances usability.

Product Highlights

This connector is compatible with North American standards and features an IP67 rated enclosure for watertight performance.

Product Information

Standard Information

• Brand: Pass & Seymour
• Type: Pin & Sleeve Connector

Technical Specifications

• Voltage Rating: 250 Volts
• Amperage Rating: 60 Amps
• Number of Poles: 3
• Number of Wires: 4
• Wire Size: 2 AWG
• Temperature Rating: -50 to 80 degrees Celsius
• Material: Thermoplastic
• Dimensions: 7.3 inches
• Country of Origin: USA
