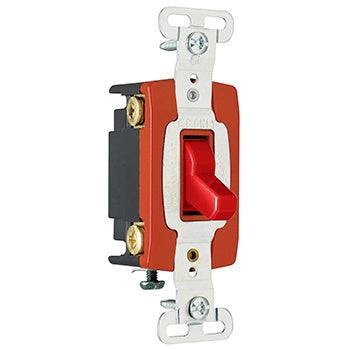

Pass & Seymour PS20AC4-RED Industrial Extra Heavy Duty Specification Grade Switch 20 A REPLACEMENT HBL1224R

Product Description

The Pass & Seymour PS20AC4-RED is an industrial extra heavy-duty specification grade switch. It features external screw-pressure-plate back and side wiring, accepting #14 - #10 AWG copper or copper-clad conductors. The switch is designed with a heavy-gauge one-piece copper alloy contact arm to virtually eliminate contact bounce.

• Cam controls fast ''make'' and positive ''break'' to minimize arcing
• High strength thermoplastic polycarbonate toggle
• Oversized silver alloy contacts for long life and better heat dissipation

Product Highlights

This switch is ideal for commercial and industrial applications. It offers long life, better heat dissipation, and ease of installation.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS20AC4-RED
• Country of Origin: Mexico

Technical Specifications

• Color: Red
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC
• UPC Number: 785007195507
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• CSA Listed: Yes
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 4-Way
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• ECCN: EAR99
• UNSPSC: 39122211
• Application: Industrial
• Grade: Industrial, Specification
• Rated Voltage: 120V
• Color Family: Red
• Model: HBL1224R
• Amperage Rating: 20A
• AWG Range: 14 - 10 AWG
• Duty Rating: Extra Heavy Duty
• Product UPC: 78500719550
• GTiN: 00785007195507
