Pass & Seymour PS20AC3IL 3way Lock Switch 20A 120/277V

Pass & Seymour PS20AC3IL 3way Lock Switch 20A 120/277V

Brand: PASS & SEYMOUR
SKU: PS20AC3IL
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days
$57.46
$57.46
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

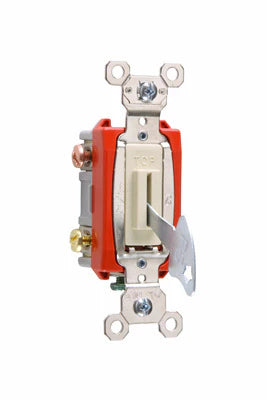

The Pass & Seymour PS20AC3-IL is a 3way lock switch designed for both back and side wiring. This model operates at 20 amps and is rated for 120/277 volts. The switch comes in ivory color and allows the key to be removed in both on and off positions.

  • Accepts #14 to #10 AWG copper or copper-clad conductors.
  • Includes a heavy-gauge one-piece copper alloy contact arm.
  • Features cam controls to minimize arcing and enhance safety.

Product Highlights

This switch is ideal for commercial and residential applications, providing reliable control for various electrical needs.

Product Information

Standard Information

  • Brand: Pass & Seymour
  • Catalog Number: PS20AC3IL

Technical Specifications

  • Type: 3 Way, Heavy Duty
  • Voltage: 120 Volt
  • Amperage: 20 Amp
  • Depth: 1.073 Inch
  • Width: 1.320 Inch
  • Height: 3.281 Inch
  • Duty Rating: Extra Heavy Duty
  • Country of Origin: Mexico
