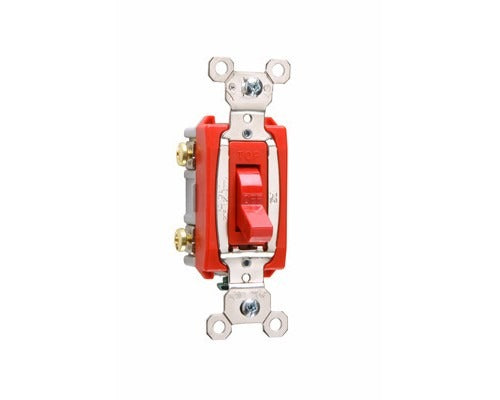

Pass & Seymour PS20AC2-RED 2-Pole Toggle Switch 20A 120/277V (3.3 inches)

Product Description

Pass & Seymour PS20AC2-RED is a 2-pole, double-throw toggle switch rated 20 A at 120/277 V for commercial and industrial applications. It is configured for back-and-side wiring and wall box mounting, and accepts #14 - #10 AWG conductors. The switch uses a thermoplastic toggle with a glass-reinforced nylon back body, oversized silver-alloy contacts, and includes a standard grounding terminal and auto-ground clip.

• Rated 20 A at 120/277 VAC for use with CFL, LED, fluorescent, halogen and incandescent loads
• Back and side wire connections; accepts #14 - #10 AWG copper or copper-clad conductors
• Thermoplastic toggle, glass-reinforced nylon back body, oversized silver-alloy contacts, and standard grounding terminal with auto-ground clip

Product Highlights

Extra heavy-duty industrial 2-pole toggle switch, 20 A at 120/277 V, back-and-side wiring, accepts #14 - #10 AWG, cULus listed.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: PS20AC2-RED
• Country of Origin: Mexico
