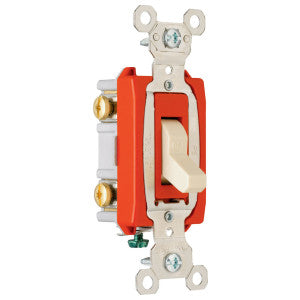

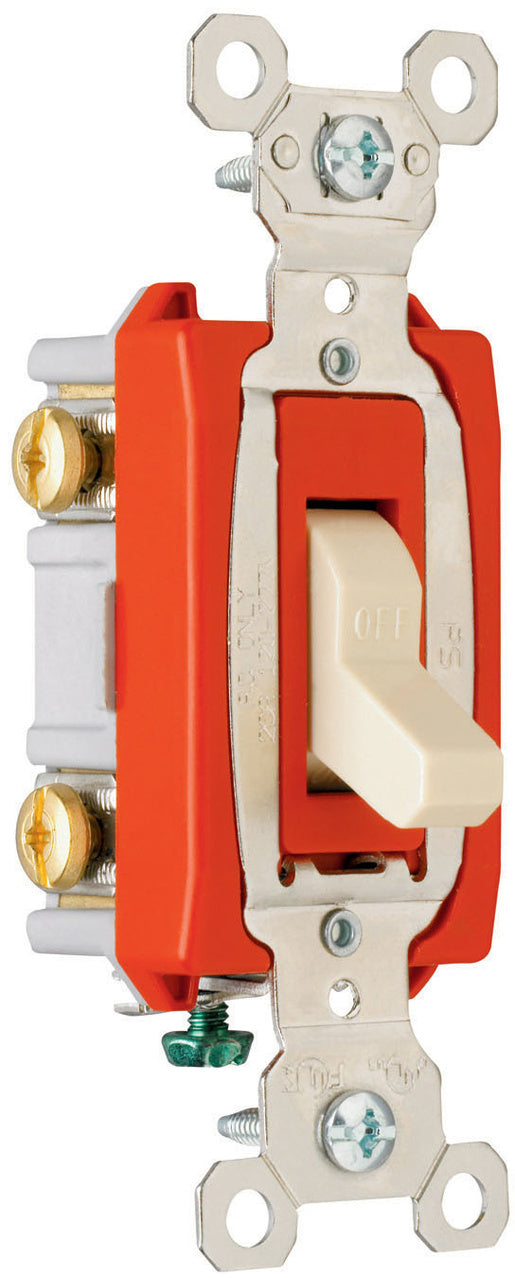

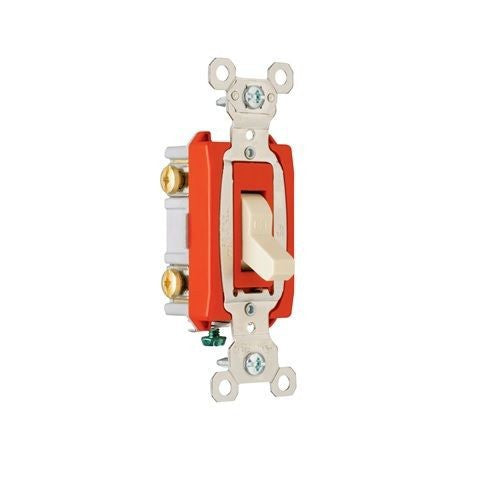

Pass & Seymour PS20AC2-LA Heavy Duty Toggle Switch 120/277 VAC, 20 A, 1/2 hp

Product Description

The Pass & Seymour PS20AC2-LA heavy-duty toggle switch is designed for demanding applications. These durable switches virtually eliminate contact bounce and arcing. The exterior housing is made of chemical and impact-resistant thermoplastics. It features auto-ground and external, screw-pressure plate back wiring for fast, easy installation and excellent electrical connection.

• One-piece plated steel strap for corrosion-resistance
• Heavy-duty bumpers for quiet, smooth operation
• Oversized silver-alloy contacts for long life and better heat dissipation

Product Highlights

Ideal for industrial uses such as healthcare, education, and institutional settings. UL 94-V2 Flammability.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS20AC2-LA
• Country of Origin: Mexico

Technical Specifications

• Material: Thermoplastic
• Mounting: Wall
• Number Of Poles: 2
• Operating Cycles: 50000
• Power Rating: 1 hp/2 hp
• Terminal Type: Screw
• Type: Heavy Duty
• Voltage Rating: 120/277 VAC
• Application: For industrial uses such as health care, education and institutional
• Standard & Approvals: CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed
• Amperage Rating: 20 A
• Actuator: Cam
• Environmental Conditions: -40 to 115 deg C
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: Double Pole
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• ECCN: EAR99
• UNSPSC: 39122211
• AWG Range: 14 - 10 AWG
• Grade: Industrial
• Rated Voltage: 120V
• Color Family: Tan
• Height: 3.281 in.
• Depth: 1.073 in.
• Width: 1.32 in.
• Brand: Pass & Seymour
• Maximum Amperage: 20 A
• Model: 20AC2
• Current Rating: 20 Amps
• AC Adapter Current: 20 Amps
• Operation Mode: Toggle
• Connector Type: Quick Connect
• Contact Material: Copper
• Specification Met: RoHS
