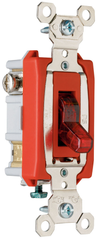

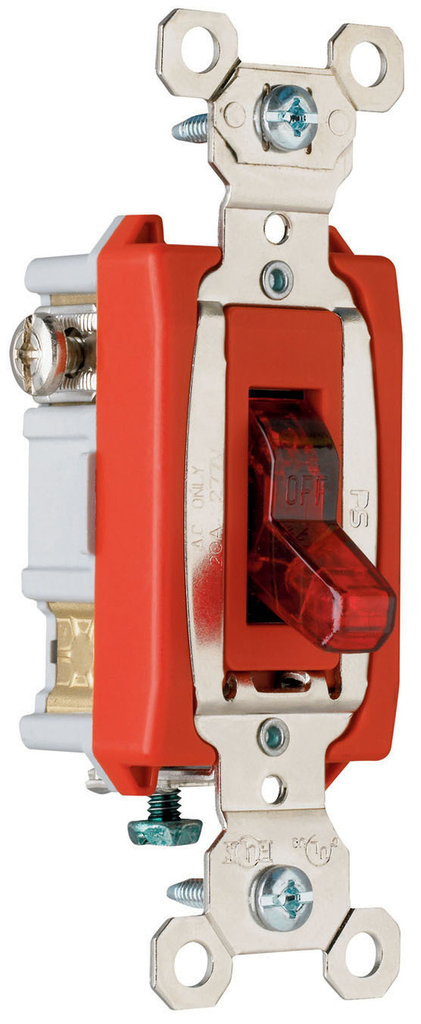

Pass & Seymour PS20AC1RPL Heavy Duty Specification Grade Pilot Light Switch 120/277 VAC 20 A

Product Description

The Pass & Seymour PS20AC1RPL is a one-pole pilot light toggle switch designed for heavy-duty applications. Operating at a voltage of 120/277 VAC and rated for 20 amps, this switch features a red illuminated light indicating when it is powered on. It is suitable for industrial settings and designed to provide long-lasting performance.

• Heavy-duty specification grade.
• Back and side wiring for easy installation.
• Red illuminated pilot light for visibility.

Product Highlights

This switch is engineered to withstand harsh conditions and heavy use, making it ideal for industrial applications.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part No: PS20AC1RPL

Technical Specifications

• Type: Heavy Duty Specification Grade
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 1/2 hp
• Number of Poles: 1
• Environmental Conditions: -40 to 115 deg C Operating Temperature
• Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
• Operating Cycles: 50000 Cycles
