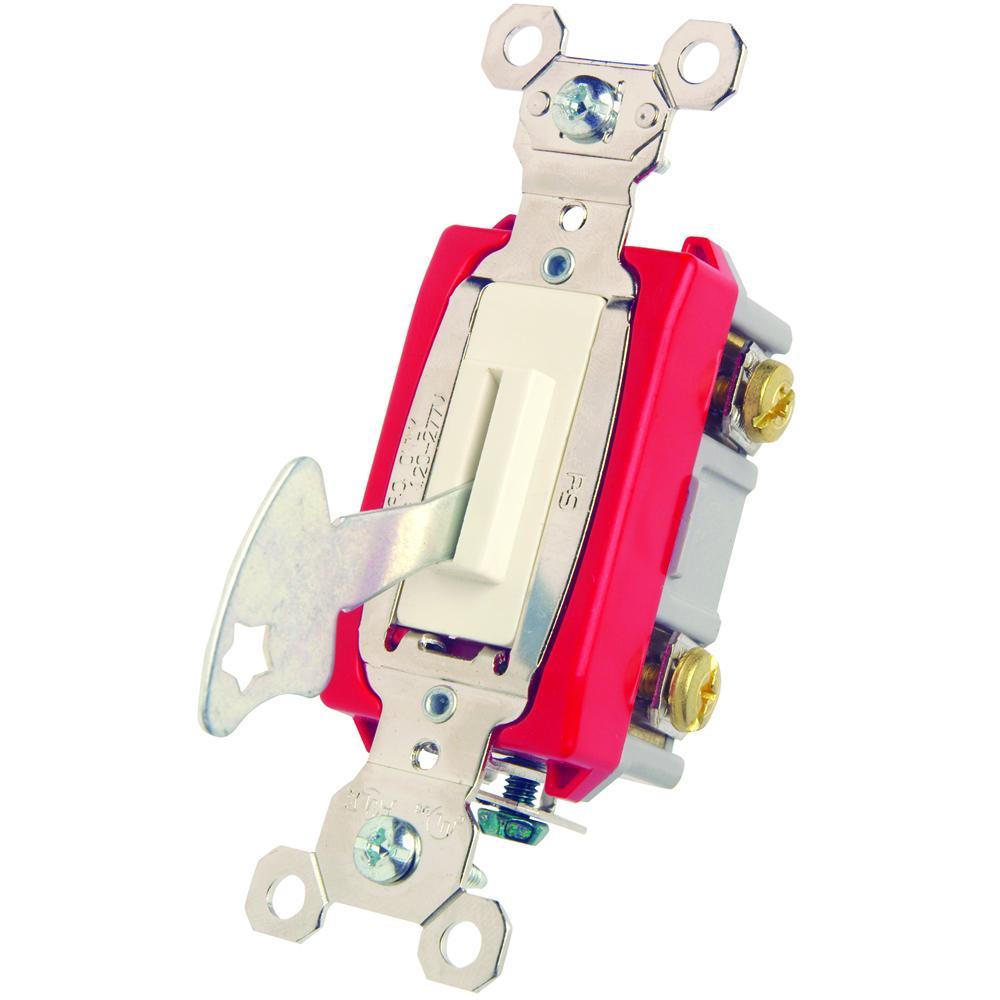

Pass & Seymour PS20AC1LAL Extra Heavy Duty Lock Switch 120/277 VAC 20 A 1 W

Product Description

The Pass & Seymour PS20AC1LAL is an extra heavy-duty lock switch designed for 120/277 VAC applications. This switch features a toggle actuator that provides reliable performance. The key can be removed in either the ON or OFF position, making it versatile for various situations.

• Heavy duty construction for high-use environments.
• Accepts 14 to 10 AWG copper conductors.
• Rated for 20 A at 120/277 VAC with a SPST contact configuration.

Product Highlights

This lock switch is suitable for applications requiring controlled access. Its robust build ensures longevity even in demanding conditions.

Product Information

Standard Information

• Manufacturer: Legrand
• Brand: Pass & Seymour

Technical Specifications

• Actuator: Toggle
• Color: Light Almond
• Connection: Thread
• Contact Rating: 20 A at 120/277 VAC
• Dimensions: 3.281 in H x 1.32 in W x 1.073 in D
• Environmental Conditions: -40 to 115 deg C Temperature
• Material: Nylon
• Mounting: Wall
• Number of Poles: 1
• Type: Extra Heavy Duty
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 1 W
• Contact Configuration: SPST
