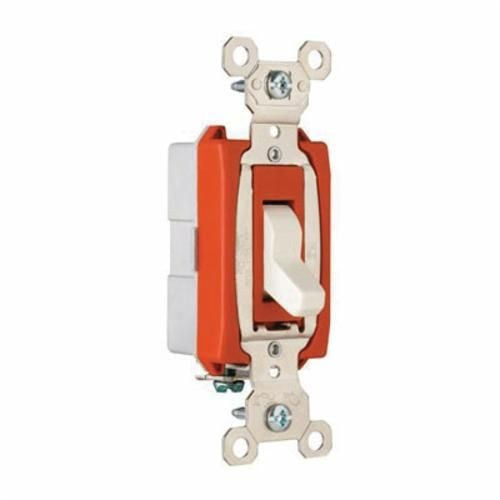

Pass & Seymour PS20AC1-LA Industrial Extra Heavy Duty Specification Grade Switch 20 A

Product Description

The Pass & Seymour PS20AC1-LA is an industrial extra heavy-duty specification grade switch. Features a one-piece toggle molded from chemical, impact, and heat-resistant thermoplastic. The glass-reinforced thermoplastic back body provides durability and resistance to harsh cleaners. Designed for demanding applications, this switch virtually eliminates contact bounce and arcing.

• One-piece nickel-plated brass strap for superior corrosion-resistance.
• Oversized silver-alloy contacts for long life and better heat dissipation.
• Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.

Product Highlights

This toggle switch is ideal for commercial and industrial applications. It features a durable thermoplastic construction and oversized silver alloy contacts.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS20AC1-LA
• Country of Origin: Mexico

Technical Specifications

• Color: Light Almond
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL20, FEDSPEC, CULUS
• UPC Number: 785007196641
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: Single Pole
• Horsepower Rating: 1 HP @ 120 VAC, 2 HP @ 240 VAC
• Throw Type: Single Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120/277 V
• ECCN: EAR99
• UNSPSC: 39122211
• Application: Commercial/Residential
• Mounting: Wall
• AWG Range: 14 - 10 AWG
• Rated Voltage: 120V
• Switch Style: Toggle
• Color Family: Tan
• Action: SP
• Actuator: Toggle
• Applications: Commercial,Residential
• Contact Rating: 120 V
• Duty Rating: Extra Heavy Duty
• Grade: Industrial
• Brand: Pass & Seymour
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007196641
• GTiN: 00785007196641
• Product UPC: 78500719664
• Operating Cycles: 50000
• Power Rating: 1 hp/2 hp
• Terminal Type: Screw
• Environmental Conditions: -40 to 115 deg C
• Certifications: CULUS,FEDSPEC
