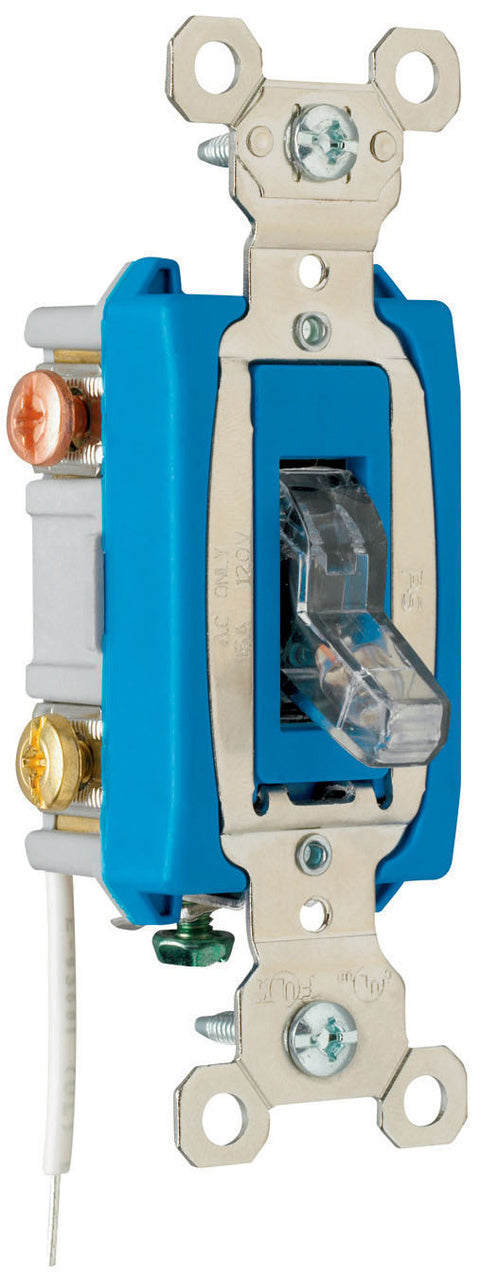

Pass & Seymour PS15AC3 3way Lighted Switch 15A 120/277V

Product Description

The Pass & Seymour PS15AC3 is a 3-way lighted switch with back and side wire, rated at 15A and 120/277V. Designed for industrial and commercial applications, this switch offers reliable performance and ease of installation. It is suitable for various load types including CFL, fluorescent, halogen, incandescent, LED, universal, and xenon.

• One-piece toggle molded from chemical-, impact-, and heat-resistant thermoplastic.
• Glass-reinforced, chemical-resistant thermoplastic back body for durability and strength.
• Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.

Product Highlights

Industrial grade 3-way lighted switch with durable thermoplastic construction and easy installation.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS15AC3
• Country of Origin: Mexico

Technical Specifications

• Amperage: 15 Amp
• Applications: Commercial, Industrial
• Contact Rating: 120 V
• Duty Rating: Extra Heavy Duty
• Grade: Industrial
• Indoor Outdoor: Indoor
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Material: Thermoplastic
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 3-Way
• Number of Switches: 1
• Switch Type: Toggle
• Type: Switch
• Voltage: 120 VAC, 277 VAC
• Brand: Legrand
• Sub Brand: Pass & Seymour
• Finish: Matte
• Product UPC: 78500726041
• UNSPSC: 39121507
• Depth: 1.073 Inch
• Height: 3.281 Inch
• Width: 1.320 in
• Certifications: CULUS, FEDSPEC
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Pilot Light: Yes
• Wall Plate Included: No
• Standard: UL 20, FEDSPEC
• Product Depth US: 1.09 in
• Product Height US: 4.195 in
• Product Width US: 1.25 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 15 A @ 120/277 VAC
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
