Description

Product Description

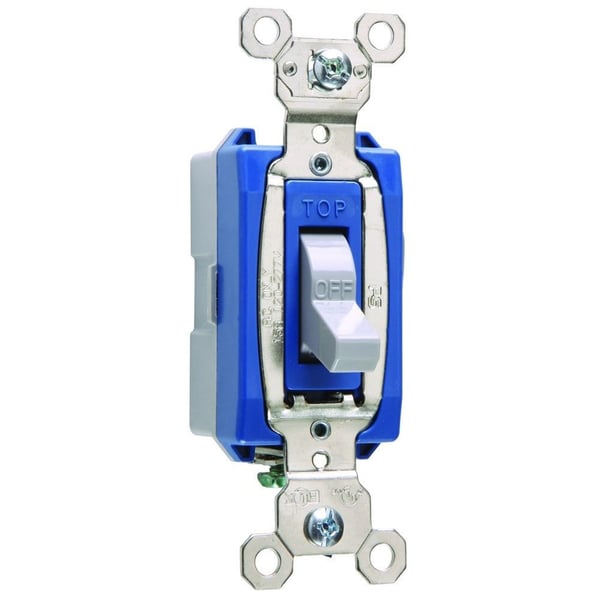

The Pass & Seymour PS15AC1-GRY is an industrial extra heavy-duty specification grade switch. Its one-piece toggle is molded from chemical, impact, and heat-resistant thermoplastic. The cover is impact and chemical-resistant, and the back body is glass-reinforced thermoplastic for durability and resistance to harsh cleaners.

  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Auto-ground clip assures positive ground.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.

Product Highlights

This switch features oversized silver-alloy contacts for long life and better heat dissipation and a shallow design for easier installation.

Product Information

Standard Information

  • Brand: Pass & Seymour
  • Manufacturer Part Number: PS15AC1-GRY
  • Country of Origin: Mexico
Technical Specifications
Color
Gray
Type
Heavy Duty
Material
Thermoplastic
Finish
Matte
Application Sector
Commercial, Industrial
Product Line
Pass & Seymour
Chemical Resistant
Yes
Wall Plate Included
No
Number of Switches
1
Switch Type
Toggle
Standard
UL 20, FEDSPEC
UPC Number
785007196511
Product Depth US
1.073 in
Product Height US
3.281 in
Product Width US
1.32 in
cULus ListingNumber
140597
cULus Listed
Yes
Amperage
15 A
Connection Location
Back and Side
Requires Neutral Wire
No
Wire Connection Type
Screw Terminals
Indoor/Outdoor
Indoor
Load Rating
15 A @ 120/277 VAC
Load Type
CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
Single Pole
Throw Type
Single Throw
Terminal Accommodation
#14 AWG - #10 AWG
Voltage
120 VAC, 277 VAC
Mounting
Wall
Operating Cycles
50000
Actuator
Cam/Spring/Toggle
Amperage Rating
15 A
Catalog ID
P-SPS15AC1-GRY
Dimensions
3.3 in H x 1.32 in W x 1.073 in D
Environmental Conditions
-40 to 115 deg C
Power Rating
1/2 hp/2 hp
Terminal Type
Screw
Voltage Rating
120/277 VAC
Application
For industrial uses such as health care, education and institutional
Standard & Approvals
CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed
Applications
Commercial,Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Brand
Pass & Seymour
Sub Brand
Pass & Seymour
12-Digit UPC
785007196511
GTiN
00785007196511
Product UPC
78500719651
UNSPSC
39121507
Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in
Certifications
CULUS,FEDSPEC
Current Type
AC
Country of Origin
China
Category
Toggle Switches
