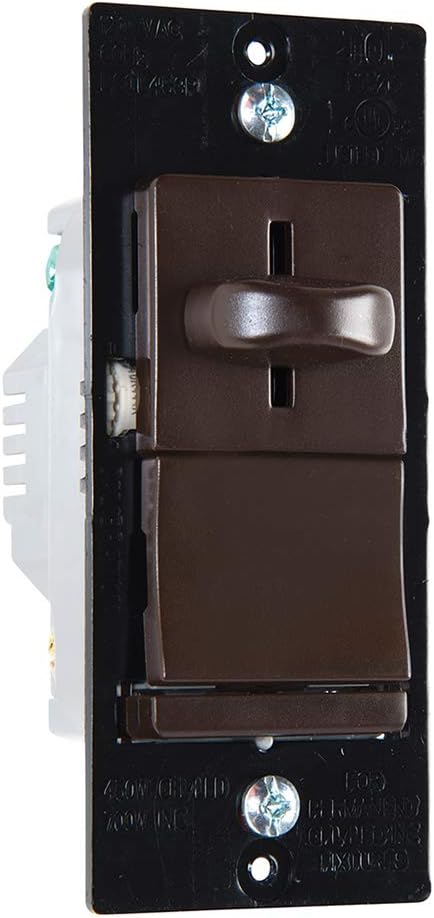

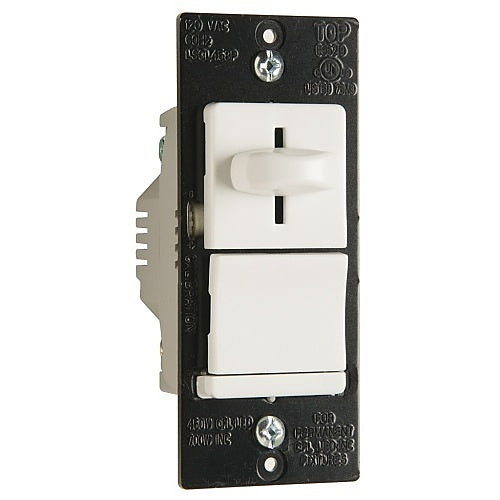

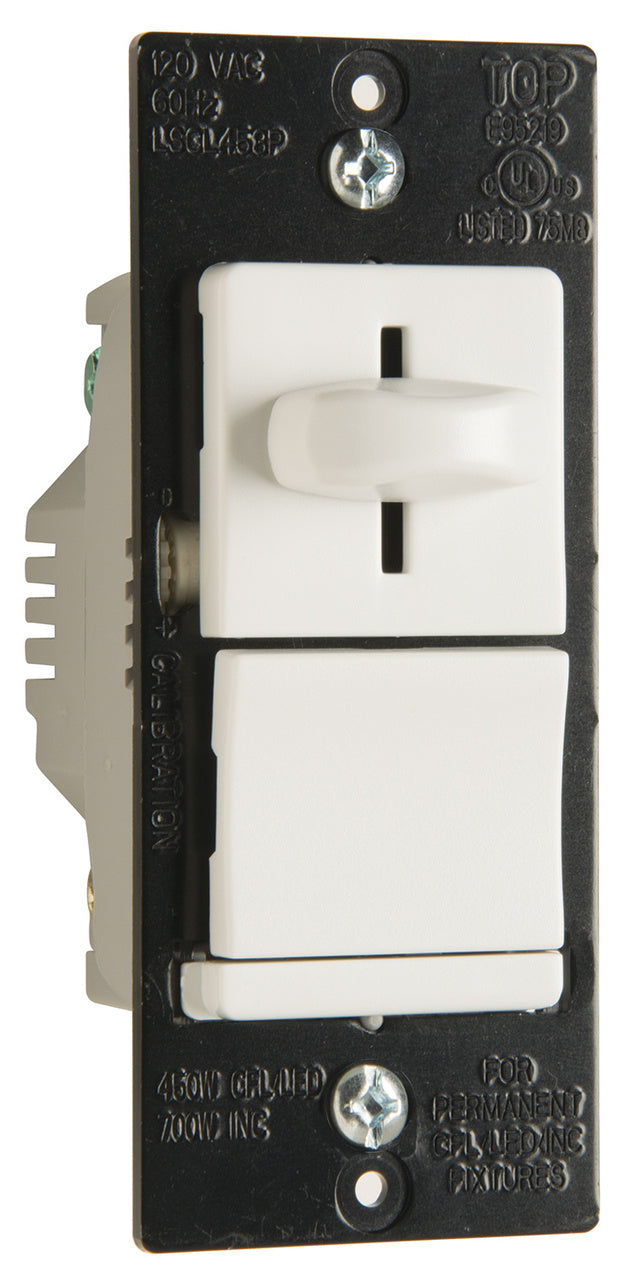

Pass & Seymour LSCL453P Ls Series Cfl/led/incandescent 3-Way Slide Dimmer 450W

Product Description

The PASS & SEYMOUR LSCL453P dimmer works with select dimmable CFL/LED or incandescent lighting loads. It features a sleek, sculpted ergonomic design for smooth, easy operation and precise control. This dimmer is compatible with CFL/LED dimmable bulbs, except for 0-10V LED drivers, and supports single pole and 3-way versions. It is designed for residential applications.

• CFL/LED dimmable bulb compatible (except for 0-10V LED drivers)
• Single pole/3-way versions
• Unique integrated single pole/3-way dimmer control

Product Highlights

This dimmer switch offers precise lighting control for residential settings, enhancing ambiance and reducing energy consumption.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: LSCL453P
• Country of Origin: China

Technical Specifications

• Color: Brown
• Type: Dimmer
• Material: Steel, Thermoplastic
• Finish: Matte
• Application Sector: Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Number of Switches: 1
• Switch Type: Slider
• Warranty Type: Limited Lifetime Warranty
• Standard: cULus, RoHS
• UPC Number: 785007040401
• Product Depth US: 1.28 in
• Product Height US: 4.19 in
• Product Width US: 1.74 in
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Dimming Compatibility: Forward Phase
• Environmental Conditions: Humidity: Less than 95% non condensing
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Load Rating: 120V 4.5A 450W (CFL), 120V 4.5A 450W (LED), 120V 700W (Halogen), 120V 700W (Incandescent)
• Load Type: CFL, Halogen, Incandescent, LED
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3-Way
• Maximum Humidity: 95% (relative humidity, non-condensing)
• Preset: Yes
• Voltage: 120 VAC
• Wire Size: #14 - #10 AWG
• Brand Name: Pass & Seymour by Legrand
• ADI Part Number: H4-LSCL453P
• Operating Voltage: 120 Volts
• Connector Type: Screw
• Terminal: Screw
• Circuit Type: 3-way
• Actuator Type: Slider
• Wattage: 450 watts
• Unit Count: 1 Count
• Number of Items: 1
• Manufacturer: Legrand Pass & Seymour
• Compatible Devices: Dimmable LED, CFL, Incandescent light bulbs
• Part Number: LSCL453P
• Item Package Quantity: 1
• Included Components: Installation Guide
• Dimensions: 1.28 in L x 1.74 in W x 4.19 in H
• Lamp Type: CFL/Incandescent/LED
• Power Rating: 450 W
• Series: LS Series
• Temperature Rating: 0 to 40 deg C
