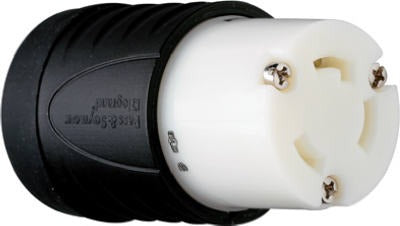

Pass Seymour L630CCCV3 Locking Connector 30A 250V

Product Description

The PASS SEYMOUR L630CCCV3 is a locking connector rated for 30 amps and 250 volts, built to NEMA L6-30R configuration. It features a 2-pole, 3-wire grounding design in a black and white finish. High-strength brass alloy blades resist heat rise under sustained load, making this connector suitable for demanding industrial and commercial branch-circuit applications. The amperage, voltage, and NEMA rating are hot-stamped directly on the device for fast, accurate field identification. Licensed electricians and industrial maintenance technicians install this connector in fixed and portable wiring assemblies where a twist-lock, grounding-type connection is required.

This connector is appropriate for use in residential, commercial, and light industrial settings where a NEMA L6-30R locking outlet connection is specified. Typical applications include generator hookups, HVAC equipment feeds, compressors, and other 250-volt, 30-amp single-phase loads. Color-coded wiring terminals are back-out style, meaning terminals are pre-positioned and ready to accept conductors without additional preparation, reducing termination time in the field. The unit is sold in a box quantity of 3.

Key Features

• NEMA L6-30R configuration — 2-pole, 3-wire grounding, twist-lock retention
• High-strength brass alloy blades engineered to resist heat rise under continuous load
• Color-coded, back-out wiring terminals for faster, error-reduced termination
• Amperage, voltage, and NEMA rating hot-stamped on device for clear field identification
• Listed to UL standards, Federal Specification, and CSA certified
• Packaged in quantities of 3 per box

Compatibility

Designed for use with NEMA L6-30R locking connector applications. The matching plug is True Value part 602-224. Verify wiring configuration and panel ratings before installation.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit at the panel before beginning any wiring work. Use conductors sized appropriately for a 30-amp, 250-volt circuit and torque terminations per the conductor and terminal manufacturer guidelines. Do not exceed the device ratings for sustained amperage or voltage.
