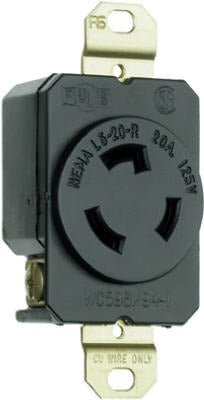

Pass Seymour L520RCCV3 Locking Outlet 20A 125V Nema L5-20R

Product Description

The PASS SEYMOUR L520RCCV3 is a NEMA L5-20R twist-locking outlet rated for 20 amps at 125 volts. It features a 2-pole, 3-wire grounding configuration and is built for reliable performance in demanding electrical installations. The face and body are molded from compact, impact-resistant nylon for durability in tight or high-traffic locations. Internal contacts are one-piece high-grade brass for consistent conductivity and long service life. Each unit ships in a window box and arrives with a clearly marked NEMA configuration rating and third-party listing directly on its face. Licensed electricians install this outlet in commercial, industrial, and light commercial settings where a secure, non-pull-out connection is required.

This outlet is suited for applications requiring a locking-style receptacle to prevent accidental disconnection under load. Typical installations include generator hookups, portable equipment circuits, temporary power distribution panels, and industrial machinery feeds. The L5-20R configuration is a widely specified standard in commercial electrical work. This package contains 3 outlets, making it practical for multi-outlet rough-in jobs or stocking service vehicles.

Key Features

• NEMA L5-20R twist-locking configuration prevents accidental cord disconnection
• Rated 20 amps at 125 volts with 2-pole, 3-wire grounding
• Impact-resistant nylon face and body withstands physical abuse in commercial environments
• One-piece high-grade brass contacts for reliable, low-resistance connections
• NEMA configuration rating and third-party listing printed on each outlet face
• UL listed, CSA certified, and meets Federal Specification requirements
• Sold as a pack of 3 outlets

Compatibility

Designed as an OEM-style replacement or new-installation locking receptacle compatible with NEMA L5-20R plug configurations in 20-amp, 125-volt single-phase circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring. Follow all applicable box-fill and grounding requirements for the enclosure type used. Do not exceed the 20-amp circuit rating.
