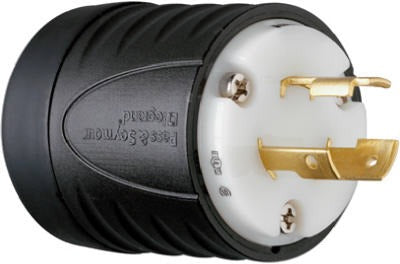

Pass Seymour L520PCCV3 Locking Plug 20A 125V Nema L5-20P

Product Description

The PASS SEYMOUR L520PCCV3 is a NEMA L5-20P locking plug rated for 20 amps at 125 volts. It features a 2-pole, 3-wire grounding configuration designed for secure, twist-lock electrical connections in demanding service environments. High-strength brass alloy blades resist heat rise under sustained load, and the amperage, voltage, and NEMA rating are hot-stamped directly on the device body for fast, clear field identification. This plug is intended for use by licensed electricians and qualified electrical contractors on commercial and industrial power circuits where a secure, non-pull-out connection is required.

The L520PCCV3 is suited for portable power applications in commercial buildings, light industrial facilities, and job-site environments where 125-volt, 20-amp locking connections are specified. Its color-coded, back-out-ready wiring terminals speed up termination work during initial installation and service calls. The plug ships in a box quantity of 3 units, making it practical for multi-outlet or multi-circuit installations. The matching connector is True Value 602-006.

Key Features

• NEMA L5-20P twist-lock configuration prevents accidental disconnection under load
• High-strength brass alloy blades resist heat rise at sustained 20-amp draw
• Color-coded wiring terminals are back-out ready for faster, more accurate termination
• Amperage, voltage, and NEMA rating hot-stamped on device body for clear identification
• UL listed, CSA certified, and meets Federal Specification requirements
• Sold in a box of 3 units

Compatibility

Designed for use with NEMA L5-20P locking receptacles and connectors rated 20 amps at 125 volts. Matching connector is True Value 602-006.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before wiring the plug. Use the color-coded terminals to guide conductor termination and verify polarity and ground continuity before restoring power. Do not exceed the 20-amp, 125-volt rating of the device.
