Pass & Seymour L520FI Turnlok Flanged Inlet 3-Phase Locking Flanged Inlet 20A 125V

Product Description

Pass & Seymour L520FI is a locking flanged inlet designed for use in commercial applications. This inlet offers reliable electrical connectivity while ensuring durability. The inlet is compatible with NEMA L5-20P configurations and operates at a voltage rating of one hundred twenty-five volts. It supports a three-wire connection and provides a safe working environment with its robust thermoplastic housing.

• Compatible with NEMA L5-20P configurations
• Rated for twenty amperes
• Constructed for dry locations

Product Highlights

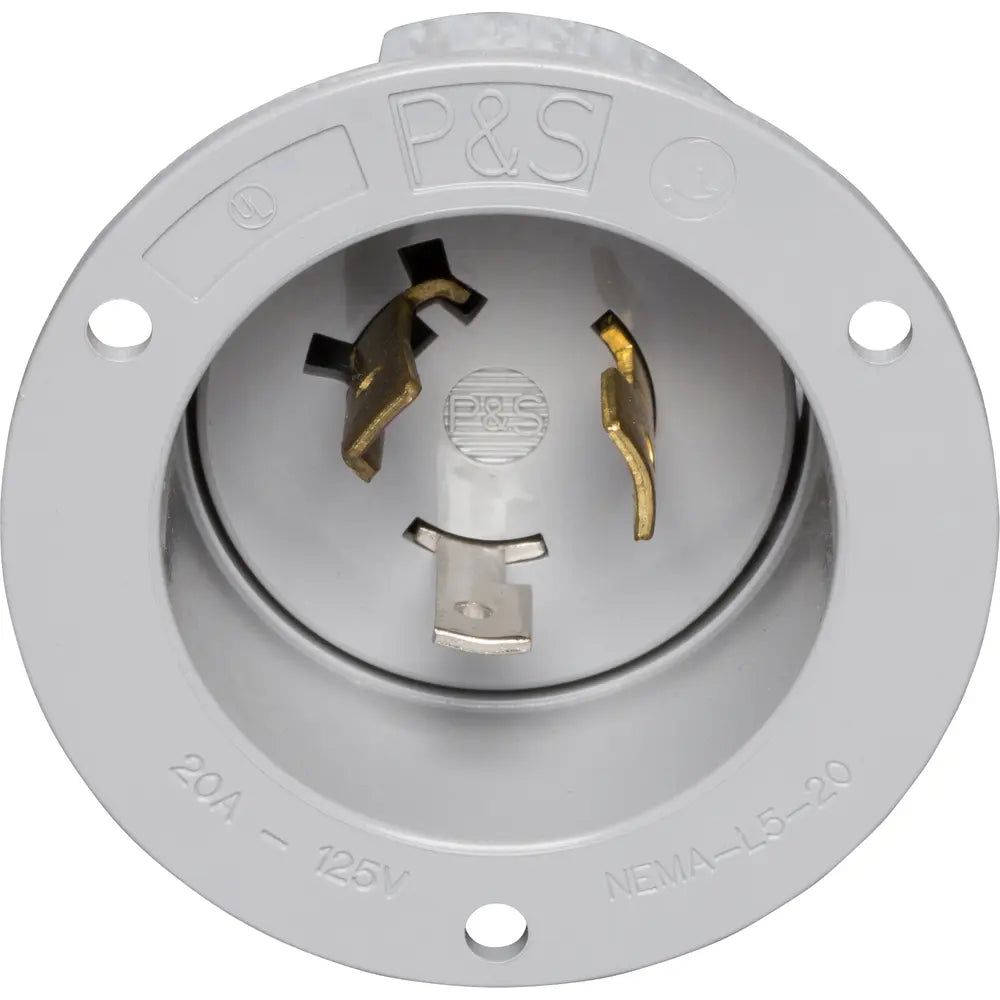

This inlet features visible ratings and NEMA configurations on the flange face for easy identification. It is designed for rugged use and has high-impact thermoplastic housing that withstands job site conditions.

Product Information

Standard Information

• Brand: Pass & Seymour
• MPN: L520-FI

Technical Specifications

• Amperage Rating: 20 Amperes
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Phase: 3-Phase
• Color: Gray
• Material: Thermoplastic
• Diameter: 3.1 inches
• Depth: 1.65 inches
• Weight: 0.23 pounds
• Wire Size: 18 AWG to 10 AWG
• Connection: Twist Lock
• Country of Origin: MX
