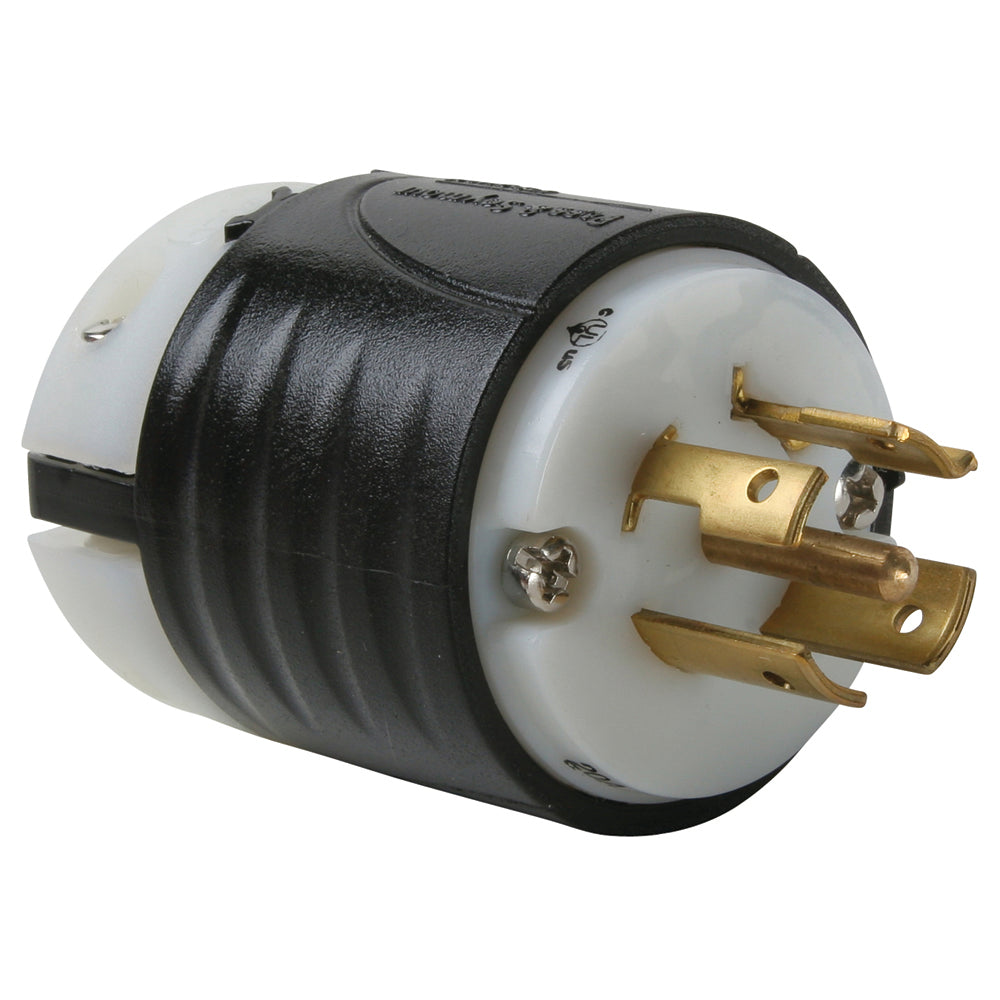

Pass & Seymour L2220-P Plug 20A 277/480V T/L

Product Description

The PASS & SEYMOUR L2220-P is a plug designed for 277/480V T/L applications. This plug features quick-thread assembly screws and cord-grip screws that come backed-out, ready-to-wire. The industrial-strength, brass alloy plug blades and connector contacts resist heat rise and provide excellent conductivity. Ideal for commercial applications.

• Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
• Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
• Raised ribs provide non-slip gripping profile for turning to lock and unlock.

Product Highlights

20A 277/480V plug with durable nylon 6 shell material. Features a double dovetail design for superior cord pull-out protection.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: L2220-P
• Country of Origin: Mexico

Technical Specifications

• Type: Plug
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Locking: Yes
• Standard: UL 498
• UPC Number: 785007222043
• Product Length US: 2.57 in
• Product Width US: 2.2 in
• cULus ListingNumber: 146159
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A
• Flanged: No
• Number of Phases: 3
• Connector Style: Locking
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: L22-20P
• Number of Poles: 4-Way
• Number of Wires: 5
• Terminal Accommodation: #18 AWG - #10 AWG
• Voltage: 277/480 VAC
• Conductor Size: 18-10 AWG
• Material: Thermoplastic
• NEMA: L22-20P
• Wire Size: 18-10 AWG
• Sub Brand: Pass & Seymour
• Product UPC: 78500722204
• UNSPSC: 39121403
• Certifications: CULUS
• Current Rating: 20 A
• Grade: Commercial
• Manufacturer Part Number: L2220P
• Primary Type: Twist Lock
• Series: L22 Series
• Termination: screw
• AWG Range: 18 - 10 AWG
• ECCN: EAR99
• Application: Commercial
• Amperage Rating: 20A
• Color Family: Black
• Dimensions Height: 2.4 in
• Dimensions Width: 2.5 in
• Dimensions Length: 4.75 in
• Voltage Rating: 277 V
