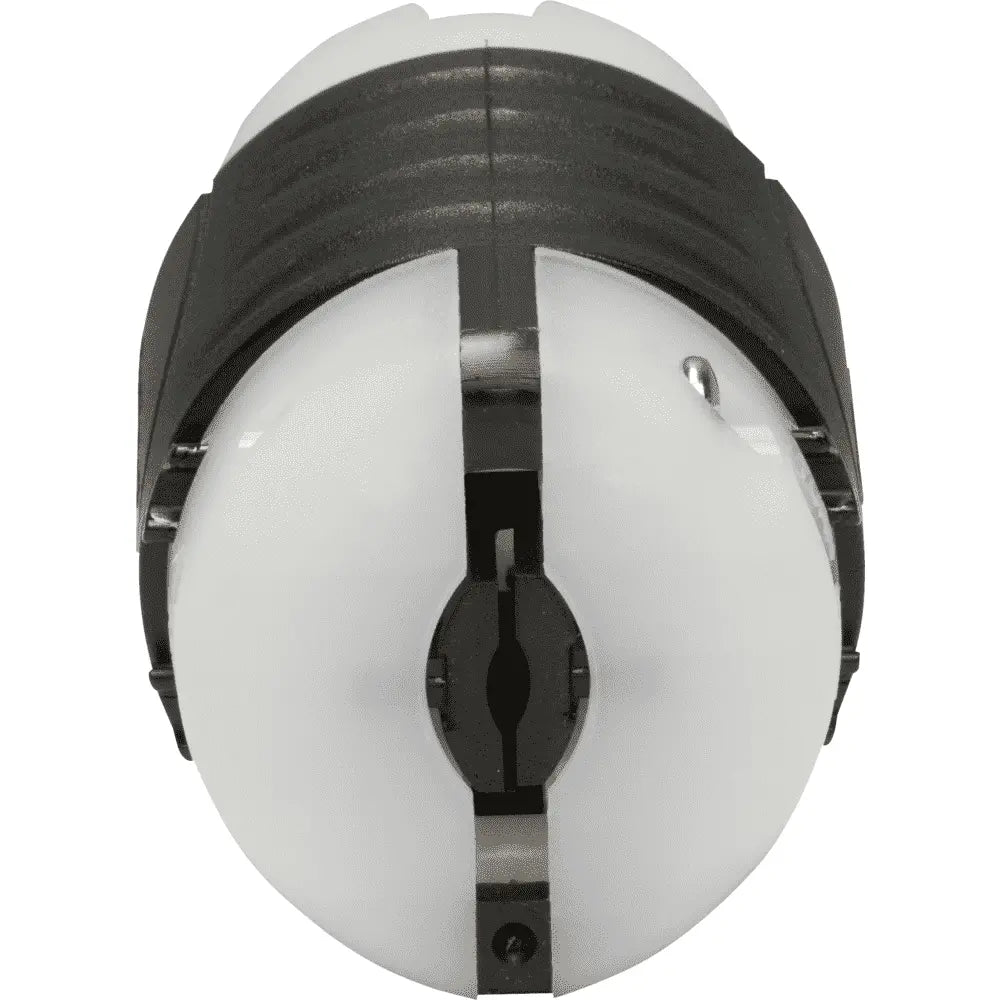

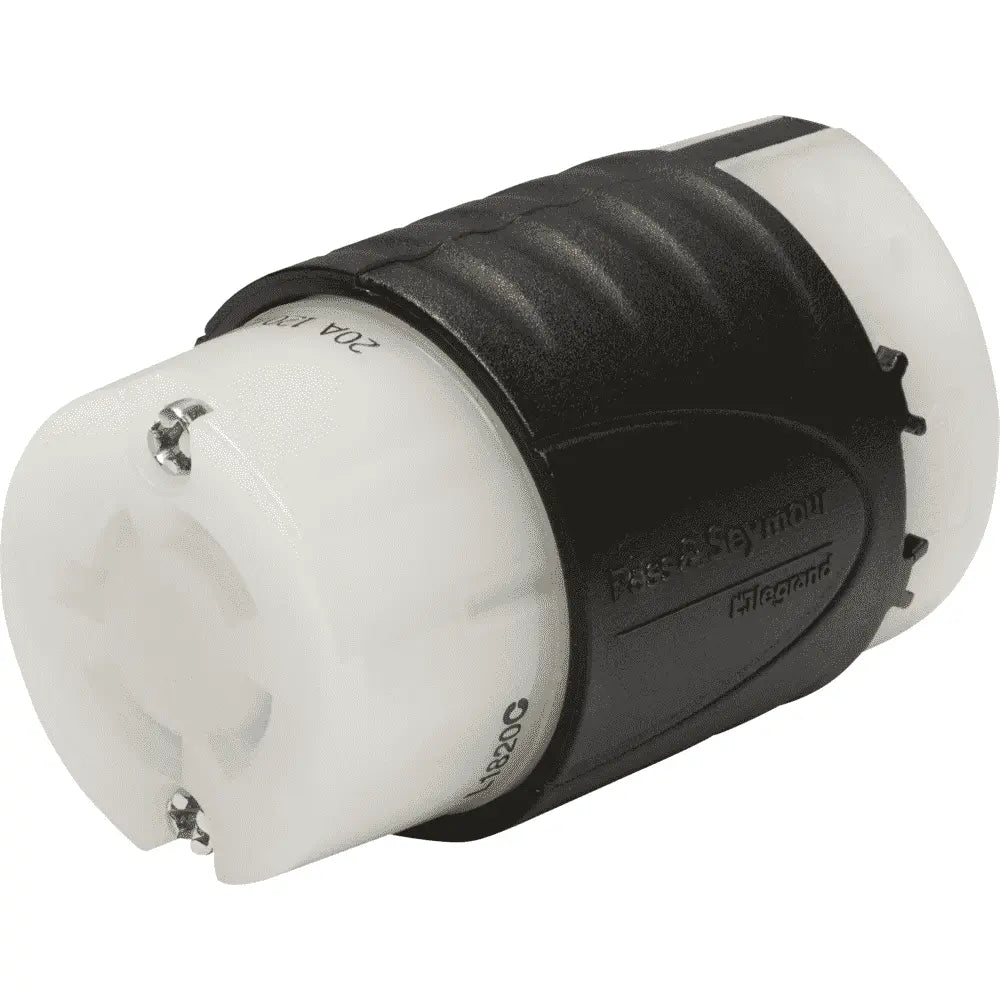

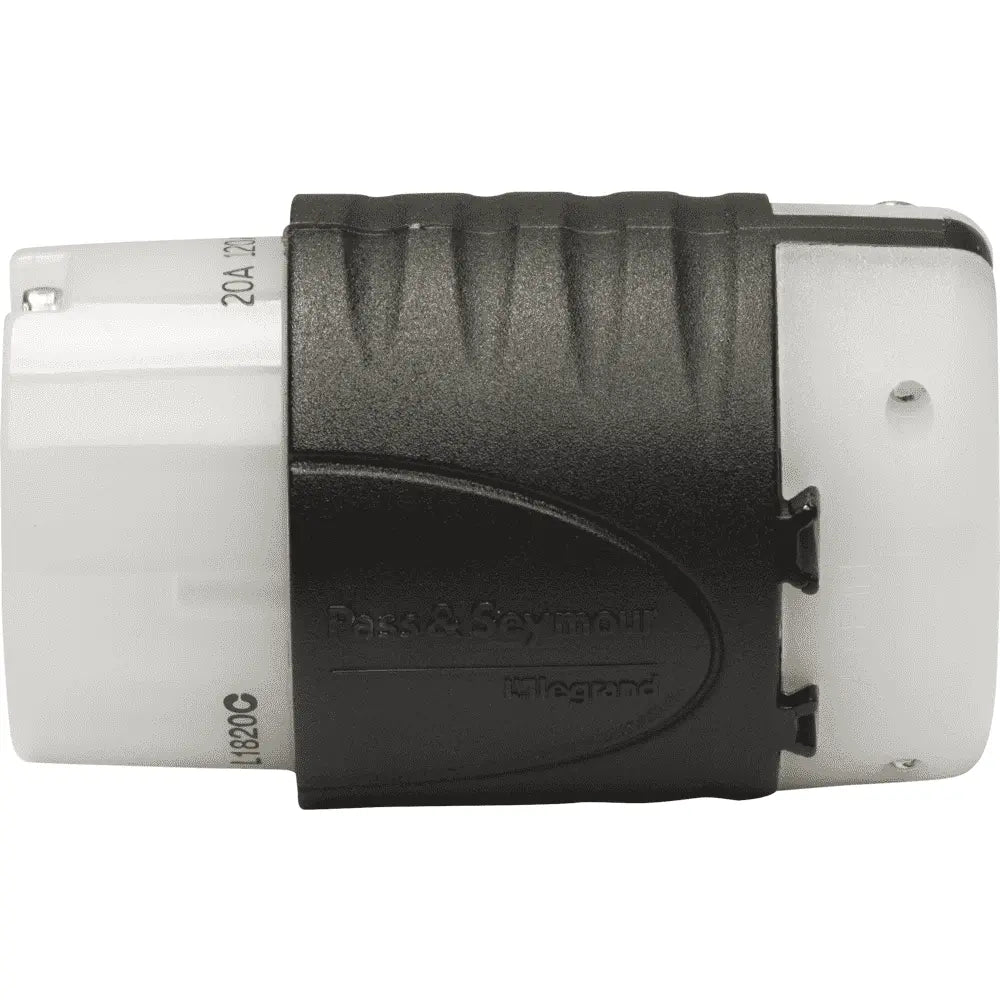

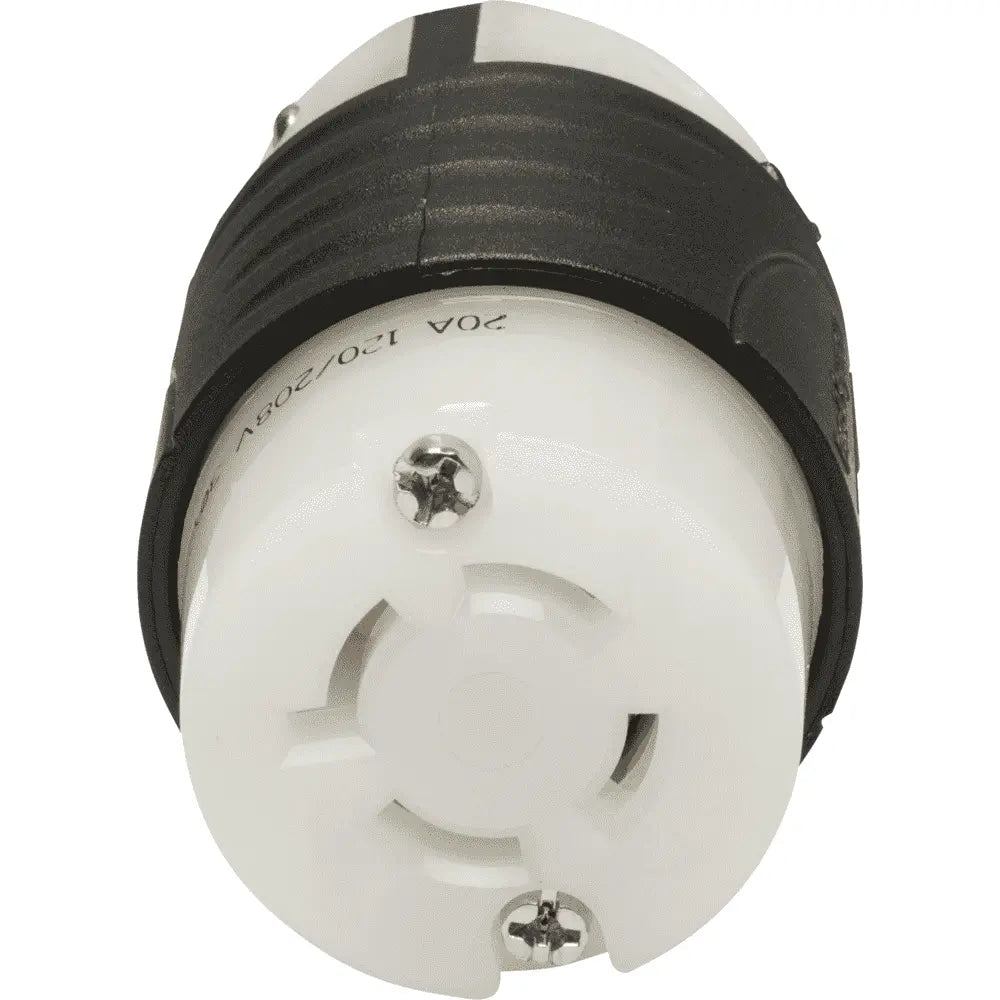

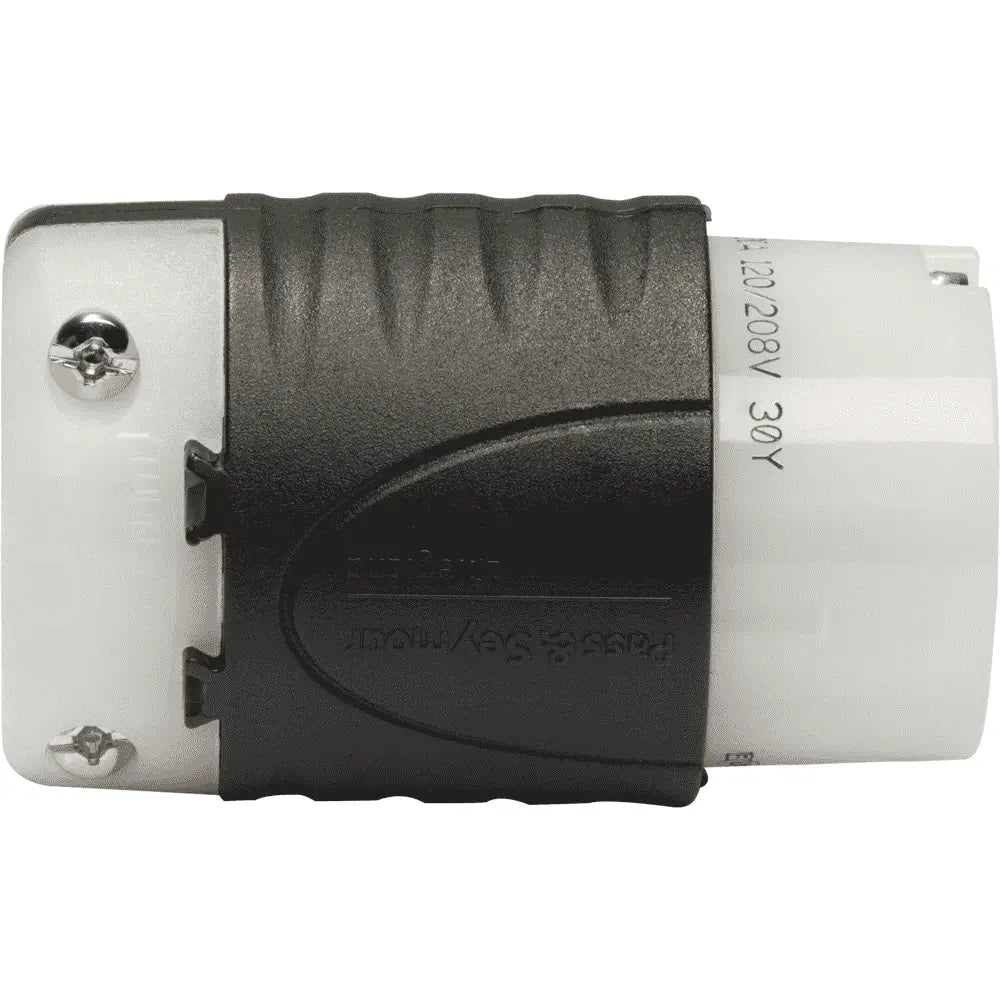

Pass & Seymour L1820C NEMA L1820 Connector, 20A, (1 Unit)

Product Description

The Pass & Seymour L1820C is designed for reliable electrical connections. This NEMA L1820 connector supports a current rating of twenty amperes and is built for industrial use with durable materials. It features quick-thread assembly screws and cord-grip screws that are ready to wire, making installation straightforward.

• Supports twenty amperes and is suitable for three-phase applications.
• Constructed with industrial-strength brass alloy for superior conductivity.
• Designed with raised ribs for easy gripping during locking and unlocking.

Product Highlights

The L1820C offers excellent performance in demanding environments. Its double dovetail design enhances protection against cord pull-out forces.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• MPN: L1820-C
• Type: Twist Lock Receptacles
• Color: Black, White
• Voltage Rating: 120/208 VAC
• Amperage Rating: 20 Amperes
• Wire Size: 18 AWG to 10 AWG
• Number Of Poles: 4-Pole
• Number Of Wires: 4-Wire
• Material: Thermoplastic
• Length: 3.33 Inches
• Diameter: 2.2 Inches
• Country of Origin: MX
