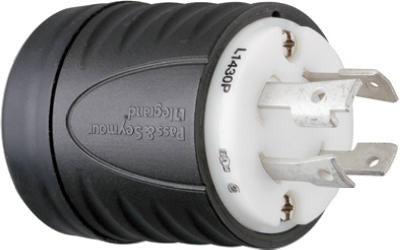

Pass Seymour L1430PCCV3 Locking Plug 30A Nema L14-30P

Product Description

The PASS SEYMOUR L1430PCCV3 is a NEMA L14-30P twist-locking plug rated at 30 amps and 125/250 volts. It features a 3-pole, 4-wire grounding configuration and is built for reliable performance in demanding electrical installations. High-strength brass alloy blades resist heat rise under sustained load. Wiring terminals are color-coded and ship back-out ready for fast, accurate termination. The amperage, voltage, and NEMA rating are hot-stamped directly on the device body for clear field identification. Licensed electricians install this plug on generator cords, transfer switch pigtails, and similar 30-amp locking-cord applications.

This plug is suited for residential and light commercial applications where a secure, twist-lock connection is required at 30 amps and 125/250 volts. Typical use cases include portable generator output cords, load bank connections, and manual transfer switch inlet wiring. The NEMA L14-30P configuration locks into any matching L14-30R receptacle or connector, preventing accidental disconnection under load. The matching connector for this plug is Pass Seymour True Value 674-739. This product ships in box quantities of 3 units per package.

Key Features

• NEMA L14-30P twist-locking design prevents accidental cord disconnection
• High-strength brass alloy blades engineered to resist heat rise at rated load
• Color-coded wiring terminals ship back-out ready for fast termination
• Amperage, voltage, and NEMA rating hot-stamped on device for clear identification
• 3-pole, 4-wire grounding configuration for safe 125/250V circuits
• UL listed, CSA certified, and meets Federal Specification requirements

Compatibility

Designed for use with NEMA L14-30R receptacles and connectors. The matching connector is Pass Seymour True Value 674-739.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for locking-type plugs and cord connectors. De-energize the circuit and confirm zero voltage at the cord or generator output before terminating wiring. Follow the device color-coding on terminals to ensure correct conductor placement. Do not exceed the 30-amp, 125/250-volt rating of this plug.
