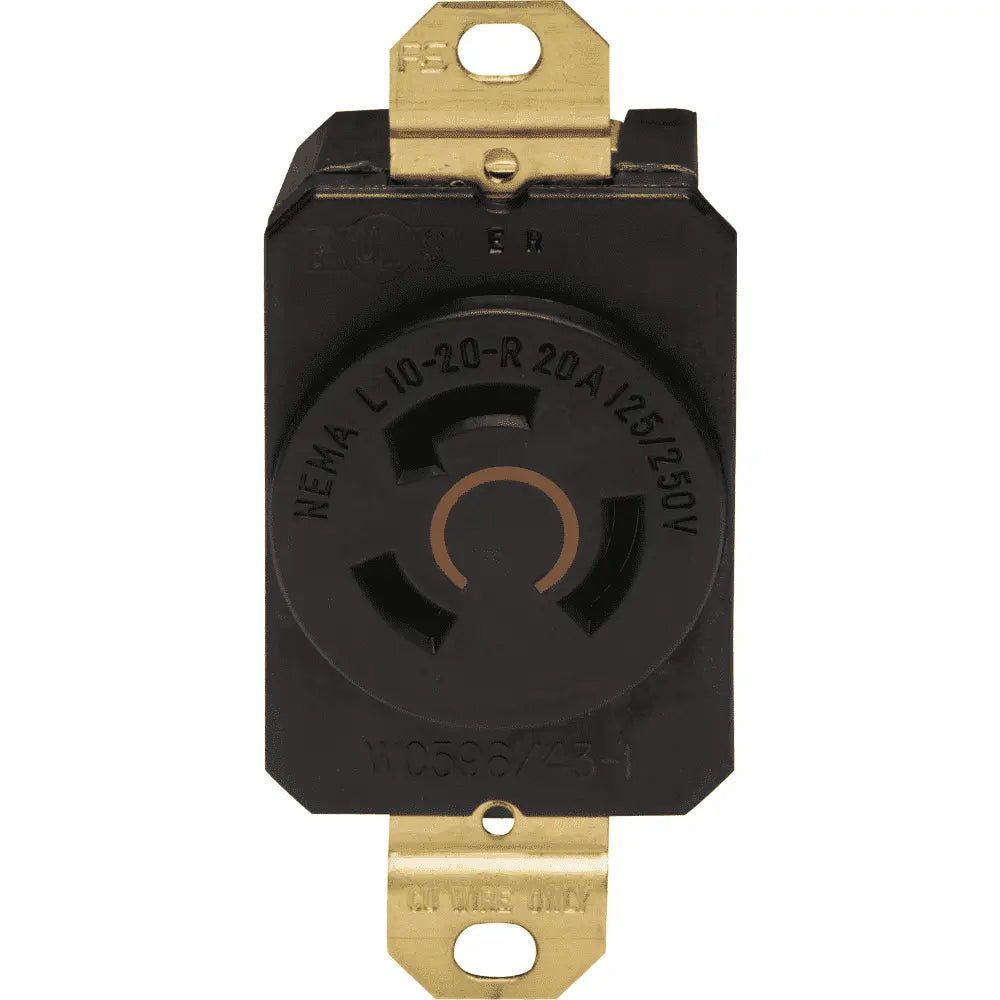

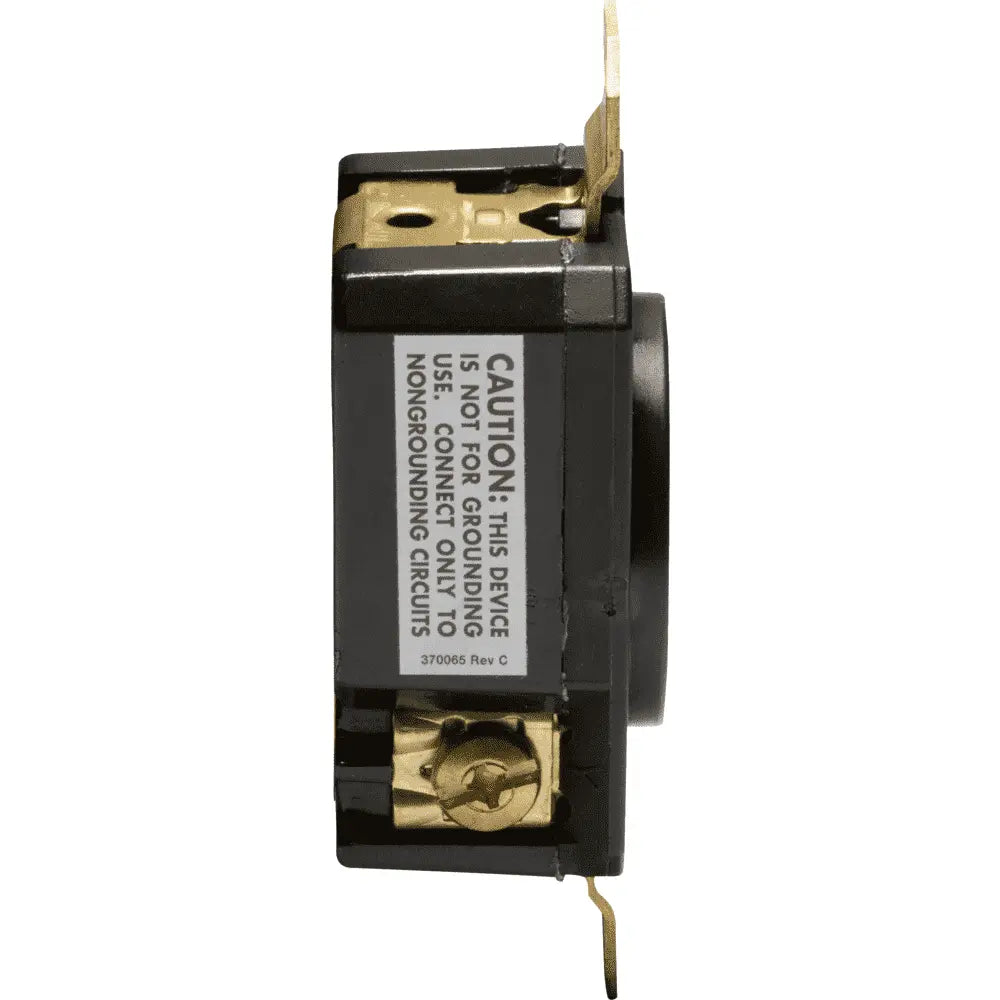

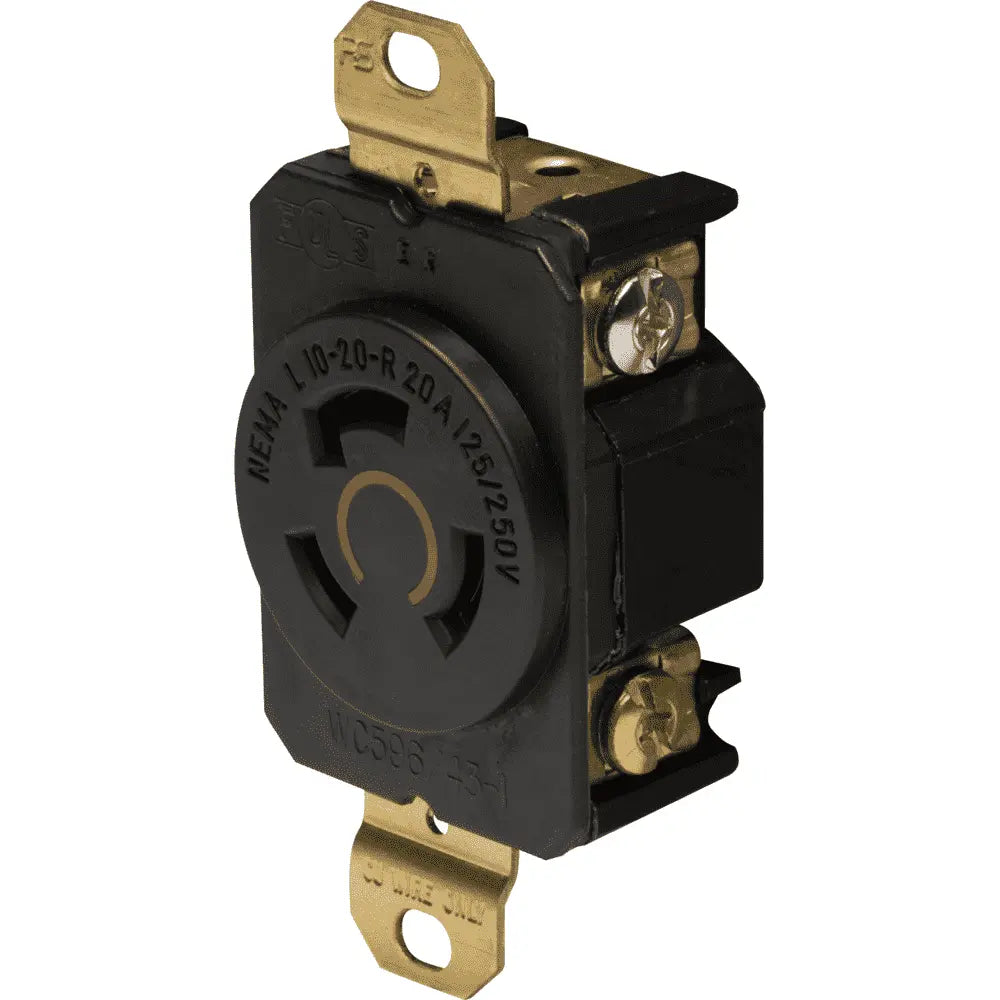

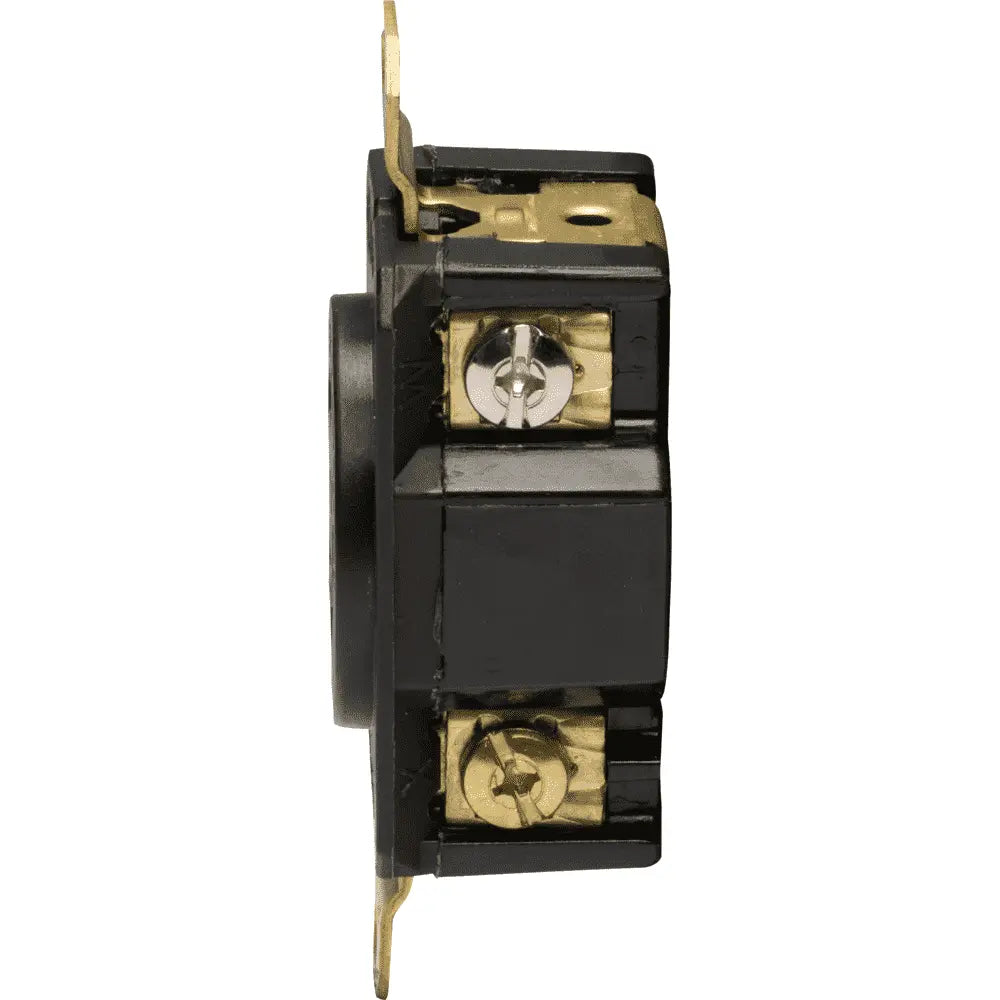

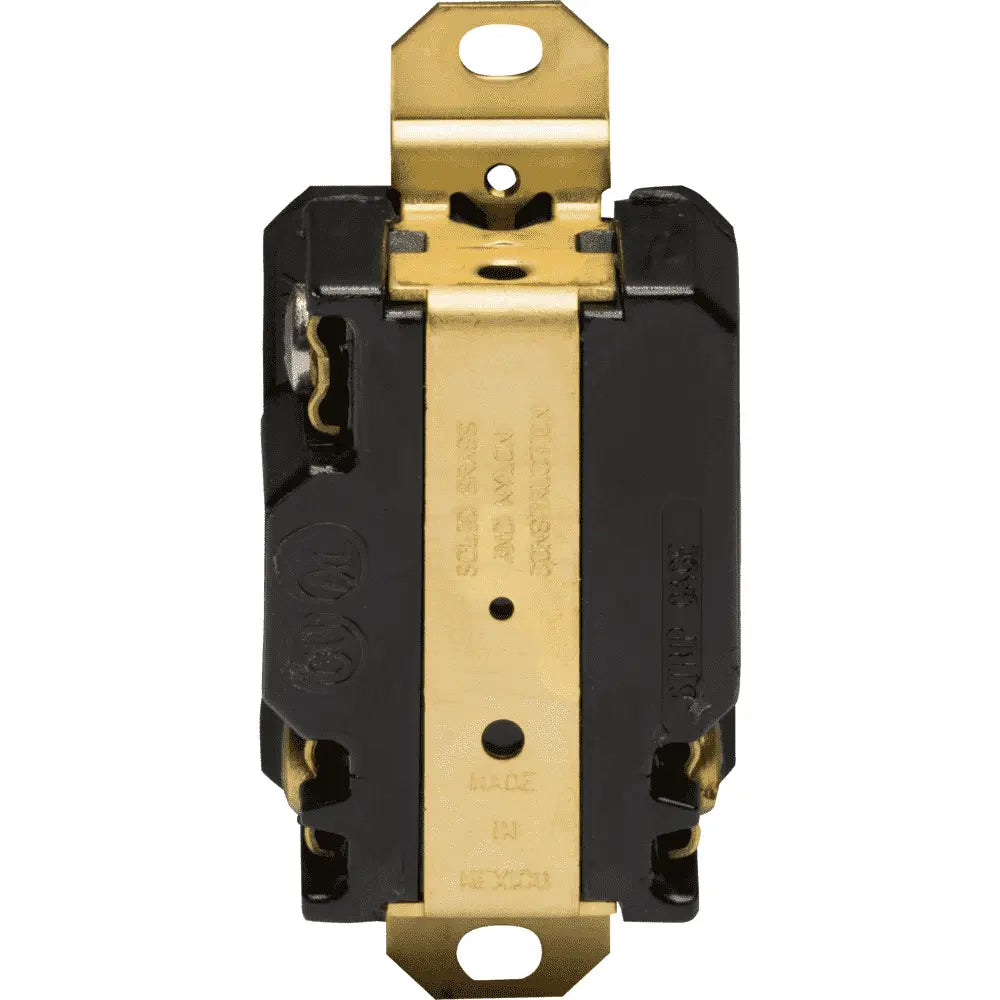

Pass & Seymour L1020-R Turnlok Single Receptacle 20A 125/250 VAC

Product Description

The Pass & Seymour L1020-R Turnlok Single Receptacle is designed for reliable power connection in commercial and industrial applications. This receptacle supports a voltage rating of one hundred twenty-five to two hundred fifty volts with an amperage capacity of twenty amperes. The nylon face and body provide durability, while the UL 498 listing ensures compliance with safety standards.

• Compact design for efficient use of space
• Color-coded face for easy voltage identification
• Compatible with various wire sizes from eighteen AWG to ten AWG

Product Highlights

This receptacle is ideal for Twist-Lock applications, providing secure and easy connections in dry locations.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour

Technical Specifications

• MPN: L1020-R
• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 Amperes
• Number of Poles: 3
• NEMA Rating: L10-20R
• Environmental Conditions: Dry Location
• Weight: 0.25 Pounds
• Dimensions: 3.28 Inches Height x 1.61 Inches Width x 1.19 Inches Depth
• Material: Thermoplastic
• Temperature Rating: -40 to 75 deg C
• Country of Origin: MX
