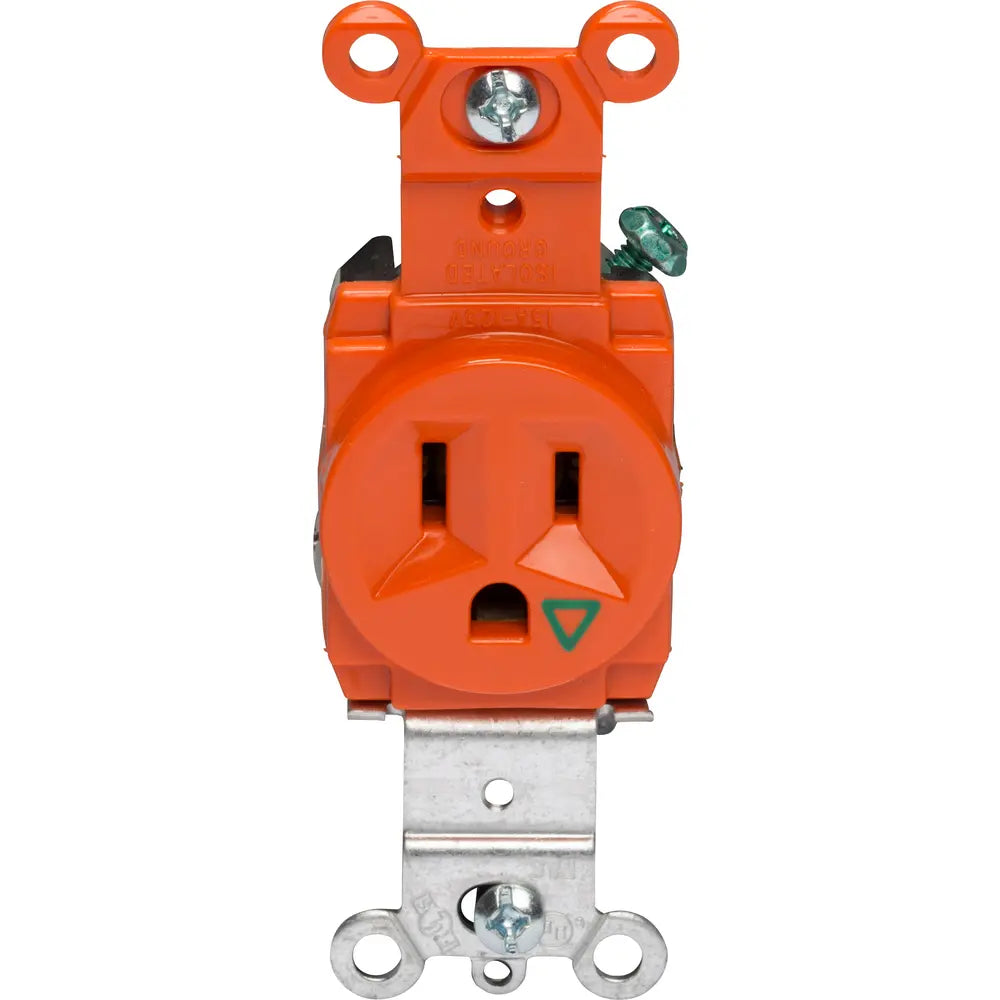

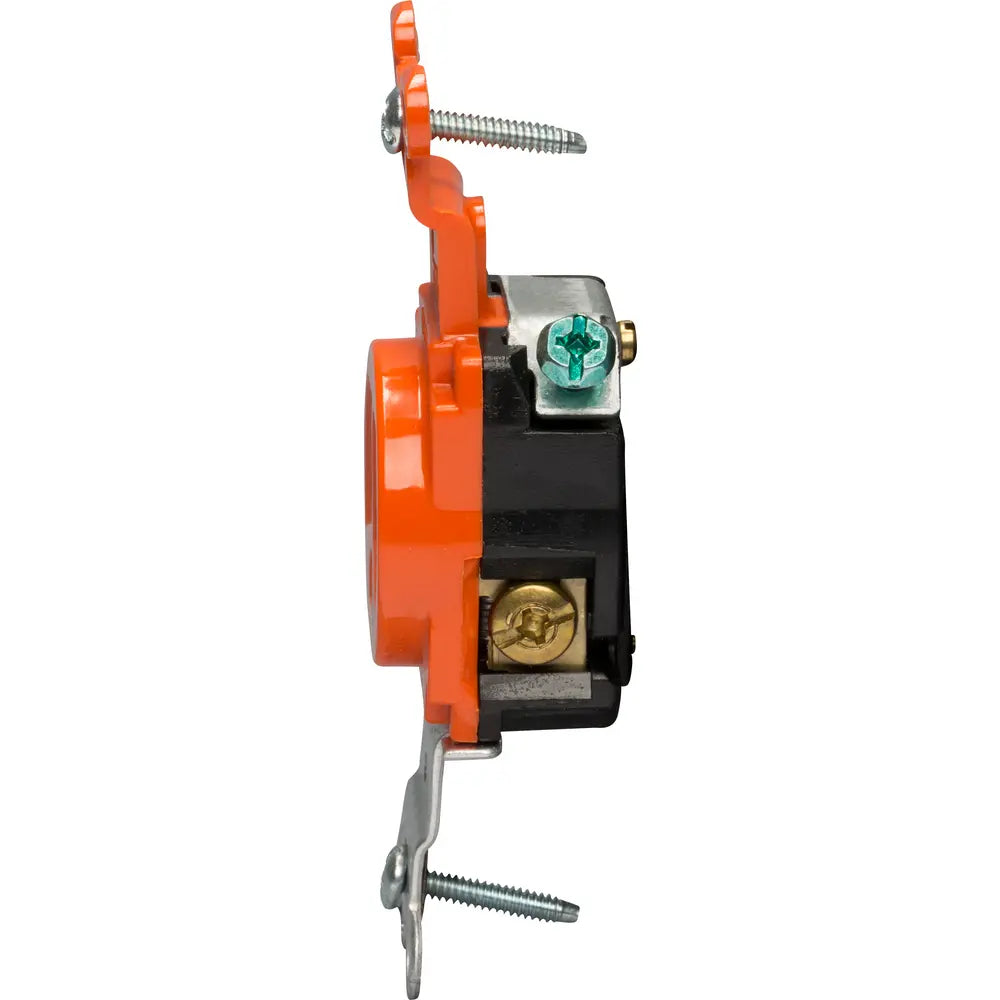

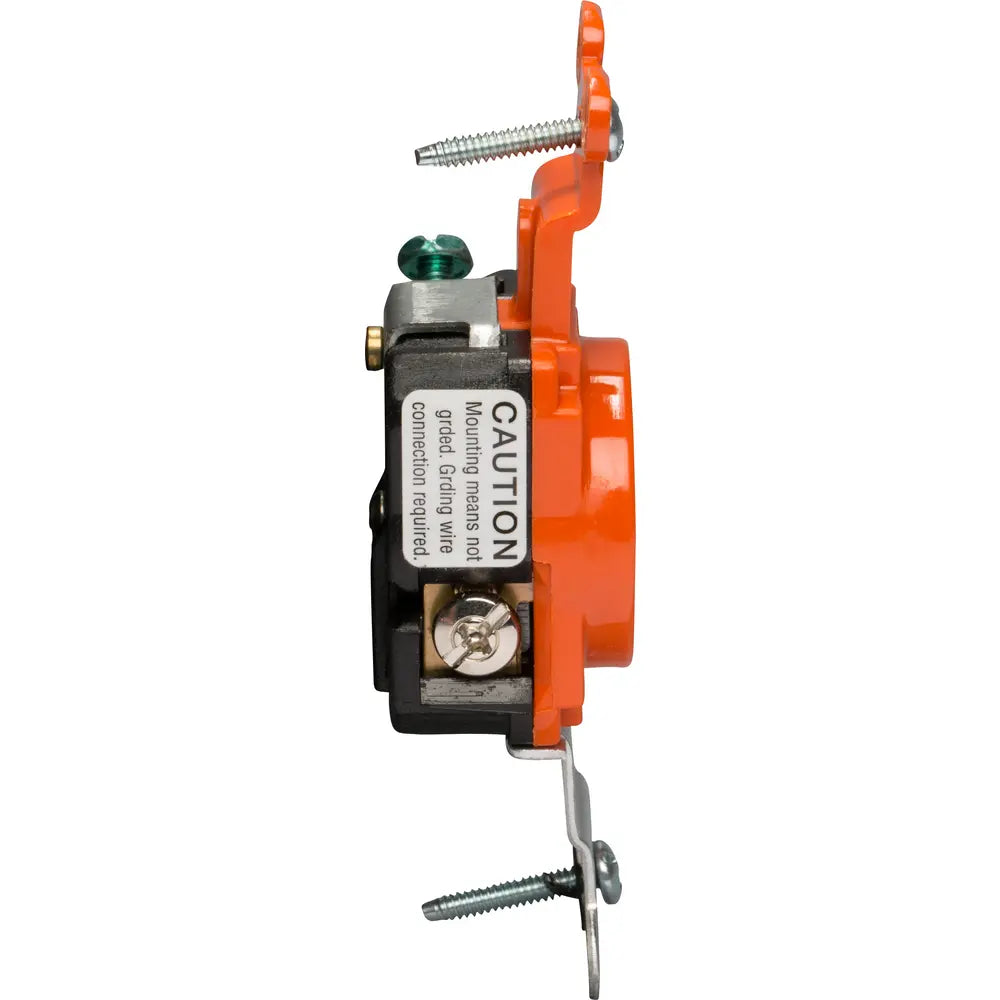

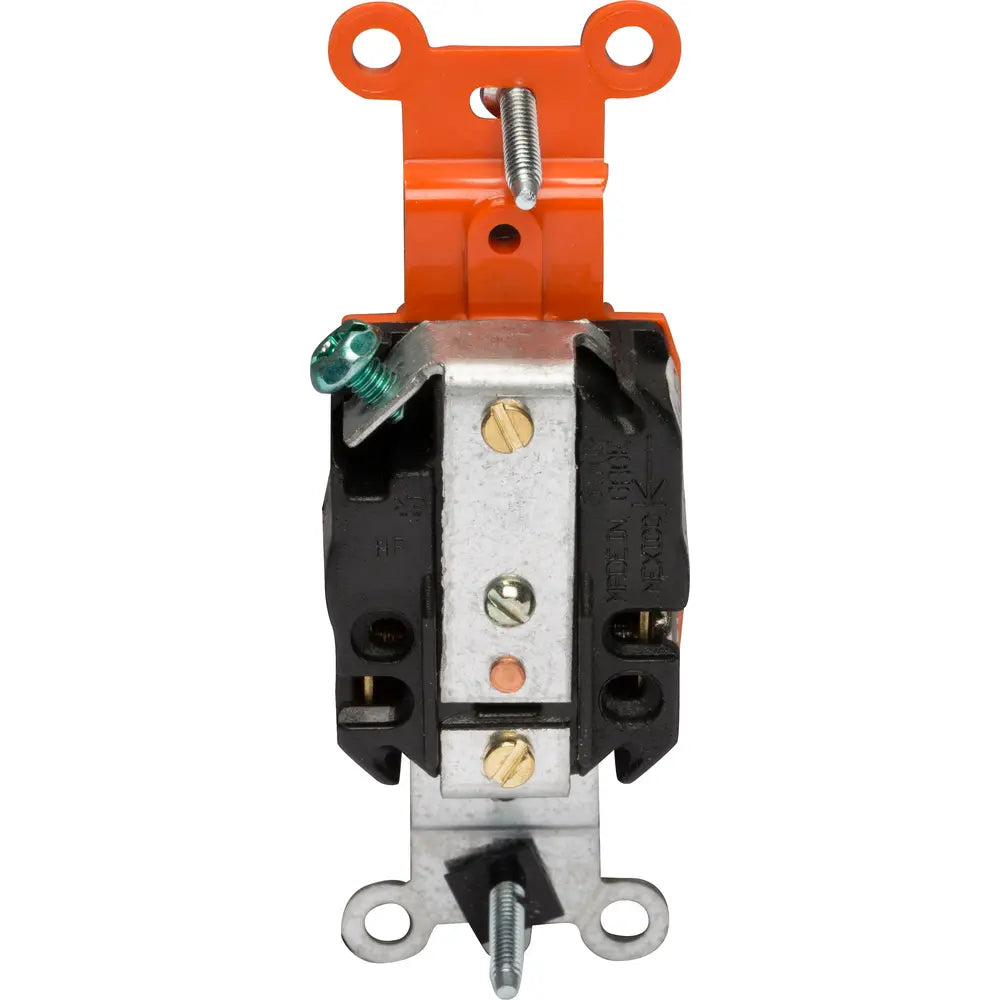

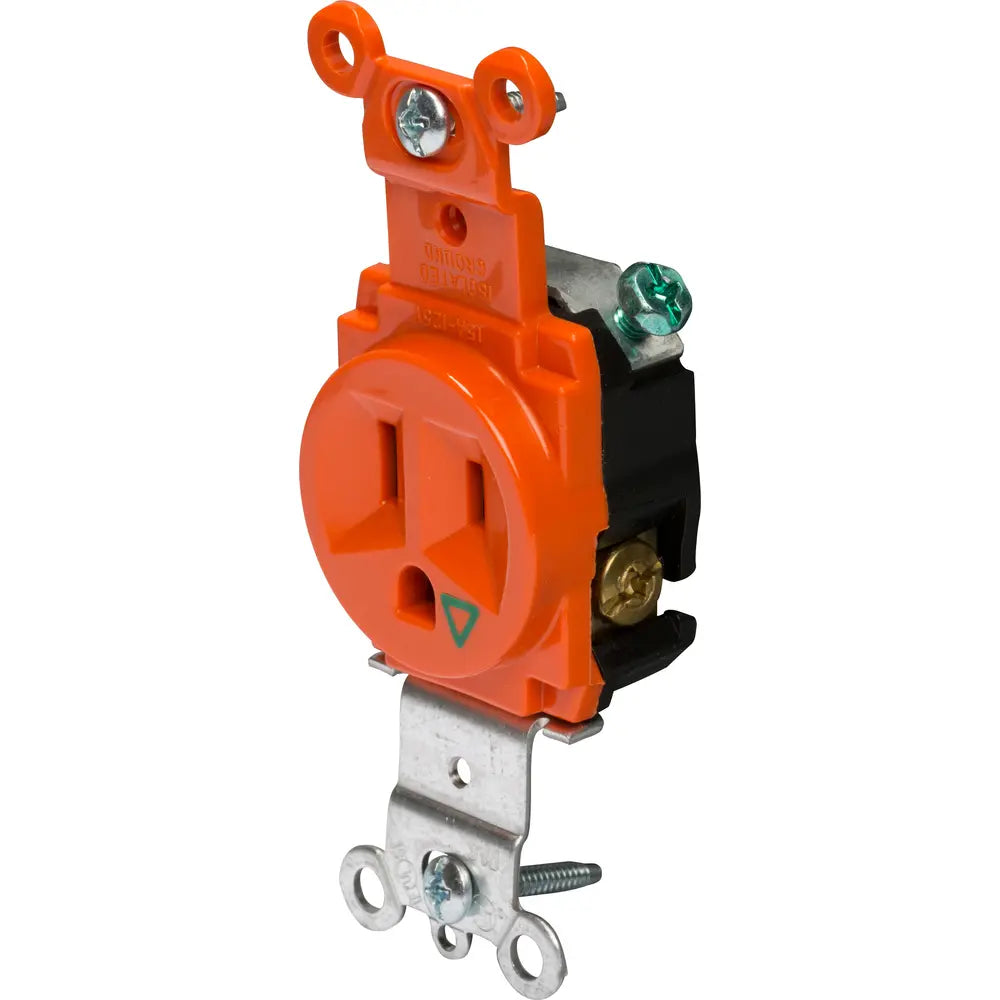

Pass & Seymour IG5261 Isolated Ground Heavy-Duty Spec Grade Single Receptacle, Back and Side Wire, 15A, 125 VAC, Orange

Product Description

The Pass & Seymour IG5261 isolated ground heavy-duty spec grade single receptacle is designed for back and side wire applications. It operates at 15 amps and 125 volts. Its high-impact resistant nylon face and corrosion-resistant plated steel strap provide durability for demanding environments.

• IG symbol for easy identification.
• Triple-wipe brass contacts offer secure connections.
• Temperature range of negative forty degrees to sixty degrees Celsius.

Product Highlights

This receptacle delivers robust performance with features tailored for commercial applications.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour

Technical Specifications

• Type: Isolated Ground Receptacle
• Color: Orange
• Weight: 0.17 Pounds
• Depth: 1.09 Inches
• Width: 1.32 Inches
• Height: 1.68 Inches
• Material: Thermoplastic
• Mounting: Screw
• Standard: UL498, CSA C22.2 No. 42
• Voltage Rating: 125 VAC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Connection: Back and Side Wire
• Wire Size: 14 AWG to 10 AWG
