Pass & Seymour CX-105 PIR Ceiling Occupancy Sensor 24 VDC 2000 sq. ft.

Product Description

The PASS & SEYMOUR CX-105 Passive Infrared (PIR) Ceiling/Wall Sensor detects occupancy to control lighting in a dense, wide-angle coverage pattern up to 2000 sq ft. It features adjustable time delay and sensitivity, and requires a power pack. The sensor is suitable for commercial applications.

• Turns lights on and off based on occupancy
• User-adjustable time delay and sensitivity
• ASIC technology reduces components and provides greater reliability

Product Highlights

PIR ceiling/wall sensor with adjustable settings, ideal for lighting control in commercial spaces. Requires a power pack for operation.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: CX-105
• Country of Origin: China

Technical Specifications

• Product Series: CX-100
• Type: Sensor
• Material: ABS
• Application Sector: Commercial
• Product Line: Wattstopper
• Country Of Origin: China
• Features: Adjustable Time Delay, Indicator Lights, Light Level Sensor, Power Pack Required, Sensitivity Adjustment

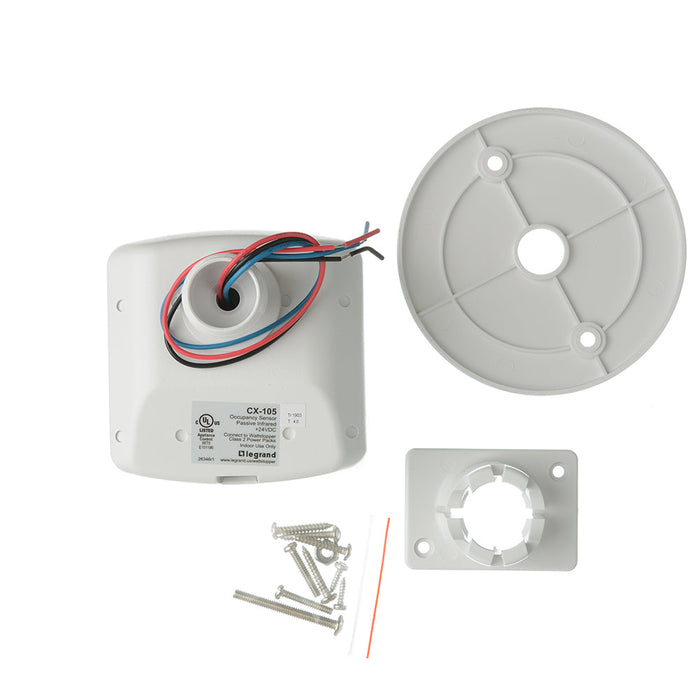

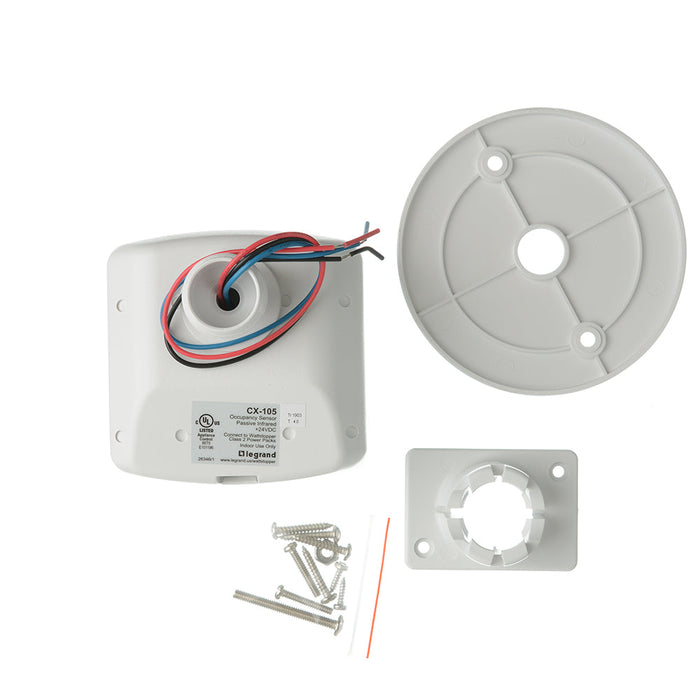

• Included: J-Box Cover Plate, Sensor Mask, Swivel Bracket
• Installation Location: Ceiling, Wall
• Warranty Type: 5-Year
• Standard: UL, cUL, ISO 9002
• UPC Number: 754182911394
• Product Depth US: 3.3 in
• Product Height US: 3.4 in
• Product Width US: 3.4 in
• RoHS Compliant: Yes
• Current Draw: 8 mA
• On Function: Auto On
• Wire Connection Type: Flying Leads
• Has Battery: No
• Indicator: LED Light
• Indoor/Outdoor: Indoor
• Input Voltage: 24 VDC/VAC
• Line Frequency: 60 Hz
• Mounting Type: J-Box, Surface, Swivel Bracket
• Sensing Range: 55 ft
• Sensitivity Adjustment: PIR (Min/Max)
• Sensor Type: Occupancy
• Sensor Technology: Passive Infrared (PIR)
• Sensor Coverage: 2000 sq ft
• Sensor Coverage Pattern: 100 °
• Sensor Mounting Height: 10 ft
