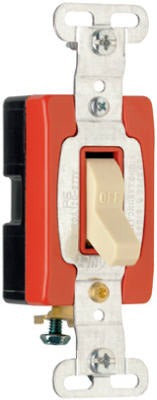

Pass Seymour CSB20AC1ICC8 Single Pole Toggle Switch 20A

Product Description

The PASS SEYMOUR CSB20AC1ICC8 is a 20-amp, 120/277-volt single pole toggle switch built to commercial and specification grade standards. Rated for both 120-volt and 277-volt circuits, it handles the voltage ranges common in commercial lighting and branch-circuit applications. The switch is constructed from high-impact resistant thermoplastic and has been tested to 25,000 on/off cycles, making it suitable for high-use environments. Termination is handled through a screw pressure plate design that accepts 14 through 10 AWG stranded and solid copper wire on both the back and side, giving installers flexibility in box fill and wiring approach. This package contains 8 units.

This switch is intended for commercial and specification-grade electrical installations where durability and code compliance are priorities. Typical applications include commercial lighting circuits, office buildings, schools, retail spaces, and similar facilities where 120-volt or 277-volt single-phase branch circuits are used. The ivory finish suits standard commercial device and cover plate configurations. It ships in a window box, making it easy to identify at the supply counter or on the job site.

Key Features

• Rated 20A at 120/277V for compatibility with commercial branch circuits
• Tested to 25,000 on/off cycles for long-term reliability in high-use locations
• Screw pressure plate termination accepts 14 through 10 AWG stranded and solid copper wire
• Back and side wire termination options for wiring flexibility during installation
• High-impact resistant thermoplastic construction for durability in commercial environments
• UL listed, CSA certified, and meets Federal Specification requirements
• Package quantity of 8 units per window box

Compatibility

Designed as an OEM-style specification-grade single pole toggle switch for commercial electrical installations requiring a 20-amp, 120/277-volt device with standard single pole configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning any wiring work. Ensure the wire gauge used falls within the accepted range of 14 through 10 AWG. Torque all terminal screws to the value marked on the device or as specified by the manufacturer documentation included with the product.
