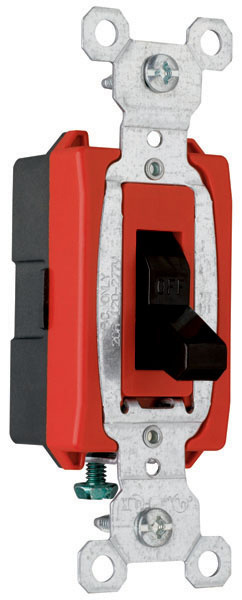

Pass & Seymour CSB20AC1-BK 1-Pole Heavy Duty Toggle Switch 120/277 VAC 20 Amp

Product Description

Pass & Seymour CSB20AC1-BK is a heavy-duty toggle switch designed for 120/277 VAC operation and a capacity of 20 amps. It features a robust design suited for commercial applications, ensuring reliable performance under demanding conditions.

• One-piece plated steel strap for corrosion resistance
• Back and side wire connection for easy installation
• High strength toggle for durability

Product Highlights

This switch is built for long-lasting use with features that enhance its resilience and operational capabilities. It includes a cam/spring actuator for positive make/break action, minimizing arcing and ensuring a longer lifespan.

Product Information

Standard Information

• Brand: Pass & Seymour
• MPN: CSB20AC1-BK

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 1/2 hp, 2 hp, 1 W
• Material: Nylon
• Dimensions: 3.3 inches H x 1.32 inches W x 1.073 inches D
• Environment: -40 to 115 degrees C
• Operating Cycles: 50000 cycles
• Installation Type: Wall Mounting with Screw Terminal
