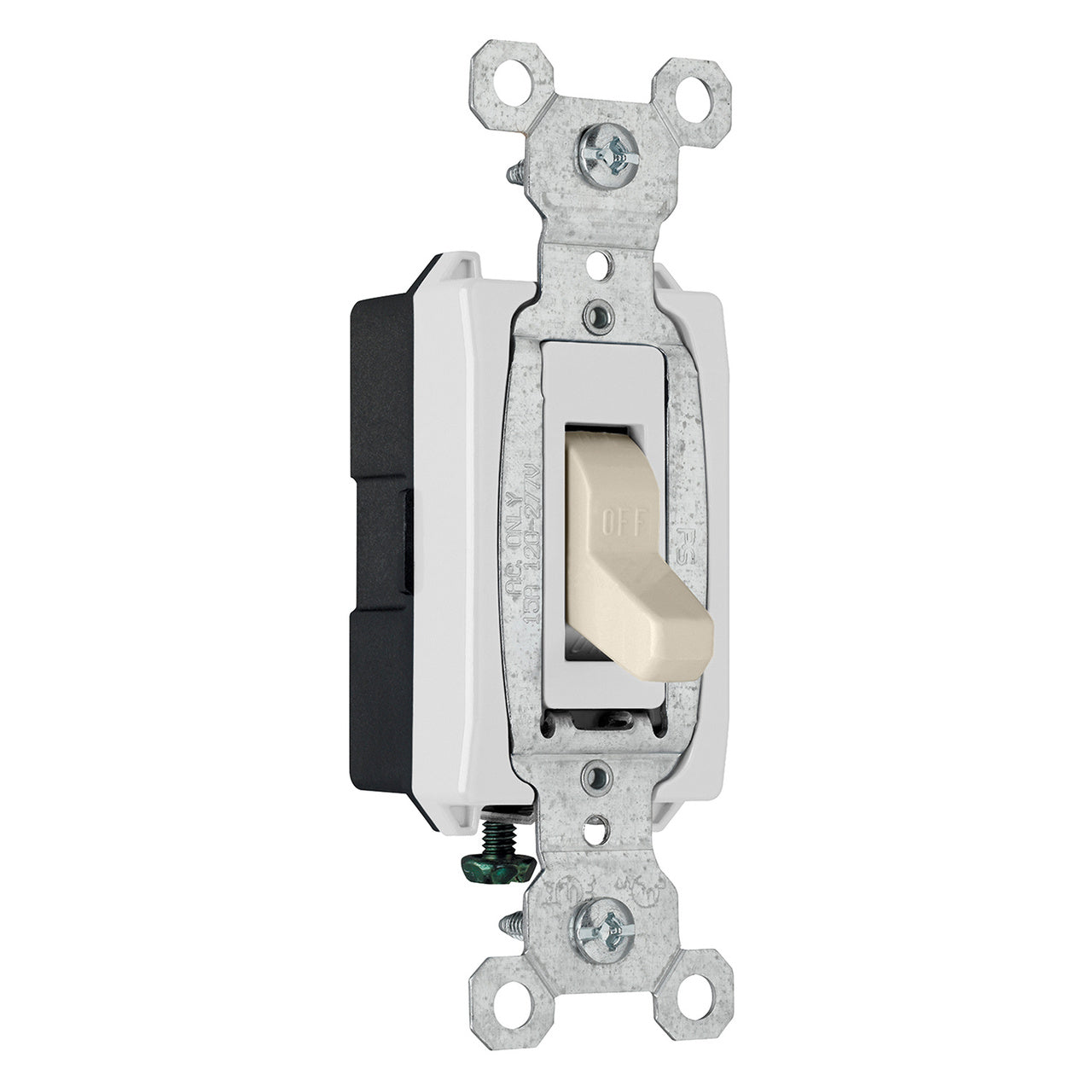

LEGRAND Pass & Seymour CS15AC1-LA Commercial 1-Pole Switch 15A 120/277V
LEGRAND Pass & Seymour CS15AC1-LA Commercial 1-Pole Switch 15A 120/277V

Pass & Seymour CS15AC1-LA Commercial 1-Pole Switch 15A 120/277V

LEGRAND
Brand: LEGRAND
SKU: CS15AC1-LA
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Pass & Seymour CS15AC1-LA is a commercial specification grade switch. This 1-pole switch is side-wired and has a rating of 15A 120/277V. It is suitable for commercial and industrial applications. The switch features a thermoplastic body and a matte finish.

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.

Product Highlights

Heavy-duty toggle switch with reliable performance and durable construction for commercial and industrial use.

Product Information

Standard Information

  • Brand: Pass & Seymour
  • Manufacturer Part Number: CS15AC1-LA
  • Country of Origin: Mexico
Technical Specifications
Color
Light Almond
Type
Switch
Material
Nylon
Finish
Matte
Application Sector
Commercial, Industrial
Product Line
Pass & Seymour
Country Of Origin
Mexico
Single Piece Plated Steel Mounting Strap
Yes
Wall Plate Included
No
Number of Switches
1
Switch Type
Toggle
Standard
UL20, FEDSPEC
UPC Number
785007126426
Product Depth US
1.073 in
Product Height US
3.281 in
Product Width US
1.32 in
cULus ListingNumber
140597
cULus Listed
Yes
Amperage
15 A
Connection Location
Side Only
Requires Neutral Wire
No
Wire Connection Type
Screw Terminals
Indoor/Outdoor
Indoor
Load Rating
15 A @ 120/277 VAC
Load Type
CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
Single Pole
Horsepower Rating
1/2 HP @ 120 VAC, 2 HP @ 240 VAC
Throw Type
Single Throw
Terminal Accommodation
#14 AWG - #10 AWG
Voltage
120 VAC, 277 VAC
UNSPSC Code
39120000
Brand
Pass & Seymour
Manufacturer Part Number
CS15AC1LA
Unit of Measure
EA
UPC Code
785007126426
AD Application
Commercial/Residential, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
AD Brand (Description)
Pass & Seymour
AD Country
USA
Actuator
Toggle
Power Rating
1/2, 2
Terminal Type
Side Wire/Screw
Heavy Duty
Type
Voltage Rating
120/277
Amperage Rating
15
Environmental Conditions
-40 to 115 deg C Temperature
Mounting
Wall
Operating Cycles
50000
Application
Commercial
Current Type
AC
Current Rating
1-5 A
Model
CS15AC1-LA
