Pass Seymour CRB5362LACC12 Duplex Outlet 20A Nema 5-20R 12pk

Product Description

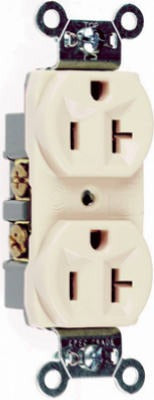

The PASS SEYMOUR CRB5362LACC12 is a commercial-grade heavy duty duplex outlet rated at 20 amps and 125 volts, configured as a NEMA 5-20R receptacle. It features a 2-pole, 3-wire grounding design in a light almond finish and ships in a window box as a pack of 12 units. Built to specification grade, this outlet is suited for demanding commercial and light industrial electrical installations where reliable plug retention and durable construction are required. Licensed electricians install this device as part of branch circuit wiring in commercial, institutional, and high-use residential applications.

This outlet is designed for commercial and specification-grade installations where outlet durability and consistent performance are priorities. The light almond color finish suits standard commercial interiors. The NEMA 5-20R configuration accepts 20-amp rated plugs as well as standard 15-amp plugs, making it appropriate for office, retail, industrial, and institutional branch circuits. The pack of 12 is sized for contractor and service use.

Key Features

• Superior blade retention system prevents plugs from working loose during use
• Screw pressure plate with back and side wire termination accepts 14 AWG through 12 AWG stranded and solid copper wire
• Auto ground clip simplifies grounding during installation
• Unbreakable face and back body construction resists device damage in high-use environments
• UL and CSA listed for compliance with North American electrical standards
• Packaged in a window box, quantity of 12 per pack

Compatibility

Designed as a specification-grade NEMA 5-20R duplex receptacle for commercial branch circuits requiring 20-amp, 125-volt outlet capacity.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit and verify absence of voltage before wiring. Use copper conductors only in the size range supported by the terminal — 14 AWG through 12 AWG. Ensure the grounding path is continuous and secure before closing the device into the box.
