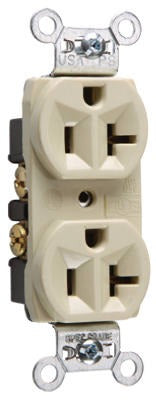

Pass Seymour CRB5362ICC12 Duplex Outlet 20A Nema 5-20R 12 Pack

Product Description

The PASS SEYMOUR CRB5362ICC12 is a commercial-specification-grade heavy duty duplex outlet rated at 20 amps and 125 volts, designed for demanding electrical installations in commercial and light industrial settings. This NEMA 5-20R receptacle features a 2-pole, 3-wire grounding configuration and an ivory finish. Superior blade retention holds plugs firmly in place, reducing nuisance disconnects. The unbreakable face and back body construction resists cracking under rough service conditions. Licensed electricians and facilities maintenance crews rely on this outlet for high-traffic circuits where durability and code compliance are non-negotiable. Sold as a package of 12 units.

This outlet is suited for commercial office builds, retail spaces, schools, and other occupancies requiring specification-grade devices on 20-amp branch circuits. The screw pressure plate termination accepts 14 AWG through 12 AWG stranded and solid copper wire, supporting both back-wiring and side-wiring methods. The integrated auto-ground clip speeds up installation by securing the grounding connection to the metal device box without a separate ground screw, a feature particularly useful on high-volume rough-in jobs. Packaged in a window box for easy inventory management on the job site or supply shelf.

Key Features

• NEMA 5-20R configuration rated at 20 amps and 125 volts for standard commercial branch circuits
• Superior blade retention system prevents plugs from backing out under load or vibration
• Screw pressure plate accepts 14 AWG through 12 AWG stranded and solid copper wire via back or side termination
• Auto-ground clip provides a positive ground path to metal device boxes without an additional ground screw
• Unbreakable face and back body resists physical damage during installation and service life
• UL and CSA listed to meet commercial and specification-grade requirements
• Packaged 12 per window box for efficient job-site distribution

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex receptacle for 20-amp, 125-volt NEMA 5-20R applications in commercial and residential branch circuit wiring.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the branch circuit at the panel and verify absence of voltage with a tester before making any wire connections. Both back-wire and side-screw termination methods are supported, but follow torque guidelines printed on the device or listed in the product documentation for screw terminals. Ensure the box and device are properly bonded to the equipment grounding conductor before restoring power.
