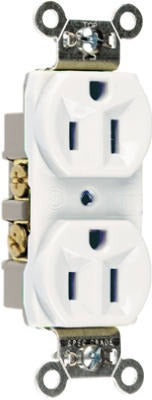

Pass Seymour CRB5262WCC12 Duplex Outlet 15A Nema 5-15R 12-pack

Product Description

The PASS SEYMOUR CRB5262WCC12 is a commercial-grade heavy duty duplex outlet rated at 15 amps and 125 volts, designed for reliable performance in demanding electrical installations. This 2-pole, 3-wire grounding receptacle meets NEMA 5-15R configuration and carries both UL and CSA listings. The outlet features superior blade retention to keep plugs firmly seated and an unbreakable face and back body to resist physical damage. Screw pressure plate termination on the back and side accepts 14 through 12 AWG stranded and solid copper wire. Sold in a window box pack of 12 units, this receptacle is suited for commercial and specification-grade electrical work.

This outlet is intended for commercial, industrial, and specification-grade residential applications where durability and secure plug retention are required. Electricians use it in office buildings, retail spaces, schools, and other high-traffic facilities where standard-grade devices are not adequate. The auto-ground clip speeds up installation and ensures consistent grounding contact without additional hardware. The white finish suits standard electrical box installations behind decorator or contractor wall plates.

Key Features

• 15A, 125V rating with NEMA 5-15R configuration for standard branch circuit use
• Superior blade retention prevents plugs from loosening or falling out under load
• Screw pressure plate termination accepts 14 through 12 AWG stranded and solid copper wire
• Auto-ground clip provides reliable grounding contact and faster installation
• Unbreakable face and back body resists cracking and device failure
• UL and CSA listed for commercial and specification-grade applications

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex receptacle for standard single-gang electrical boxes wired on 15-amp, 125-volt branch circuits per NEMA 5-15R configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify the absence of voltage with a meter before beginning work. Back and side wire termination options allow flexible positioning within the box. Do not exceed the rated wire gauge or ampacity for the circuit.
