Pass & Seymour CR20RED Commercial Spec-Grade Duplex Receptacle 20A 125VAC

Product Description

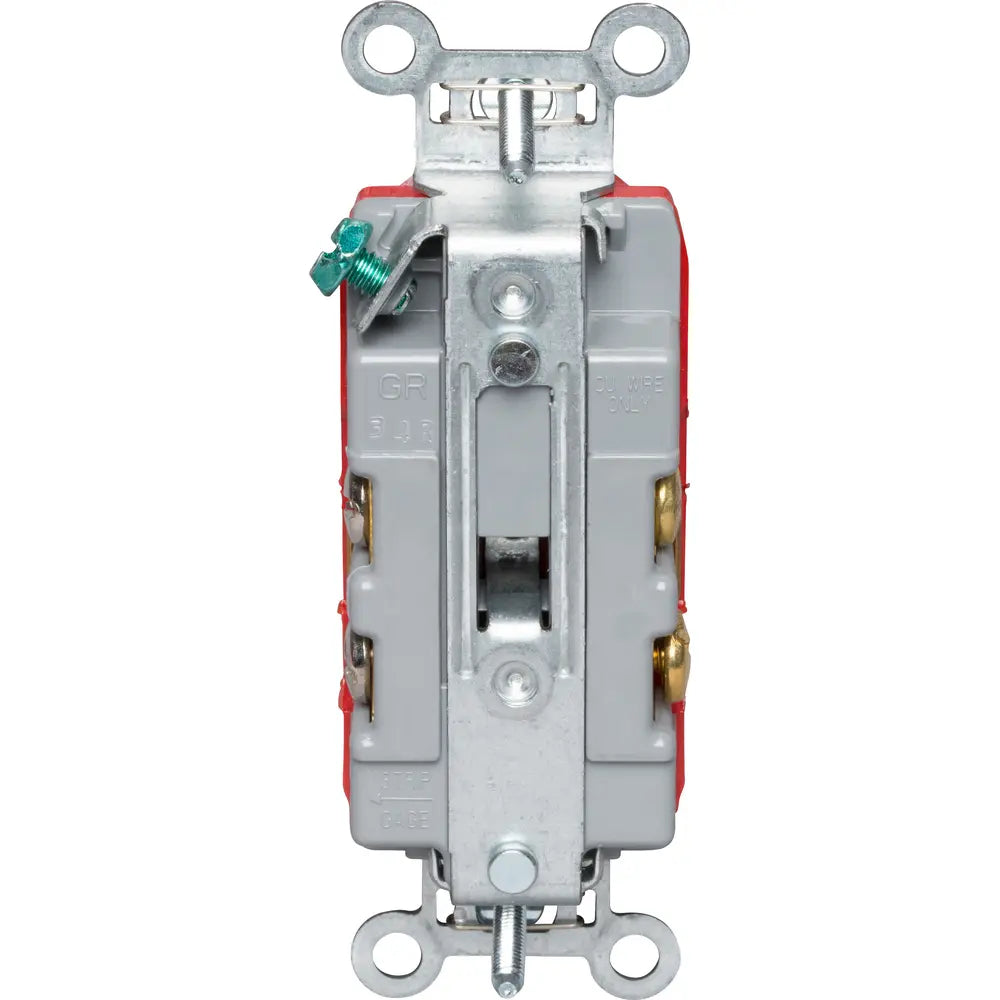

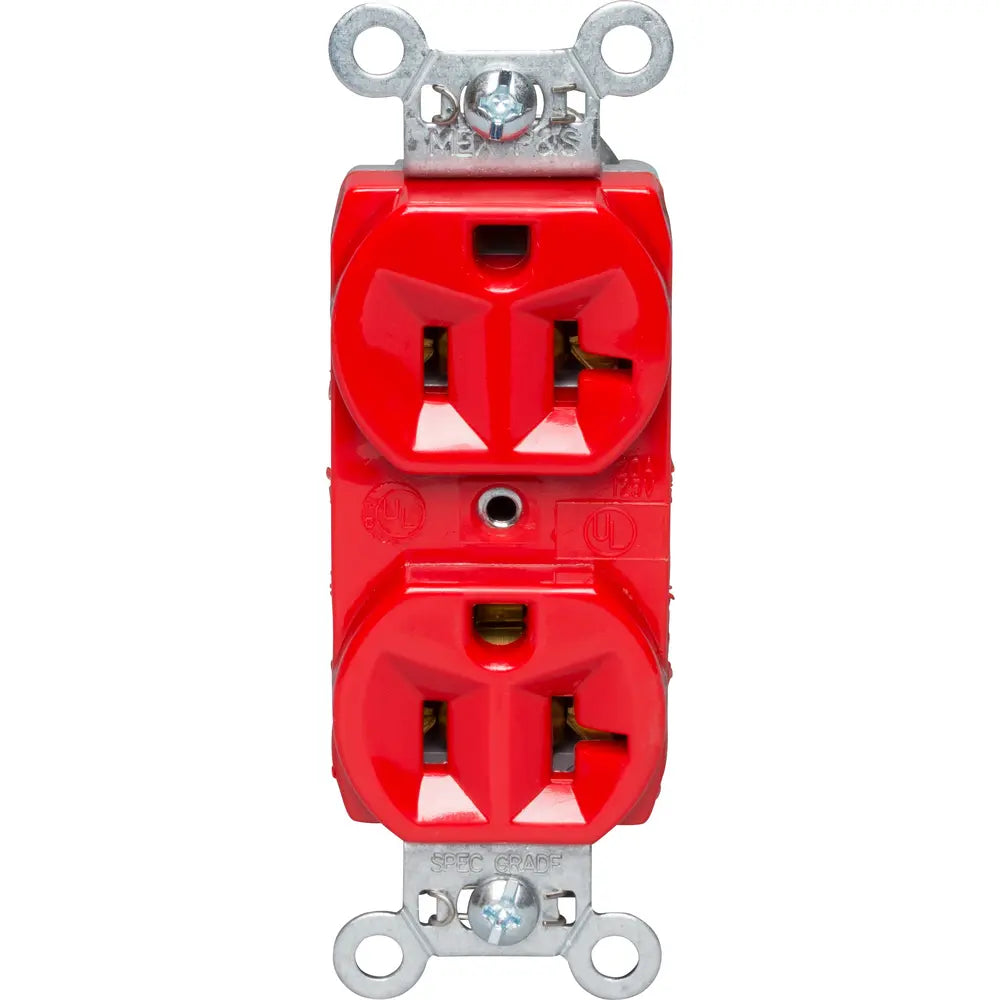

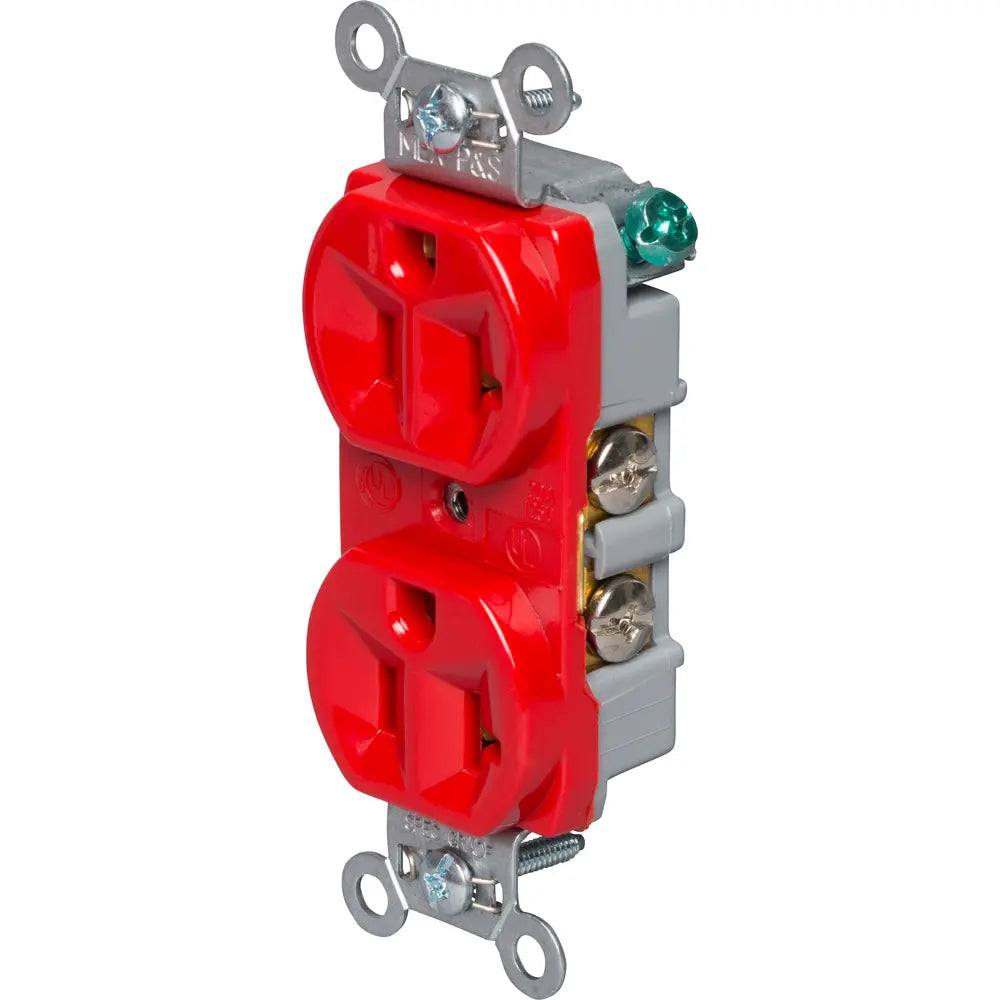

The Pass & Seymour CR20RED is a commercial spec-grade duplex receptacle. This 20A, 125VAC receptacle features a corrosion-resistant, plated steel strap locked in to face and back body. It has an easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring and an impact-resistant nylon face and thermoplastic back body.

• Corrosion-resistant, plated steel strap
• Break-off line-contact connecting tab for split-circuit wiring
• Impact-resistant nylon face and thermoplastic back body

Product Highlights

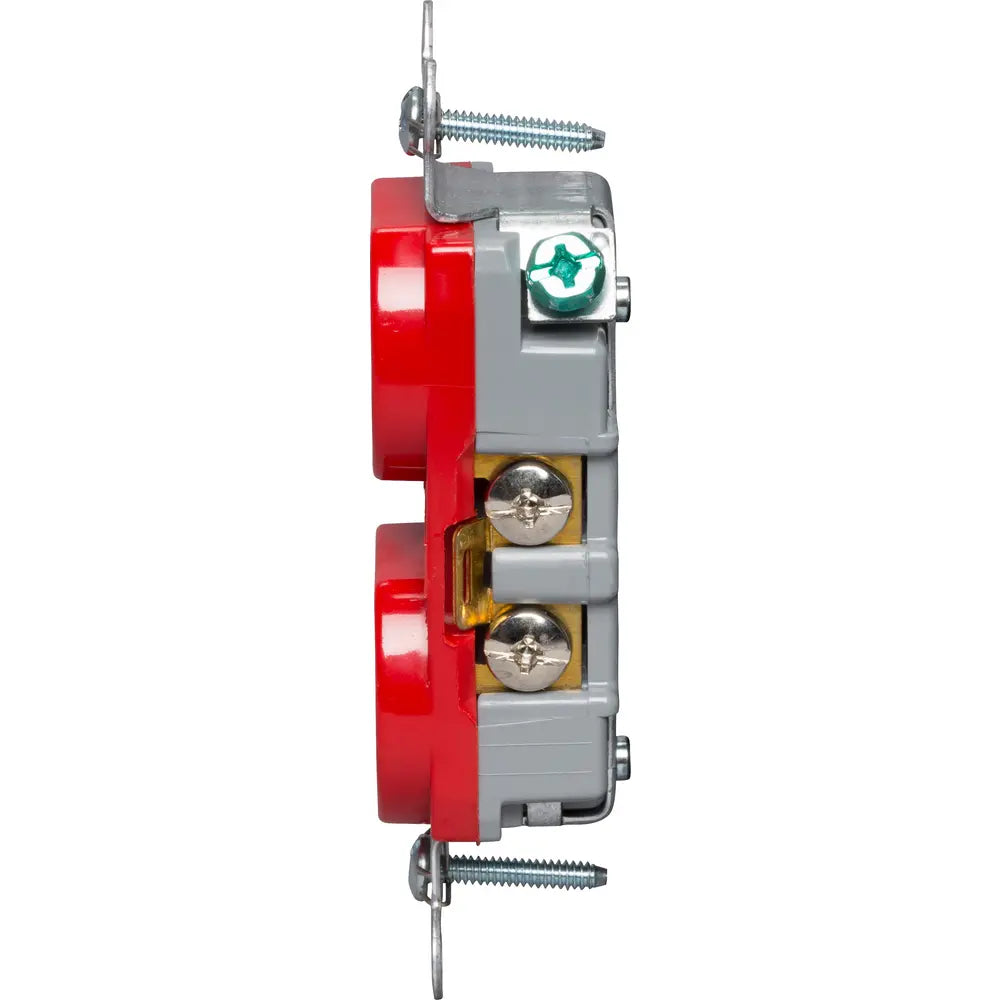

Commercial grade duplex receptacle with side wire connection, ideal for commercial applications. It is a 2-pole, 3-wire receptacle.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: CR20RED
• Country of Origin: Mexico

Technical Specifications

• Type: Duplex Receptacles
• Depth: 0.78 Inches
• Width: 1.32 Inches
• Height: 2.64 Inches
• Material: Nylon Thermoplastic
• Mounting: Screw
• Standard: UL498, CSA C22.2 No. 42
• Voltage Rating: 125 VAC
• Amperage Rating: 20 Amperes
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Country of Origin: MX
• Environmental Conditions: Dry Location
• NEMA: 5-20R
• Grade: Commercial
• Finish: Matte
• Voltage: 125 Volt
• Amperage: 20 Amp
• Capacity: Duplex
• Wire Size: 10 AWG
• Applications: Commercial
• Mounting Type: Wall
• TC Connection: Side wire
• Certifications: CULUS
• Conductor Size: 14-10 AWG
• Connection Type: Side Wired
• Temperature Rating: -40 degrees C
• Dielectric Strength: 1500 V
• Product Line: Pass & Seymour
• Impact Resistant, Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Straight Blade
• Warranty Type: 1-Year Limited Warranty
• Operating Temperature: -40°-60°C
• Operating Temperature Max: 60 °C
• Operating Temperature Min: -40 °C
