Product Description

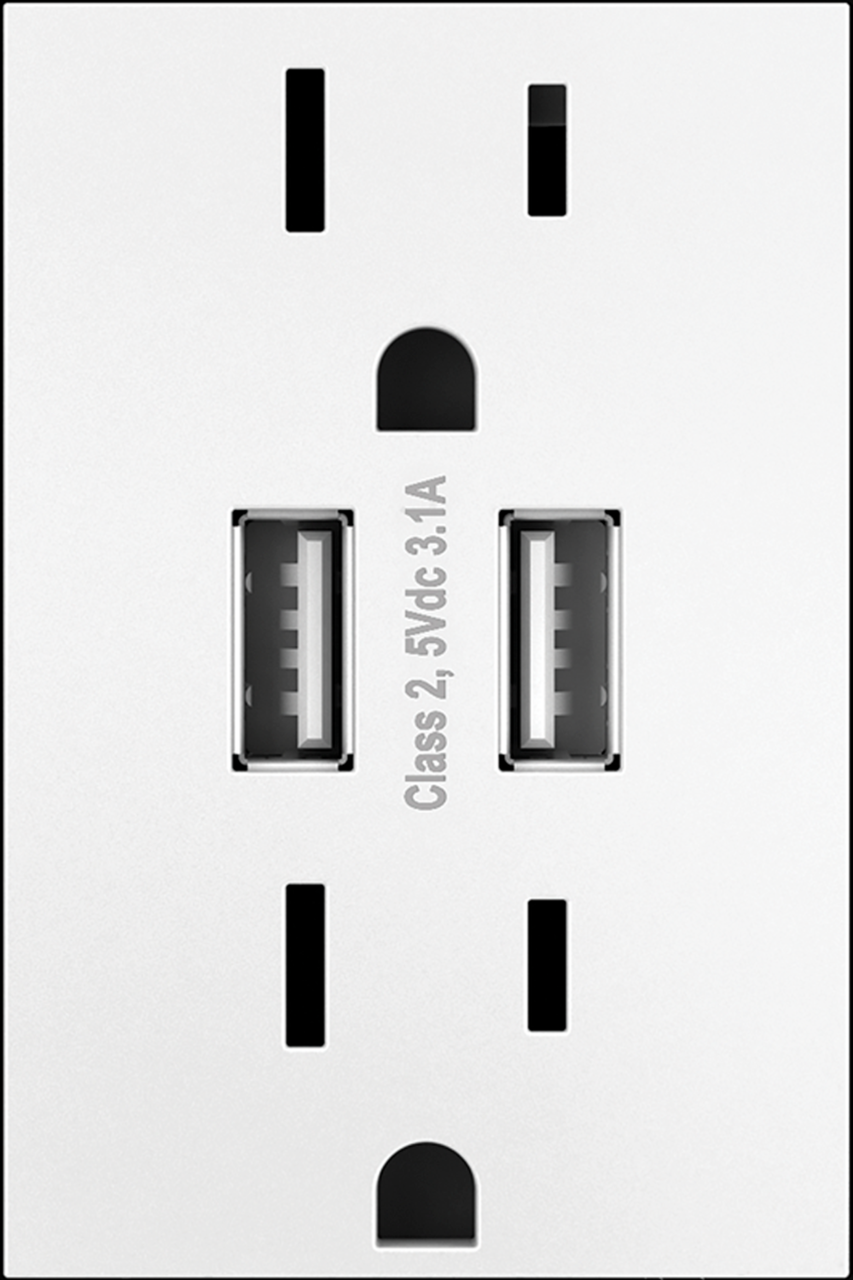

The Pass & Seymour ARTRUSB153W4 Adorne USB outlet provides convenient built-in charging for phones, tablets, and more. Including two USB Type-A connections, this outlet replaces a traditional outlet in minutes without sacrificing a plug or requiring a bulky adapter. It is made for use with screwless Wall Plates from the Adorne collection.

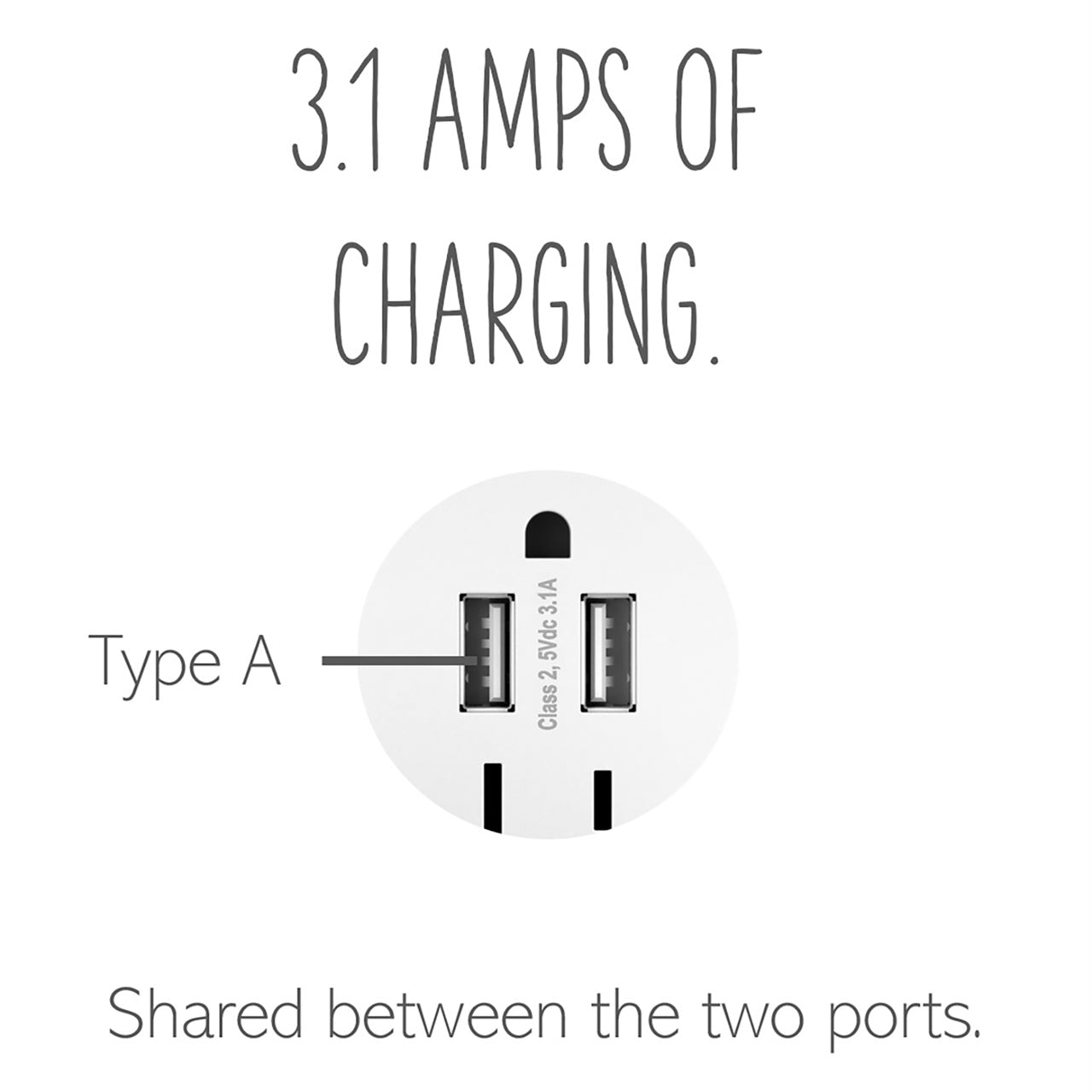

- Features a total charging capacity of 3.1A.
- Protects children with a patented tamper-resistant shutter system.
Product Highlights
The Adorne USB outlet provides easy-to-access charging without sacrificing a plug. It features a total charging capacity of 3.1A and replaces a traditional outlet easily, in as little as 10 minutes.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Manufacturer Part Number: ARTRUSB153W4
-
Country of Origin: China
Technical Specifications
-
Color: White
-
Finish: Matte
-
Application Sector: Multi-Dwelling Unit, Residential
-
Product Line: Pass & Seymour
-
Country Of Origin: China
-
USB-A Charging: Yes
-
Wall Plate Included: No
-
Number of Receptacles: 2
-
Outlet Type: Tamper-Resistant, USB-Charging
-
Standard: UL Listed
-
UPC Number: 785007109931
-
Product Depth US: 1.48 in
-
Product Height US: 2.65 in
-
Product Width US: 1.77 in
-
Amperage: 15 A
-
Connection Location: Back Only
-
Wire Connection Type: Internal Pressure Plates
-
Environmental Conditions: 95% (relative humidity, non-condensing)
-
USB Amperage: 3.1 A
-
Indoor/Outdoor: Indoor
-
USB Wattage: 15 W
-
Is Tamper-Resistant: Yes
-
Mounting Type: Box
-
Number of Gangs: 1
-
Number of Poles: Double Pole
-
Number of USBs: 2
-
Number of Wires: 3
-
Phase: Single
-
Voltage: 125.0 V
-
Wire Size: 14 - 12 AWG
-
ECCN: EAR99
-
UPC: 78500710993
-
UNSPSC: 39121406
-
Brand: Adorne
-
Material: Thermoplastic
-
AWG Range: 14 - 10 AWG
-
Rated Voltage: 125V
-
Color Family: White
-
NEMA: 15A
-
Number of Phases: 1 Phase
-
Type: Non-Reversing
-
Depth: 1.48 Inch
-
Height: 2.65 Inch
-
Width: 1.77 in
-
GTiN: 00785007109931
-
Product Series: Adorne USB Outlet
-
Product UPC: 78500710993
-
Conductor Size: 14-10 AWG
