Pass & Seymour AC1068 Network Interface Module 8-Port

Brand: PASS & SEYMOUR
SKU: AC1068
Availability: In Stock

Ships same day if ordered by 12 pm
$79.63
$79.63
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

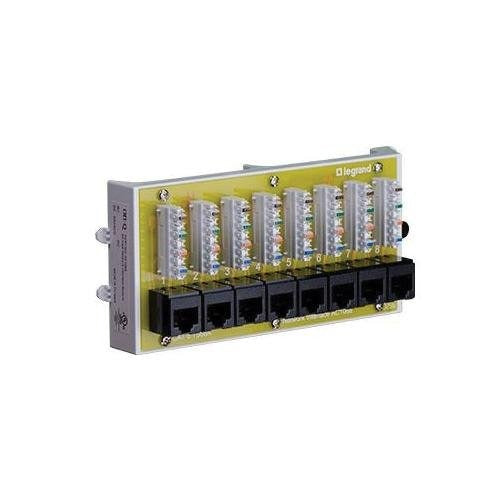

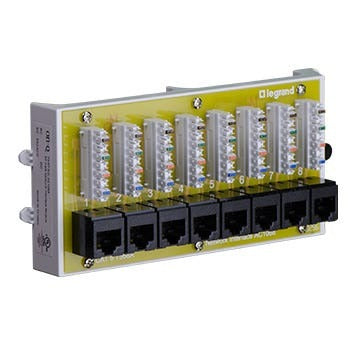

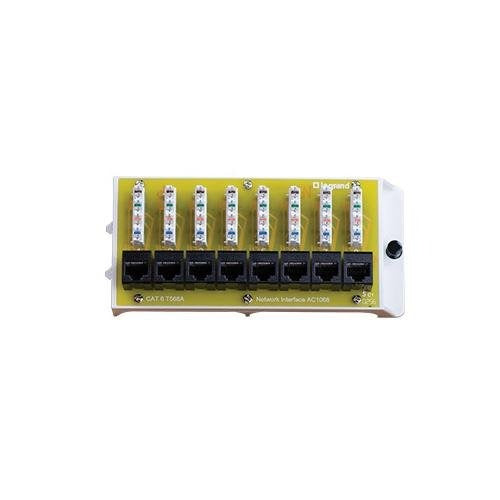

The Pass & Seymour AC1068 is a metal network interface module that provides front-mounted termination and patch-panel style connectivity for residential Cat 6 data lines. It features eight 110-IDC punch-down termination points paired with eight RJ-45 jacks, mounts in On-Q structured wiring enclosures, and supports T568A wiring. The module is designed to connect a router or switch to wired network locations and meets industry communication standards.

  • Eight front-mounted 110-IDC punch-down terminals with eight RJ-45 connectors for Cat 6 connectivity
  • Metal construction mounts in On-Q structured wiring enclosures; mounting via tabs/plungers and grommets
  • Meets TIA/EIA 568-C.2 wiring standards; UL listed and RoHS compliant; operating range 0 to 50 °C

Product Highlights

8-port Cat6 network interface module with front punchdown termination and RJ-45 jacks for residential structured wiring

Product Information

Standard Information

  • Brand: PASS & SEYMOUR
  • Manufacturer Part Number: AC1068
  • Country of Origin: Unknown
Technical Specifications
Manufacturer Part Number
AC1068
Brand
Pass & Seymour
Product Type
Network interface module
Material
Metal
Number Of Ports
8
Connector
110 IDC punchdown / RJ-45
Cable Type
Cat 6
Performance Category
Cat6
Termination/Wiring
110 IDC punchdown; T568A wiring
Mounting Type
Tabs/Plungers and grommets
Installation Location
On-Q structured wiring enclosures
Supported Standards
TIA/EIA 568-C.2
UL Listings
UL 1863 Communications-Circuit Accessories; CAN/CSA C22.2 No. 182.4
RoHS Compliant
Yes
Operating Temperature
0 to 50 °C
Overall Dimensions (Metric)
161.9 mm H x 69.9 mm W x 38.1 mm D
Overall Dimensions (US)
6.37 in H x 2.75 in W x 1.50 in D
Product Weight (US)
0.363 lb
Connector Count Details
Eight 110-IDC punch-down termination points and eight RJ-45 connectors
