Product Description

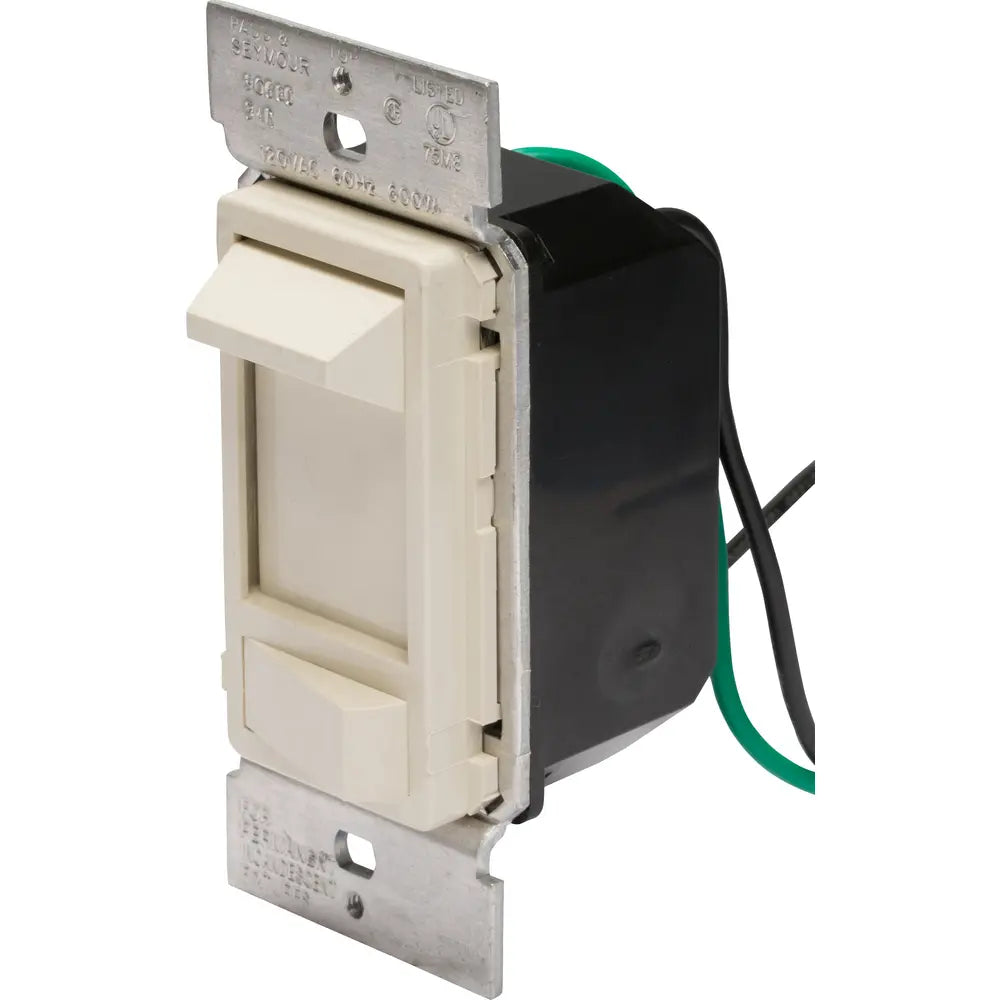

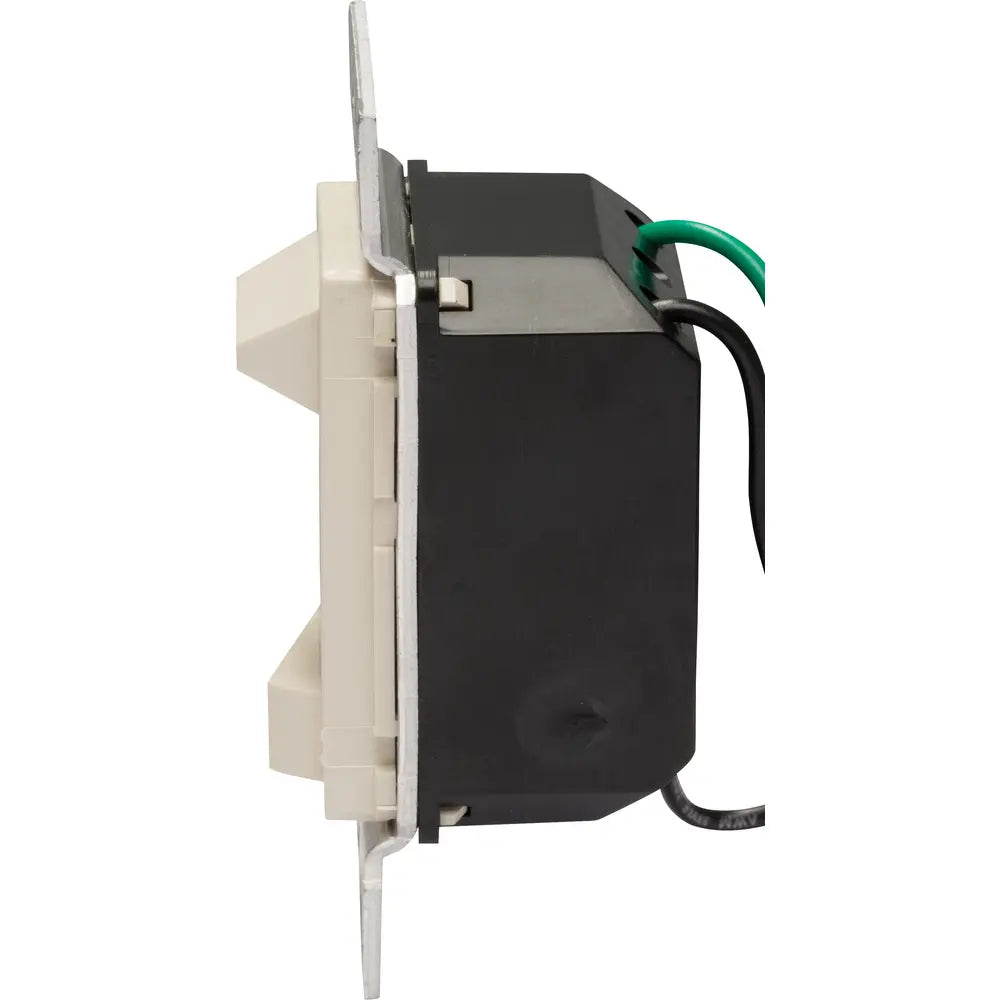

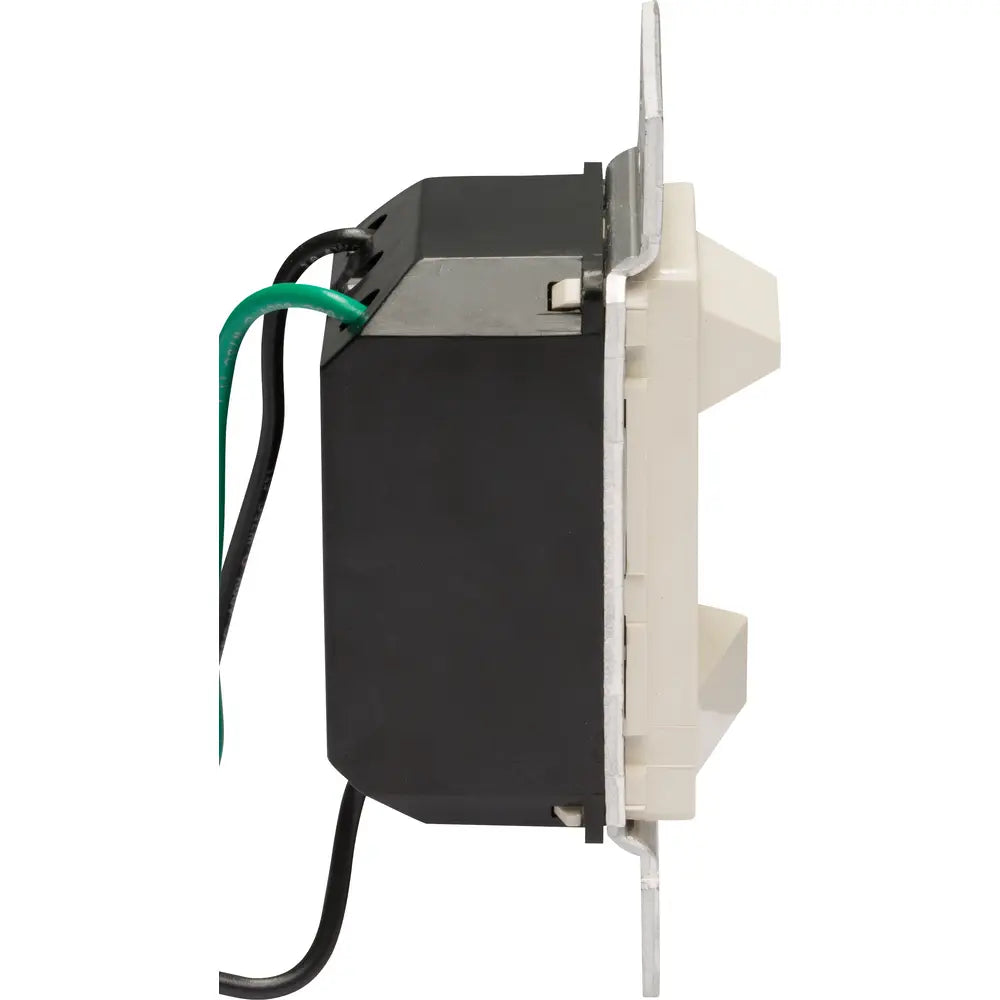

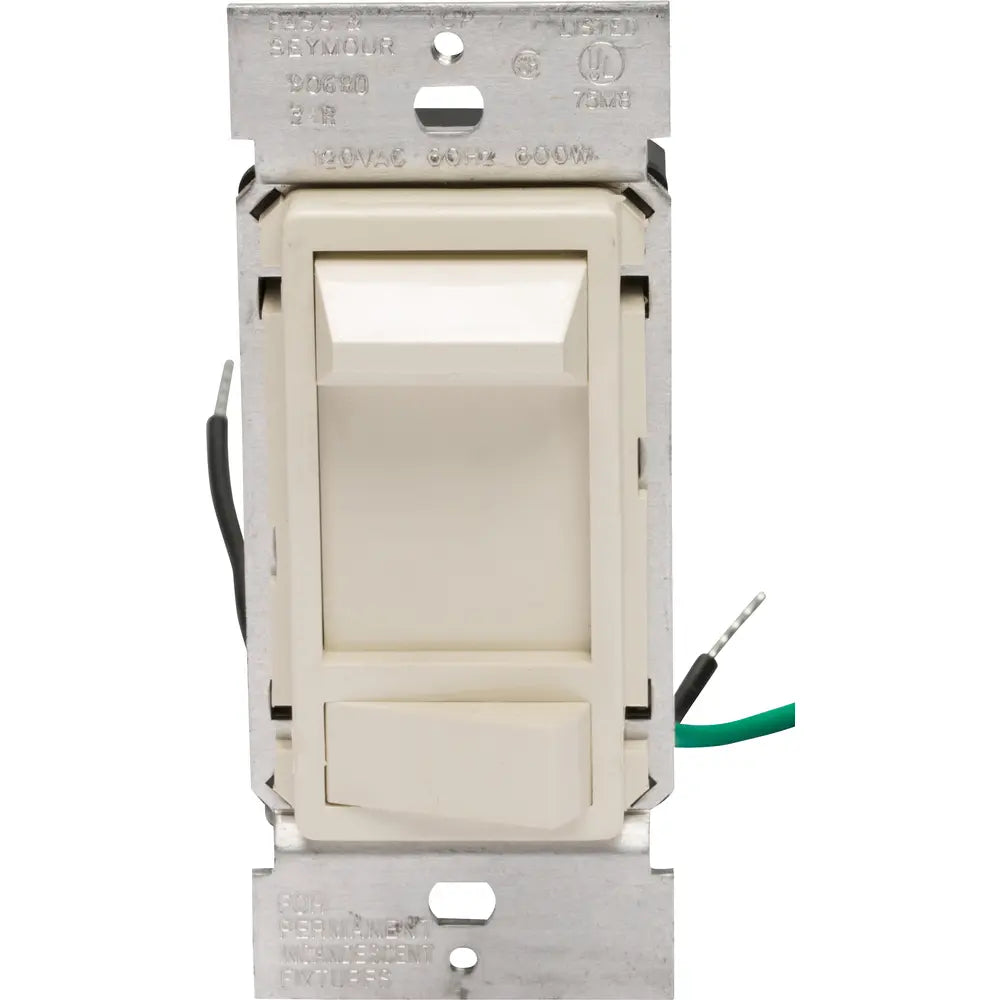

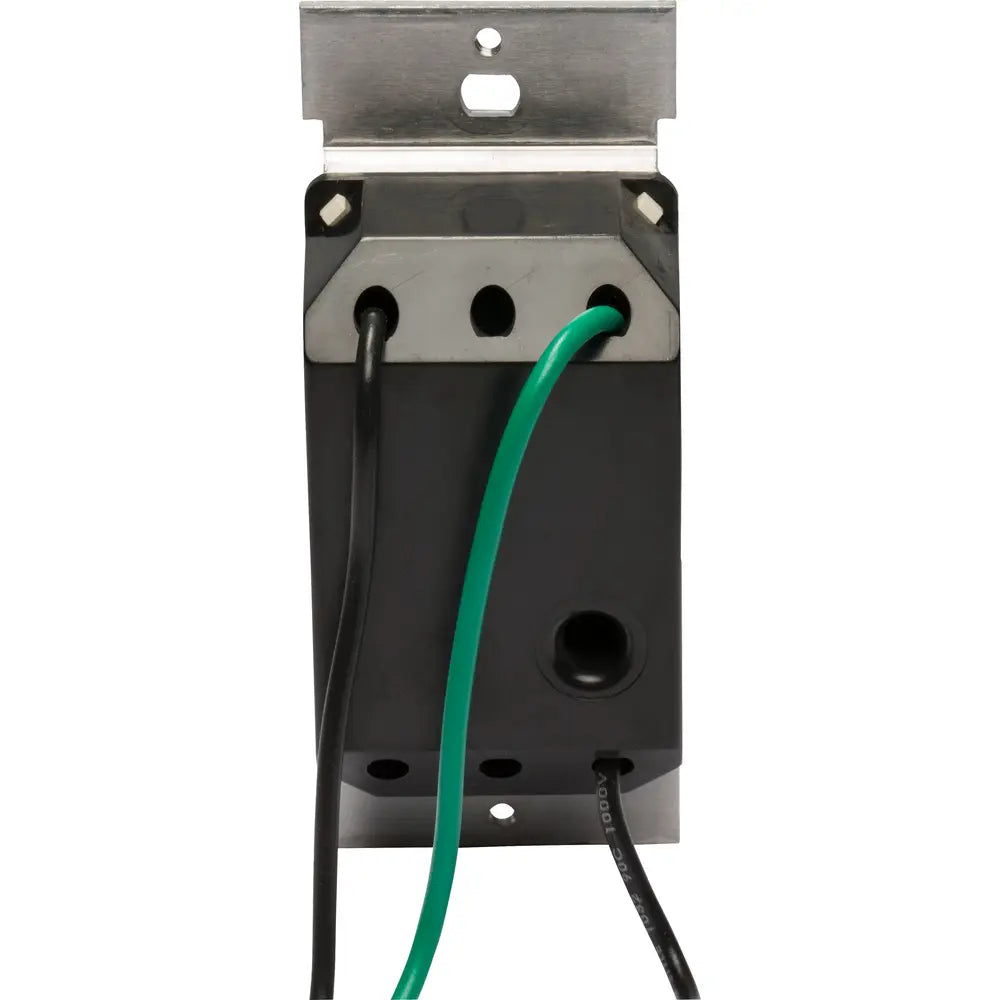

The Pass & Seymour 90680-LA is a wide slide series dimmer with a preset switch designed to control lighting effectively. This dimmer supports a maximum load of 600 watts and can be ganged without de-rating. The included preset ON/OFF switch ensures that the lights return to a preset level at each activation, saving users from having to readjust the dimming settings.
- 600W capacity for continuous full load.
- Compatible with many 1000W models fitting standard Decorator plates.
- Built-in RFI suppression and full-on bypass feature.
Product Highlights
This dimmer is suitable for residential applications, providing effective lighting control and ease of use.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Part Number: 0248-8797
Technical Specifications
-
Type: Incandescent Dimmer
-
Color: Light Almond
-
Wattage: 600 Watts
-
Voltage Rating: 120 VAC
-
Number of Poles: Single-Pole
-
Frequency Rating: 50/60 Hertz
-
Height: 4.25 Inches
-
Width: 1.688 Inches
-
Depth: 1.469 Inches
-
Weight: 0.15 Pounds
-
Country of Origin: MX
-
Standard: RoHS, CSA Listed, UL Listed
