Product Description

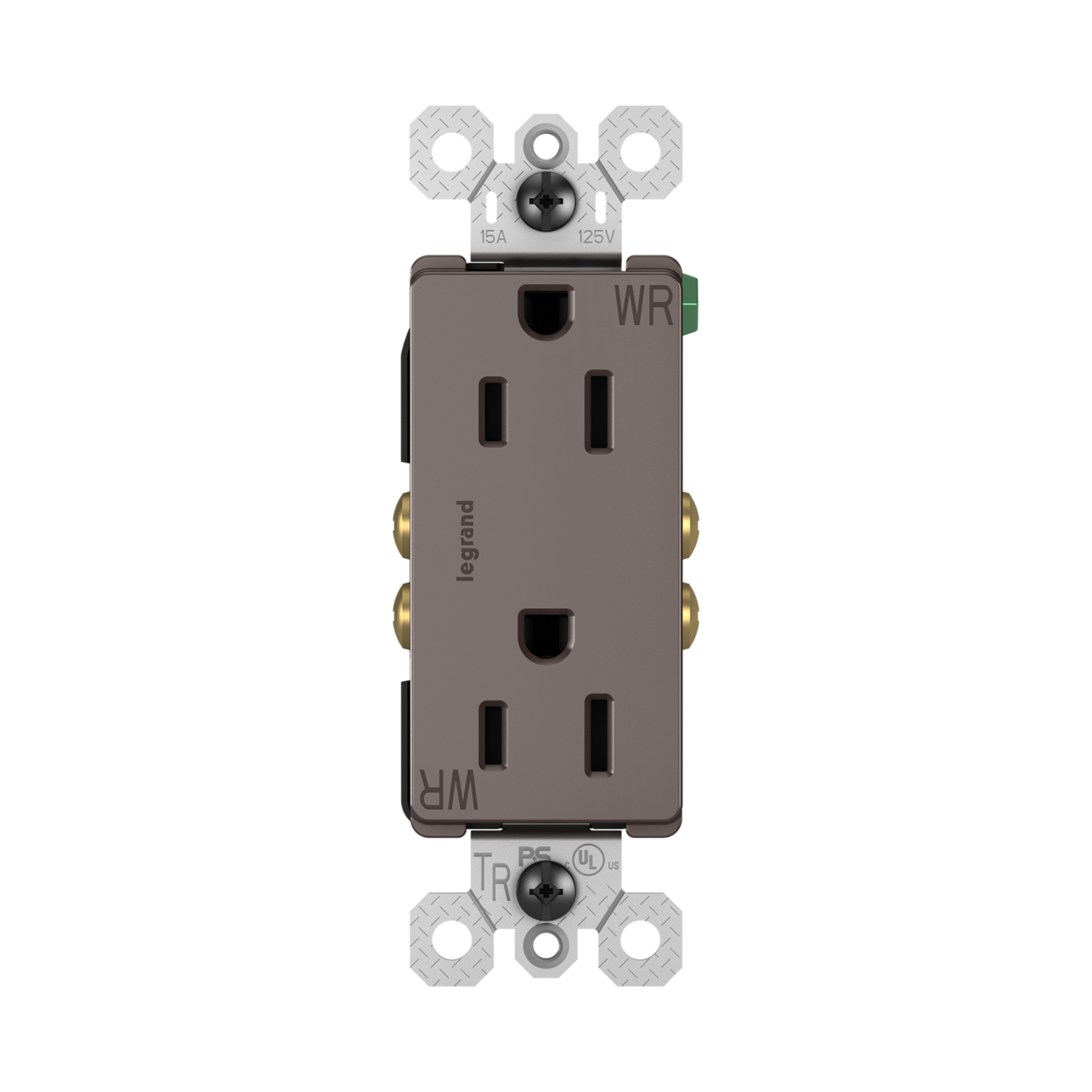

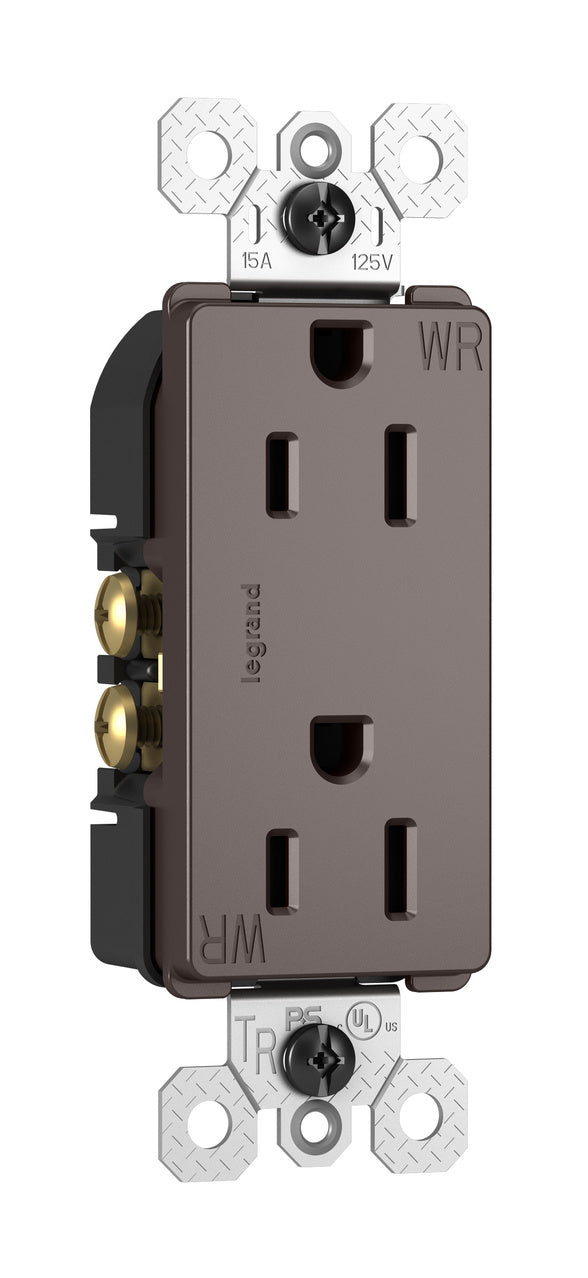

The Pass & Seymour 885-TRWR radiant Outdoor Outlet brings power to your patio, pool area, porch, or deck. This weather-resistant outlet installs easily and elevates your outdoor space with its sleek, clean lines. It is made for use with screwless Wall Plates from the radiant Collection, sold separately.
- Replaces any standard outlet with ease, in as little as 10 minutes.
- Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas. *Must be installed in weatherproof enclosure per NEC requirements.
- Features durable, high-impact resistant thermoplastic construction.
Product Highlights
Weather-resistant outlet suitable for patios, pools, and decks. Features a sleek design and durable thermoplastic construction. Compatible with radiant screwless wall plates.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Manufacturer Part Number: 885-TRWR
-
Country of Origin: Mexico
Technical Specifications
-
Color: Brown
-
Finish: Satin
-
Application Sector: Hospitality, Residential
-
Product Line: Pass & Seymour
-
Country Of Origin: Mexico
-
Replaced by Part Number: 885TREXWR
-
Features: Decorator Style, Weatherproof
-
Wall Plate Included: No
-
Number of Receptacles: 2
-
Outlet Type: Straight Blade, Tamper-Resistant, Weather-Resistant
-
UPC Number: 785007241730
-
Product Depth US: 1.0 in
-
Product Height US: 4.2 in
-
Product Width US: 1.29 in
-
cULus ListingNumber: E140596
-
cULus Listed: Yes
-
Product Environmental Profile: Yes
-
Amperage: 15 A
-
Connection Location: Back and Side
-
Wire Connection Type: Internal Pressure Plates, Screw Terminals
-
Indoor/Outdoor: Outdoor
-
Is Tamper-Resistant: Yes
-
Mounting Type: Box
-
Number of Gangs: 1
-
Number of Poles: Double Pole
-
Number of Wires: 3
-
Voltage: 120.0 V, 125.0 V
-
Material: Thermoplastic
-
Orientation: Vertical
-
Size: 4.25"
-
Style: Decorator
-
Type: Receptacle
-
Brand: Legrand
-
Sub Brand: radiant
-
GTiN: 00785007241730
-
Product UPC: 78500724173
-
Depth: 1 Inch
-
Height: 4.2 Inch
-
Thickness: 1.3"
-
Certifications: CULUS
-
Grade: Commercial
-
NEMA Rating: NEMA 5-15R
-
Amperage Rating: 15 A
-
Catalog ID: P-S885-TRWR
-
Terminal Type: Side Wired
-
Voltage Rating: 125 VAC
-
Standard & Approvals: CSA C22.2 NO 42 Certified, UL 498 Listed, RoHS Complaint
-
MPN: 885-TRWR
-
Standard: CULUS
-
Application: Residential/Commercial
-
Rated Voltage: 125V
