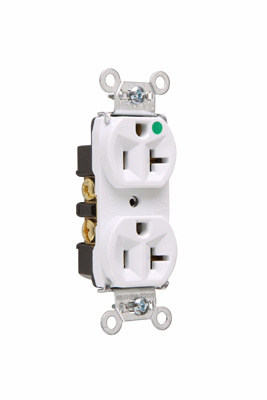

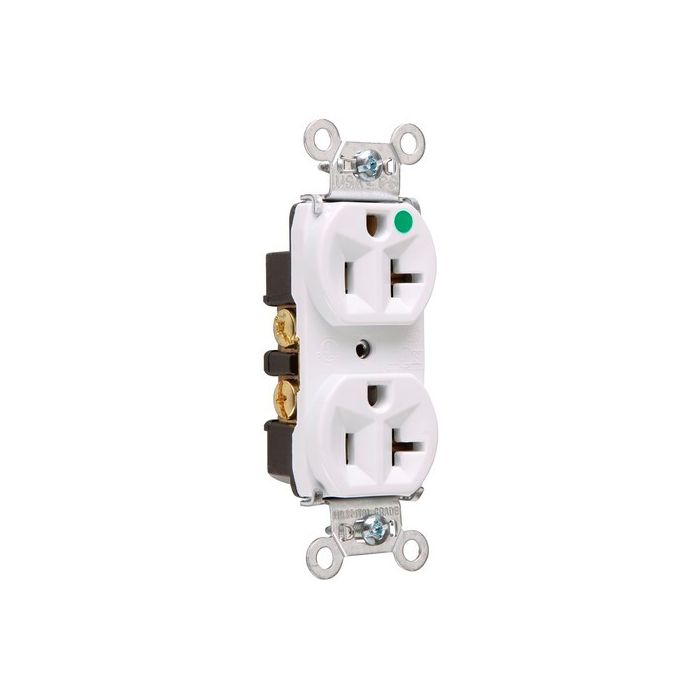

Pass & Seymour 8300HW Hospital Grade Corrosion Resistant Heavy-Duty Compact Design Duplex Receptacle 20 Amp 125 Volt AC NEMA 5-20R Auto Grounding White

Product Description

The Pass & Seymour 8300HW is a heavy-duty hospital grade duplex receptacle. This model is designed for high performance and safety in commercial and industrial settings. Built for reliability, it supports automatic grounding and is suitable for both back and side wiring. The receptacle operates at 125 volts and has a current rating of 20 amps, conforming to NEMA 5-20R standards.

• 20 amps and 125 volts voltage rating
• Corrosion-resistant design for durability
• High strength thermoplastic construction

Product Highlights

The receptacle features impact-resistant nylon, ensuring longevity in demanding environments. It includes auto-ground clips for reliable grounding and back wire holes for easy installation. The compact design allows for efficient use in tight spaces.

Product Information

Standard Information

• Manufacturer: Pass & Seymour
• MPN: 8300HW

Technical Specifications

• Color: White
• Material: Thermoplastic
• Temperature Rating: -40 to 60 degrees Celsius
• Number of Wires: 3
• Number of Poles: 2
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• NEMA Rating: NEMA 5-20R
