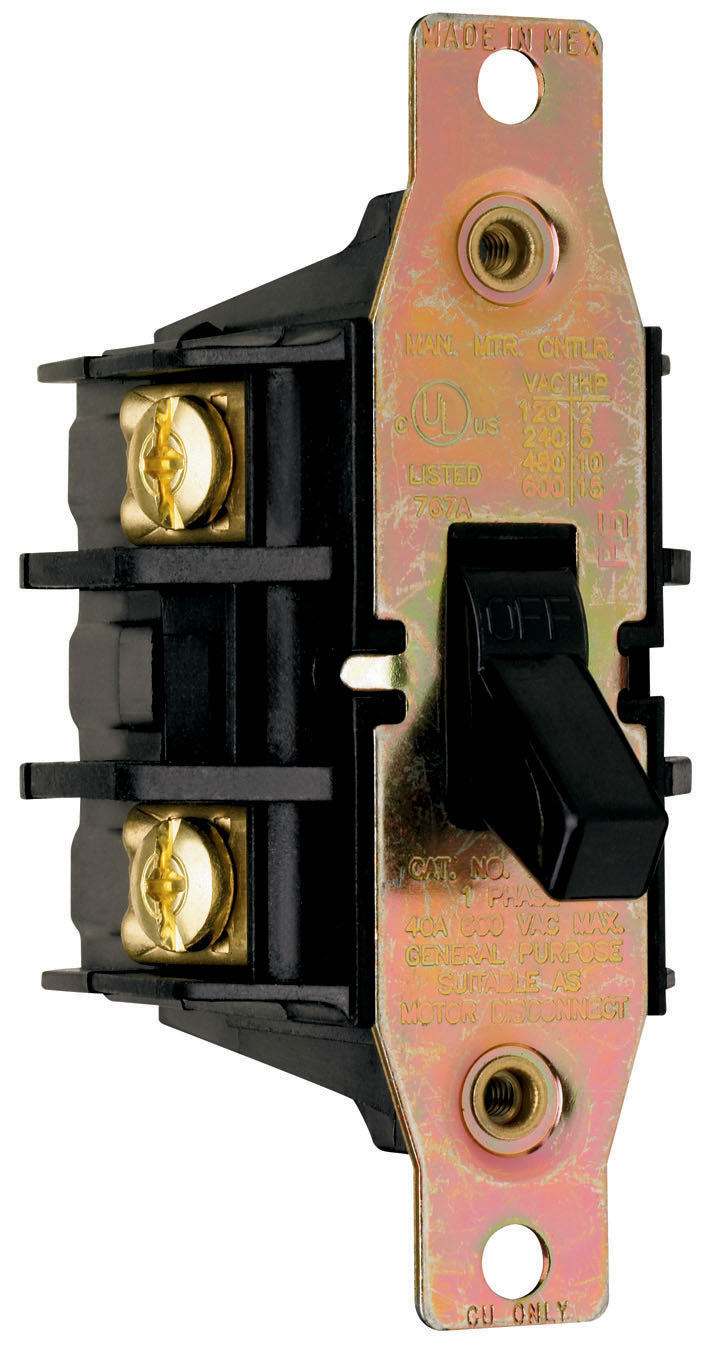

Pass & Seymour 7842MD 40A 2Pole Single Phase Motor Disconnect

Product Description

The Pass & Seymour 7842MD is a manual controller switch designed for motor disconnect applications. This switch operates at 40 amps and is rated for 600 volts. It features a double pole configuration and is suitable for single phase systems.

• Manual toggle actuator for easy use.
• Back and side wired connections for flexible installation.
• Suitable for commercial and industrial applications.

Product Highlights

This motor disconnect switch is made for reliable operation in various environments. Its robust design ensures long-lasting use.

Product Information

Standard Information

• Brand: Pass & Seymour
• Product Type: Manual Controller

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 40 A
• Number of Poles: 2
• Operating Cycles: 1000/50000
• Operating Temperature: Maximum +75 degrees C, Minimum -40 degrees C
• Size: 1.753 inches depth x 1.8255 inches width x 2.375 inches height
• Connection Type: Back/Side Wired
• Certifications: CULUS Listed
