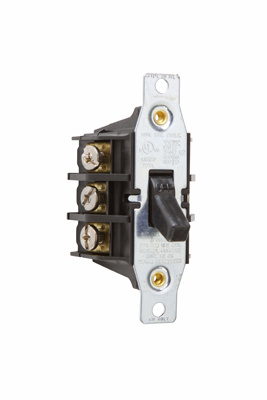

Pass & Seymour 7803MD 30A 3-Phase 3-Pole Manual Control Switch - Black

Product Description

The Pass & Seymour 7803MD is a 30 Amp, three-phase, three-pole manual control switch. It serves as a motor disconnect and is rated for ten kiloamps at six hundred volts. This device is designed to manage high horsepower applications, capable of handling up to twenty horsepower. It is suitable for both commercial and industrial use.

• High horsepower rating of twenty HP
• Constructed from glass-reinforced thermoplastic
• Gull-wing shaped brass terminal pressure clamps

Product Highlights

This switch is built for durability and reliability. Its heavy-duty zinc-plated steel strap enhances stability, while external screw-pressure-plate terminals make it compatible with ring terminals.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour / Legrand

Technical Specifications

• MPN: 7803MD
• Voltage: 120 Volt to 600 Volt
• Amperage: 30 Amp
• Number of Poles: 3 Pole
• Depth: 1.753 Inch
• Width: 1.825 Inch
• Height: 2.375 Inch
• Operating Temperature: -40 to 75 degrees C
• Certifications: UL 508, cULus
• Country of Origin: Mexico
