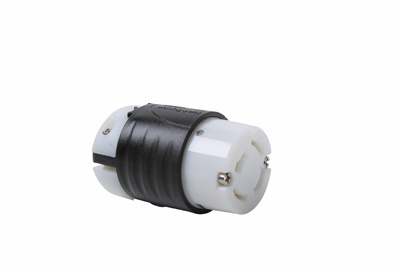

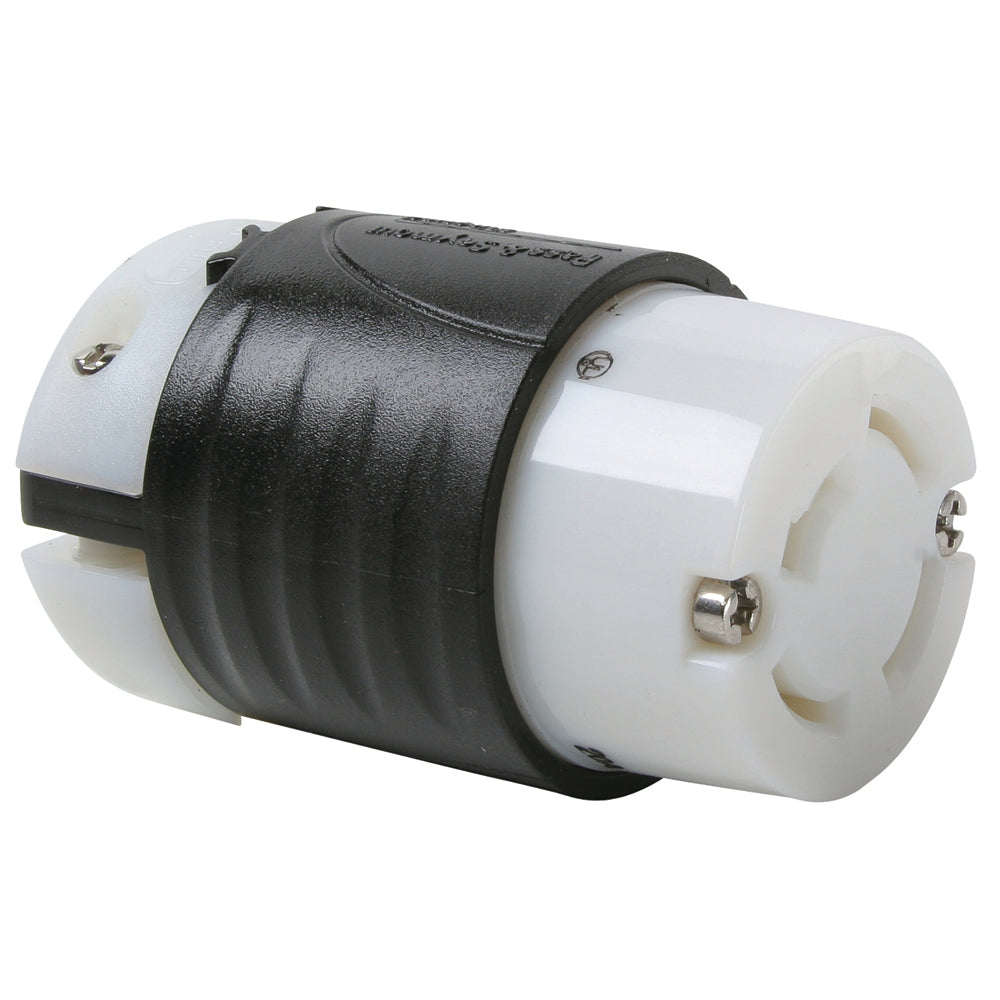

Pass & Seymour 7413-SS Turnlok Connector 20A 3-Phase 120/208 VAC

Product Description

The Pass & Seymour 7413-SS is a 3-Phase Locking Connector designed for use in demanding jobsite applications. This connector operates at 120/208 VAC with a 20 A current rating and features four wires and three poles. The thermoplastic construction offers durability and resistance to heat, making it suitable for industrial environments.

• Designed for industrial-grade applications
• Quick-thread assembly for easy setup
• Rated for 20A with a temperature range of -40 to 75 degrees Celsius

Product Highlights

The Pass & Seymour 7413-SS Turnlok Connector is engineered for reliability and safety in temporary power situations, providing effective protection against violations of electrical code by offering a robust, non-slip design.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• MPN: 7413SS
• Voltage Rating: 120/208 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Material: Thermoplastic
• Temperature Rating: -40 to 75 degrees Celsius
• Cord Diameter: 0.39 to 1.15 inches
• Dimensions: 2.2 inches diameter x 3.33 inches long
• Enclosure Rating: IP20
